2025 Kawasaki Mule SX™ 4x4 XC LE Control Diagram

← All diagrams

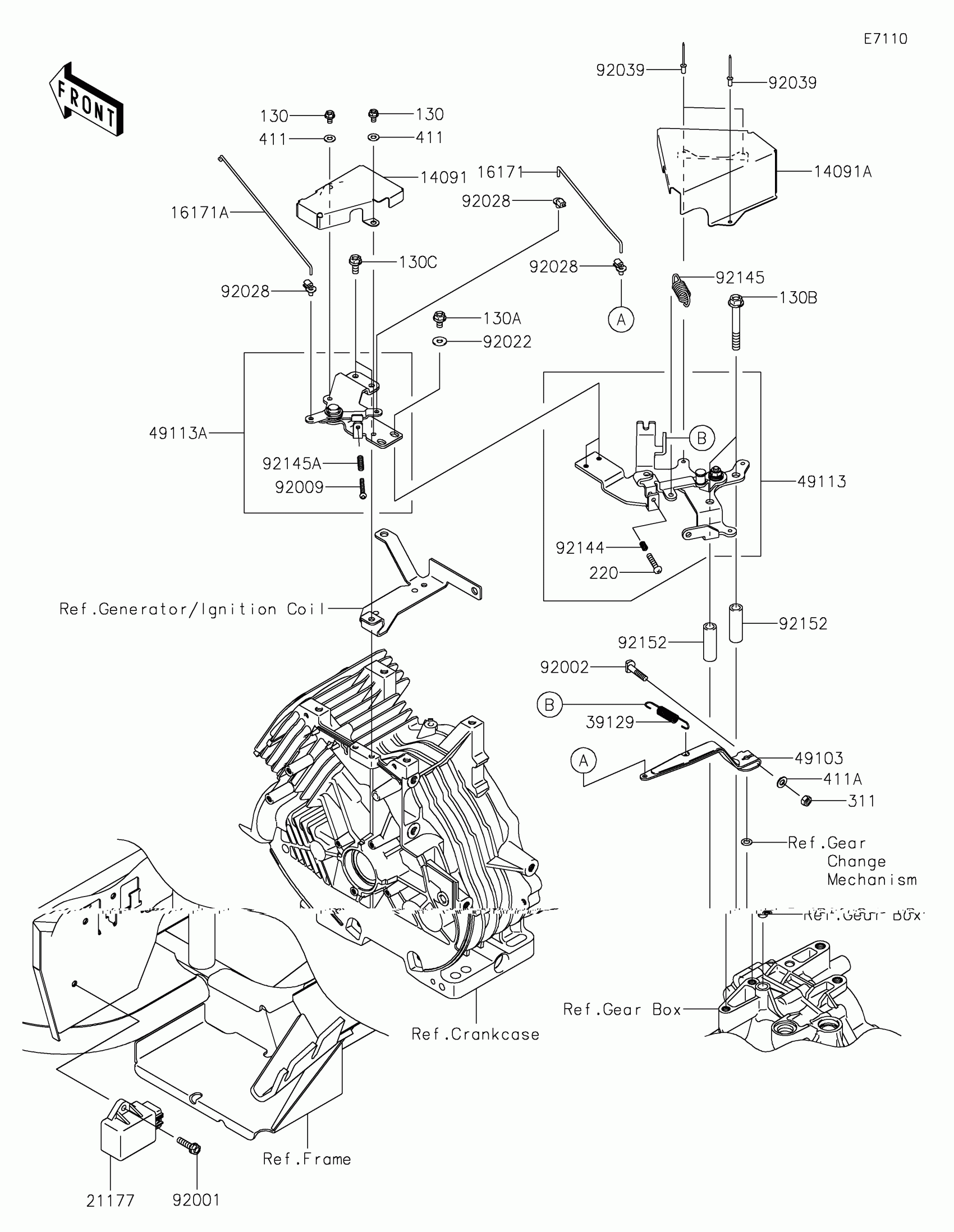

Find the part on the Control diagram for your 2025 Kawasaki Mule SX™ 4x4 XC LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Mule SX™ 4x4 XC LE Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,FR

14091-0401

1

$11.70

In stock

14091A

COVER,RR

14091-0402

1

$14.00

In stock

16171

LINK

16171-0007

1

$4.92

In stock

16171A

LINK,GOVERNOR

16171-0046

1

$12.66

In stock

21177

CONTROLLER

21177-0003

1

$151.65

In stock

39129

SPRING-GOVERNOR

39129-0006

1

$6.17

In stock

49103

ARM-GOVERNOR

49103-1055

1

$13.24

In stock

49113

PANEL-COMP-CONTROL

49113-0006

1

$91.09

In stock

49113A

PANEL-COMP-CONTROL

49113-0046

1

$27.50

In stock

92001

BOLT,FLANGED,6X22

92001-1352

1

$3.43

In stock

92002

BOLT,6X28

92002-2269

1
Out of stock

92009

SCREW,4X30

92009-7002

1
Out of stock

92022

WASHER,6.2X15X1.2

92022-2373

1
Out of stock

92028

BUSHING,GOVERNOR

92028-2156

1

$1.93

In stock

92039

RIVET,BLIND,4.0X9.2

92039-1163

1

$2.47

In stock

92144

SPRING

92144-2266

1

$3.80

In stock

92145

SPRING,RETURN

92145-0301

1

$4.44

In stock

92145A

SPRING

92145-7005

1

$0.90

In stock

92152

COLLAR,9.1X13.95X42

92152-7501

1
Out of stock

130

BOLT-FLANGED,5X8

130BA0508

1

$1.53

In stock

130A

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130B

BOLT-FLANGED,8X60

130BA0860

1

$1.44

In stock

130C

BOLT-FLANGED,6X14

130BB0614

1

$1.84

In stock

220

1

$0.78

In stock

311

NUT-HEX,6MM

311AA0600

1

$0.93

In stock

411

WASHER-PLAIN,5MM

411AA0500

1

$0.59

In stock

411A

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
