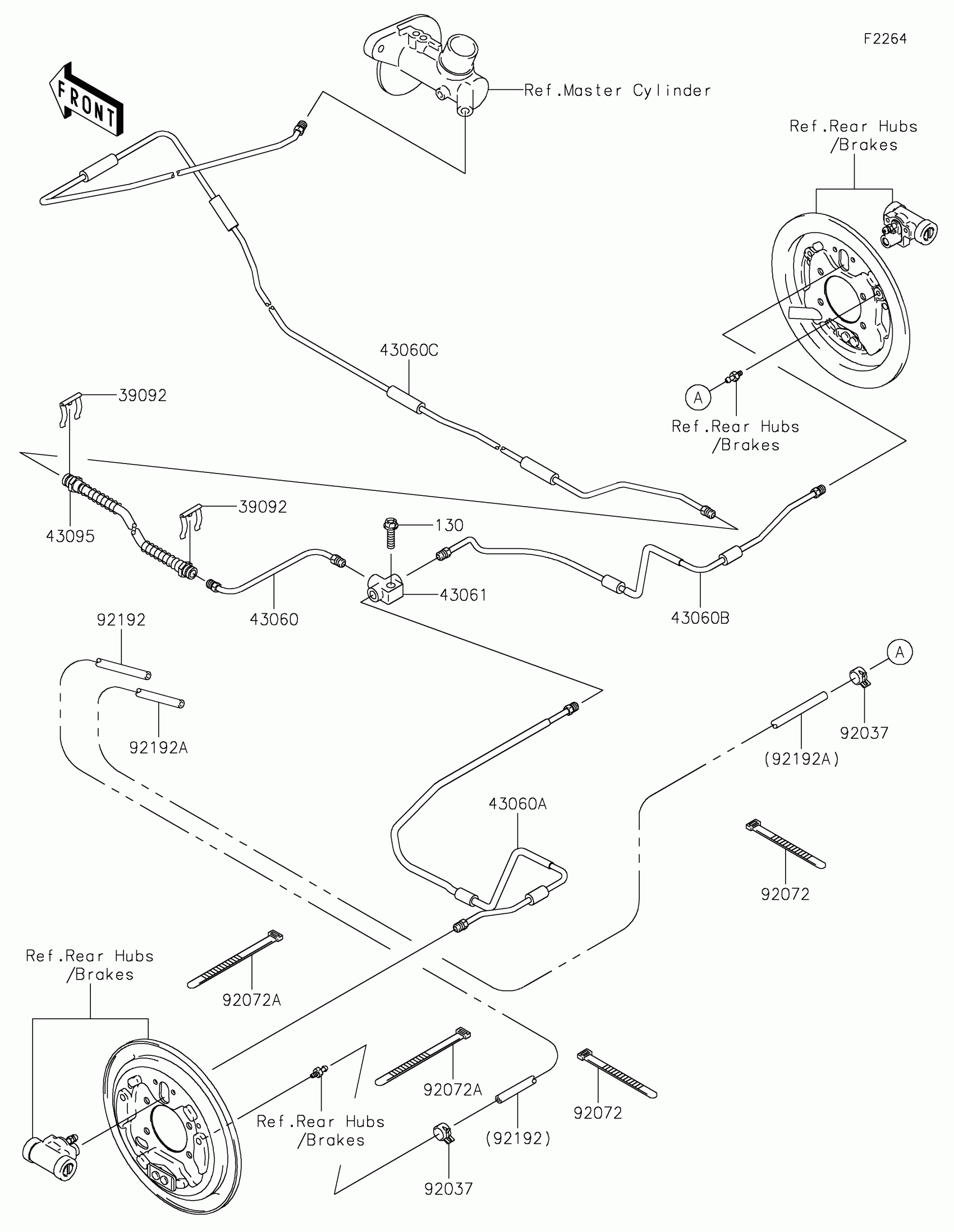

Kawasaki MULE SX™ 4x4 XC LE Rear Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$7.95

43060

PIPE-BRAKE,RR,CNT

43060-0006

$26.91

43060A

PIPE-BRAKE,M/CYLINDER

43060-0327

$76.55

43060B

PIPE-BRAKE,RR,LH

43060-0337

$55.21

43060C

PIPE-BRAKE,RR,RH

43060-0338

$37.51

43061

JOINT-BRAKE

43061-1063

$47.61

43095

HOSE-BRAKE,RR

43095-1765

$28.57

92037

CLAMP

92037-1601

$12.92

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92192

TUBE,4.7X9.5X1320

92192-0103

$9.87

92192A

TUBE,4.7X9.5X1760

92192-0176

$13.01

130

BOLT-FLANGED,8X30

130CA0830

$1.08
