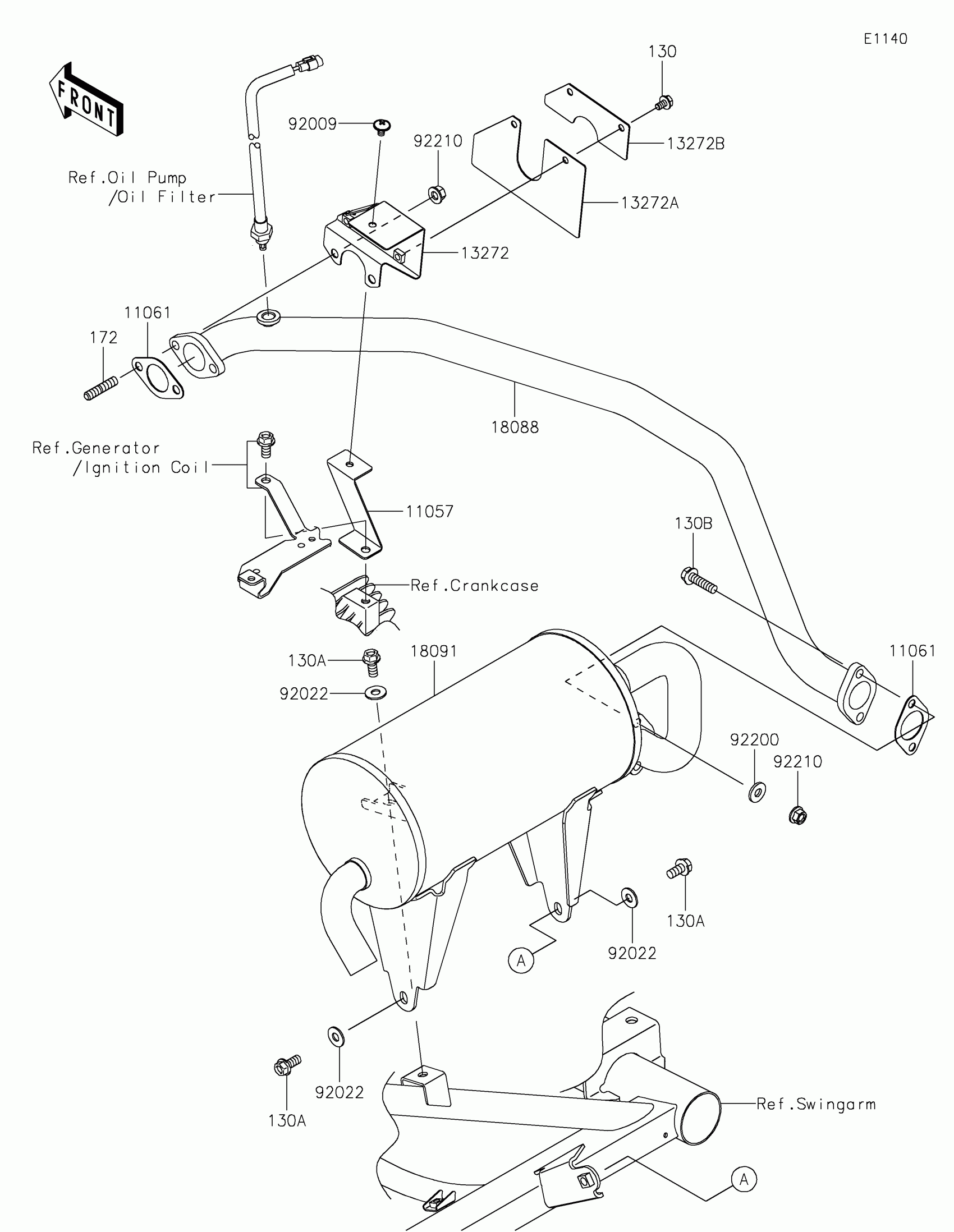

Kawasaki MULE SX™ 4x4 XC LE Muffler(s) Diagram

Description

Price

11057

BRACKET

11057-1829

$7.96

11061

GASKET

11061-0132

$1.84

13272

PLATE

13272-2621

$7.56

13272A

PLATE

13272-2622

$7.56

13272B

PLATE

13272-2623

$7.56

18088

PIPE-EXHAUST

18088-1402

$111.56

18091

BODY-COMP-MUFFLER

18091-0884

$295.91

92009

SCREW,6X10

92009-1661

$4.31

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92200

WASHER,8.5X18X2.3

92200-1213

$2.64

92210

NUT,8MM

92210-1456

$1.71

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,8X16

130CA0816

$2.49

130B

BOLT-FLANGED,8X30

130CD0830

$2.55

172

BOLT-STUD,8X22

172BA0822

$2.18
