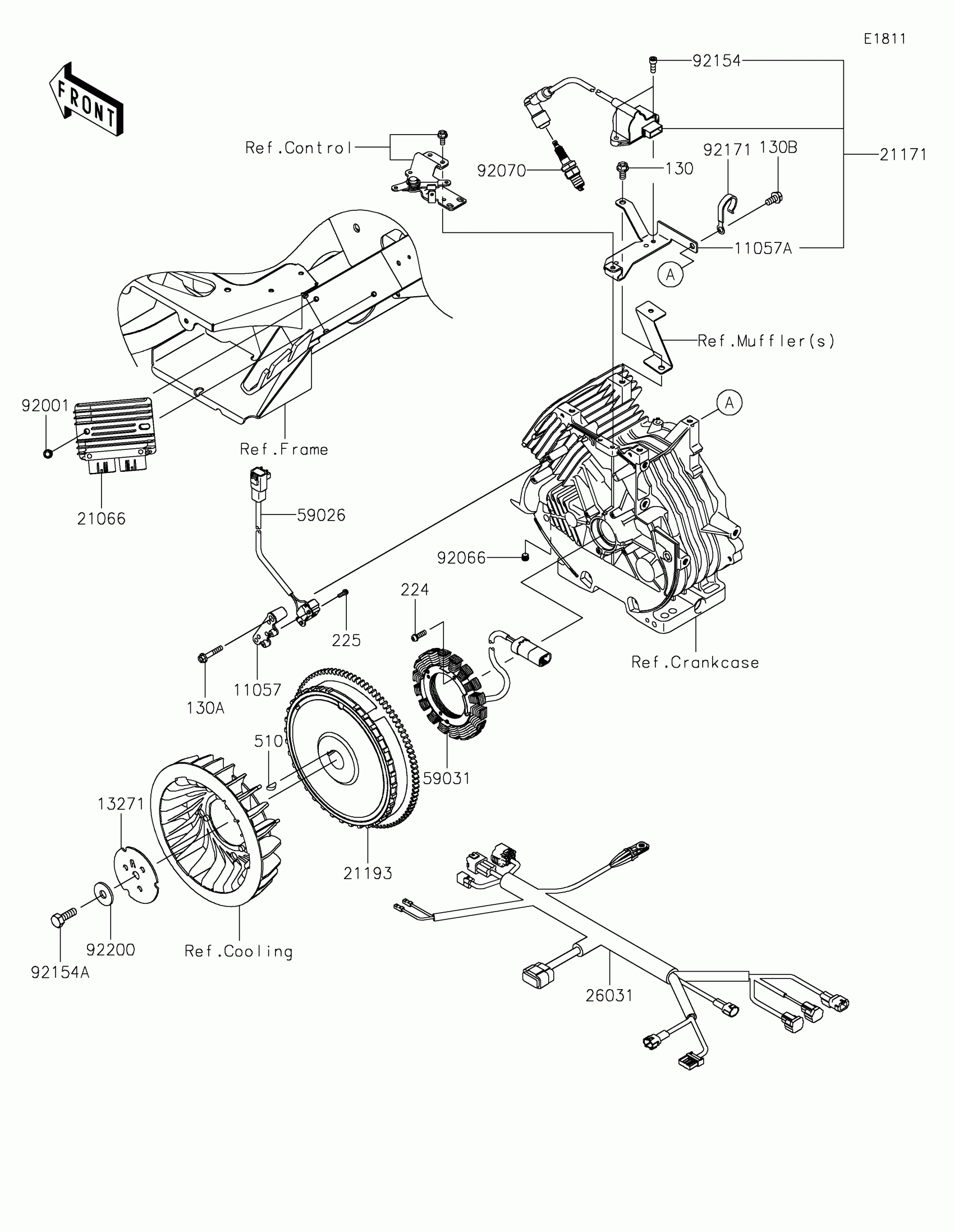

Kawasaki MULE SX™ 4x4 XC LE Generator/Ignition Coil Diagram

Description

Price

11057

BRACKET

11057-1547

$10.17

11057A

BRACKET,COIL-ASSY-IGNITION

11057-1551

$47.86

13271

PLATE,FAN

13271-7029

$3.03

21066

REGULATOR-VOLTAGE

21066-0767

$160.56

21171

COIL-ASSY-IGNITION

21171-0755

$112.76

21193

FLYWHEEL-ASSY

21193-0711

$183.02

26031

HARNESS,SUB

26031-2618

$95.59

59026

COIL-PULSING

59026-0557

$60.47

59031

COIL-CHARGING

59031-0014

$73.98

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92066

PLUG

92066-0881

$3.93

92070

PLUG-SPARK,BPR5ES(NGK),SOLID

92070-2088

$4.40

92154

BOLT

92154-3735

$1.65

92154A

BOLT,12X30

92154-7003

$4.33

92171

CLAMP

92171-7005

$6.75

92200

WASHER

92200-7002

$2.31

130

BOLT-FLANGED,8X16

130AA0816

$0.85

130A

BOLT-FLANGED,6X35

130BA0635

$0.94

130B

BOLT-FLANGED,8X16

130BA0816

$1.12

224

SCREW-PAN-WP-CROS,5X25

224AA0525

$1.69

225

SCREW-PAN-WSP-CROS,4X14

225AA0414

$0.68

510

WOODRUFF KEY

510A5100

$2.70
