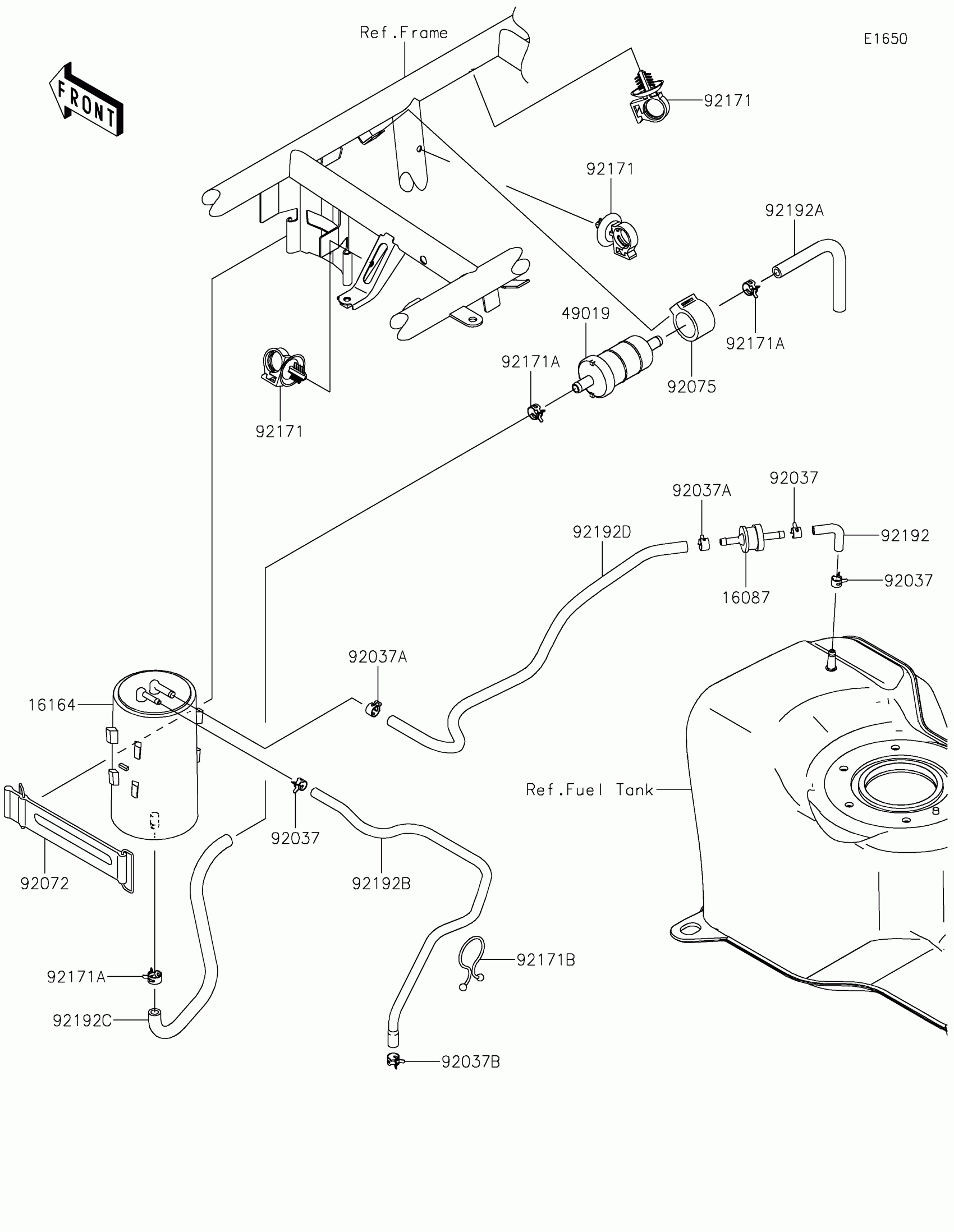

Kawasaki MULE SX™ 4x4 XC LE Fuel Evaporative System Diagram

Description

Price

16087

VALVE-CHECK

16087-0008

$37.65

16164

CANISTER

16164-0018

$207.32

49019

FILTER-FUEL

49019-0032

$22.97

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP,TUBE

92037-1505

$4.76

92037B

CLAMP

92037-2113

$1.03

92072

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-0515

$6.38

92171B

CLAMP

92171-1185

$2.46

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.87

92192A

TUBE,FILTER-AIR

92192-0609

$6.10

92192B

TUBE,CANISTER-DUCT

92192-1027

$10.78

92192C

TUBE,CANISTER-FILTER

92192-1639

$5.59

92192D

TUBE,VALVE-CANISTER

92192-1641

$9.72
