2025 Kawasaki Mule SX™ 4x4 XC LE Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki Mule SX™ 4x4 XC LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

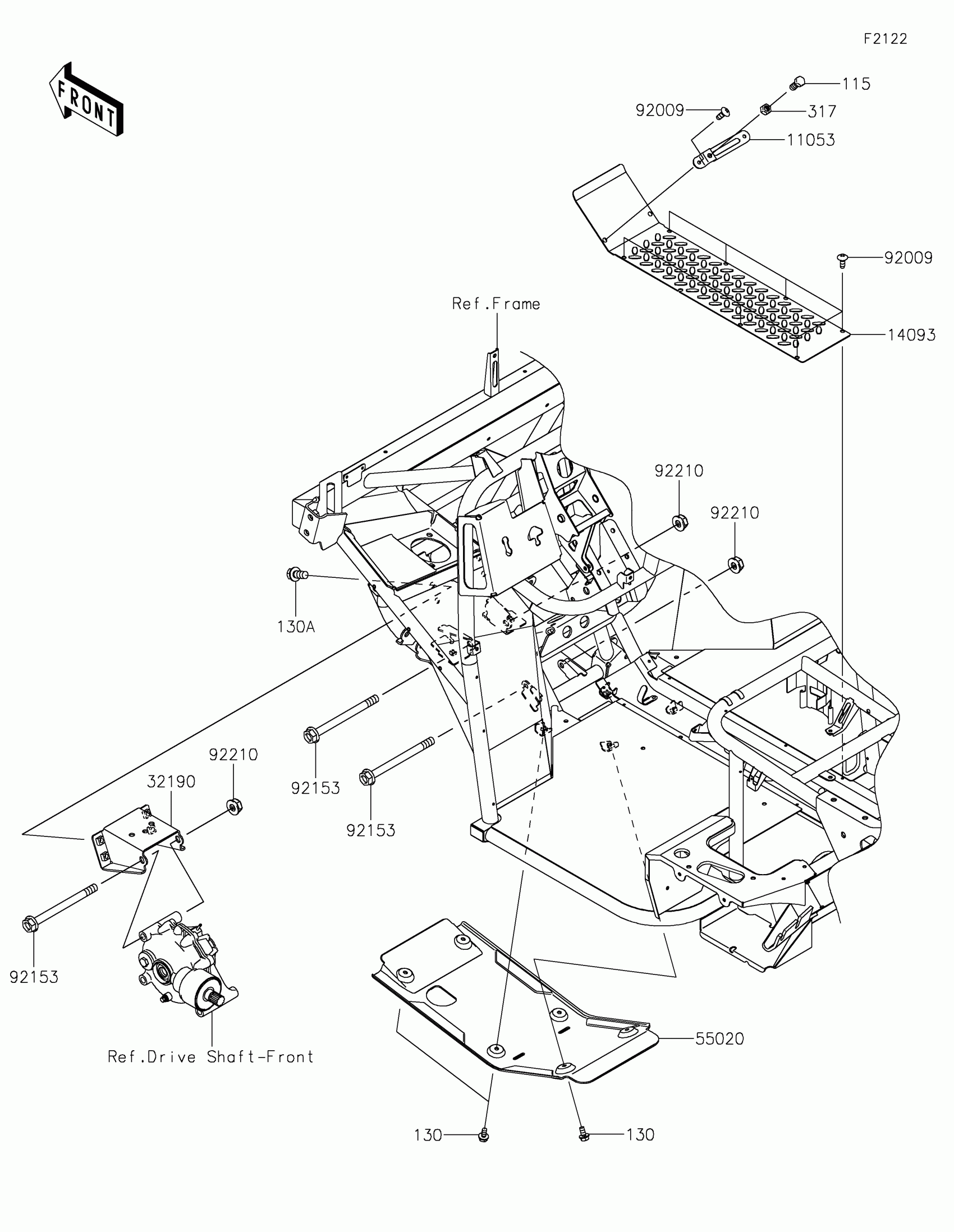

2025 Kawasaki Mule SX™ 4x4 XC LE Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

1

$7.44

In stock

14093

COVER,FLOOR,CNT

14093-0469

1

$99.89

In stock

32190

BRACKET-ENGINE

32190-0639

1

$24.66

In stock

55020

GUARD,FRONT DIFF

55020-0165

1

$59.17

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92153

BOLT,FLANGED,10X120

92153-7502

1

$8.19

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

115

1

$4.37

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,10X20

130BA1020

1

$2.68

In stock

317

NUT-HEX-SMALL,8MM

317BA0800

1

$1.44

In stock
