2025 Kawasaki Mule SX™ 4x4 XC LE Cooling Diagram

← All diagrams

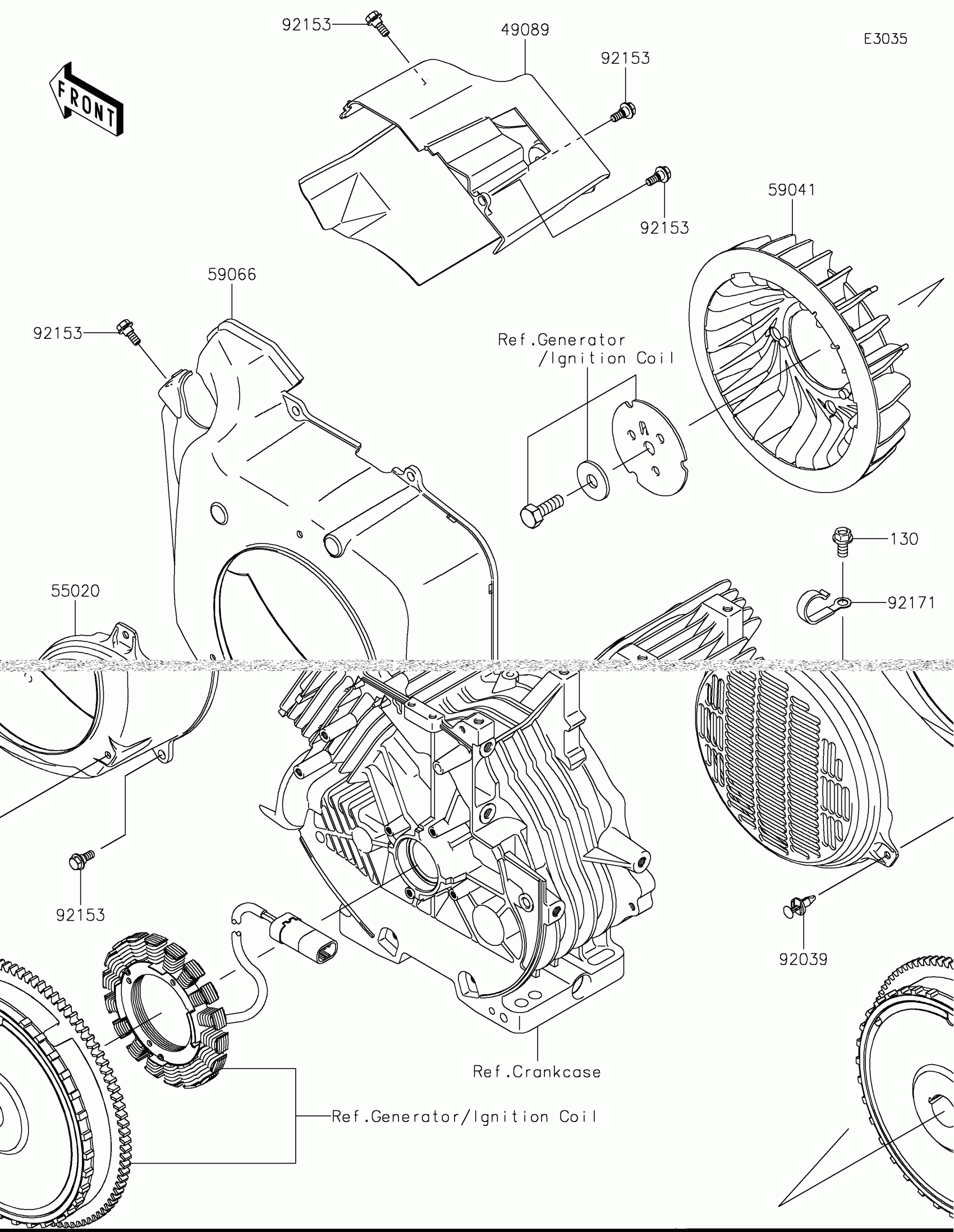

Find the part on the Cooling diagram for your 2025 Kawasaki Mule SX™ 4x4 XC LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Mule SX™ 4x4 XC LE Cooling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49089

SHROUD-ENGINE

49089-7089

1

$5.20

In stock

55020

GUARD

55020-2267

1

$6.33

In stock

59041

FAN

59041-0019

1

$15.71

In stock

59066

HOUSING-FAN

59066-7059

1

$60.37

In stock

92039

RIVET,GUARD

92039-0751

1

$0.88

In stock

92153

BOLT,FLANGED,6X16

92153-7007

1

$2.92

In stock

92171

CLAMP

92171-7005

1

$5.85

In stock

130

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock
