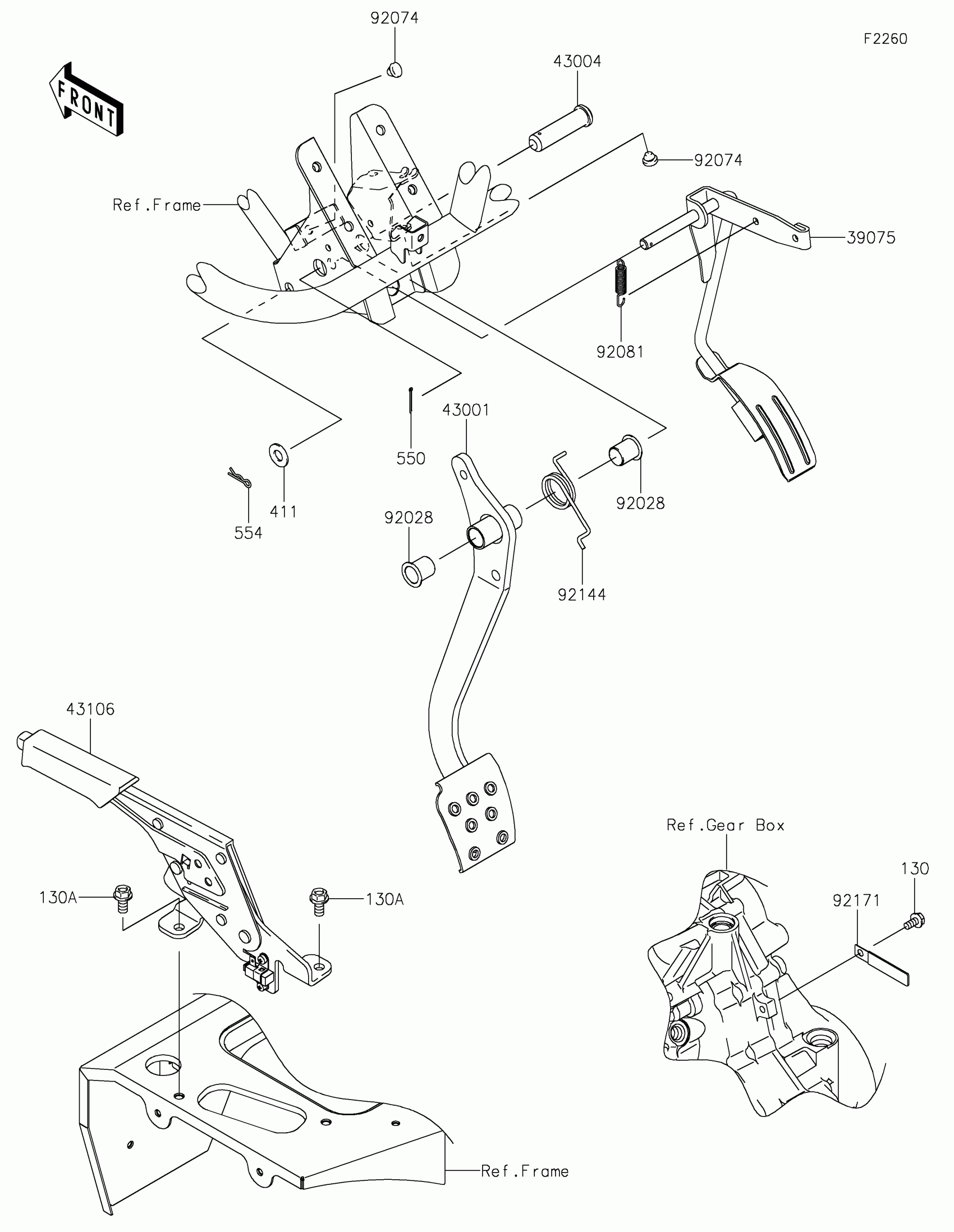

Kawasaki MULE SX™ 4x4 XC LE Brake Pedal/Throttle Lever Diagram

Description

Price

39075

LEVER-THROTTLE

39075-0022

$26.24

43001

LEVER-BRAKE,PEDAL

43001-0751

$41.40

43004

SHAFT-BRAKE

43004-1128

$16.64

43106

LEVER-ASSY-PARKING BRAKE

43106-0009

$110.93

92028

BUSHING

92028-1571

$10.27

92074

PLUG,7X2

92074-028

$3.81

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$4.64

92144

SPRING

92144-1536

$6.33

92171

CLAMP,L=60

92171-0652

$1.85

130

BOLT-FLANGED,6X12

130AA0612

$0.63

130A

BOLT-FLANGED,8X16

130CA0816

$1.77

411

WASHER-PLAIN,10MM

411AA1000

$0.81

550

PIN-COTTER,2.5X25

550AA2525

$1.05

554

PIN-SNAP,10MM

554DA1000

$0.73
