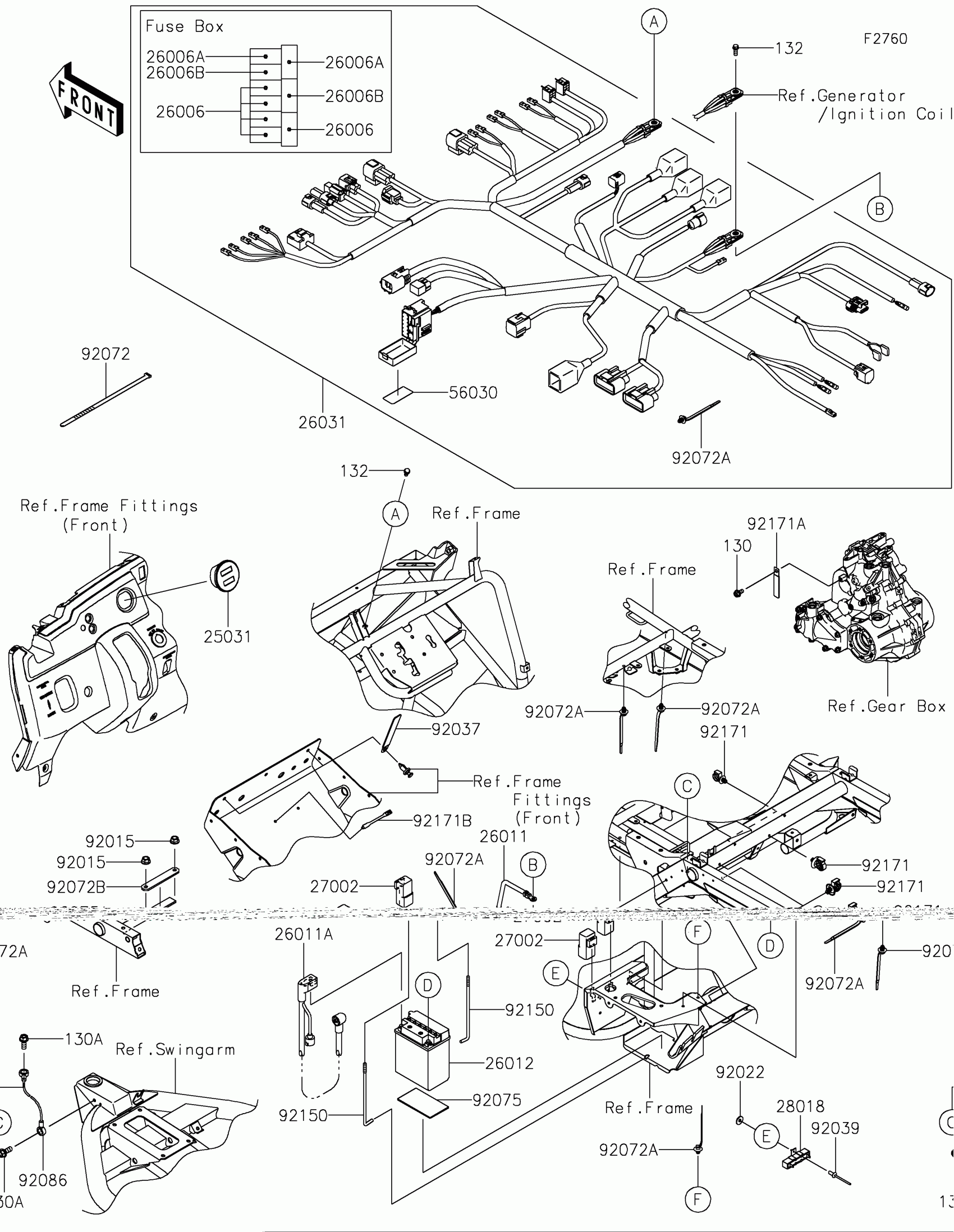

Kawasaki MULE SX™ 4x4 XC FI Chassis Electrical Equipment Diagram

Description

Price

25031

METER-ASSY

25031-0829

$111.46

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26011

WIRE-LEAD,BATTERY(-)

26011-0923

$46.16

26011A

WIRE-LEAD,BATTERY(+)

26011-0924

$75.18

26012

BATTERY,YB14A-A2,12V 14AH

26012-1446

$100.28

26031

HARNESS,MAIN

26031-2413

$256.10

27002

RELAY-ASSY

27002-1088

$42.06

28018

RESISTOR

28018-0005

$29.36

56030

LABEL,FUSE BOX

56030-1361

$2.94

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER,4.3X12.5X1

92022-1949

$3.60

92037

CLAMP,HARNESS,L=100

92037-1636

$7.68

92039

RIVET,BLIND,4.0X9.2

92039-1163

$3.07

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072B

BAND,BATTERY

92072-7507

$12.90

92075

DAMPER

92075-1076

$8.86

92075A

DAMPER

92075-1214

$4.39

92086

WIRE

92086-1054

$26.20

92150

BOLT,BATTERY

92150-1293

$10.65

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP,L=60

92171-0652

$2.61

92171B

CLAMP

92171-1365

$4.20

130

BOLT-FLANGED,6X12

130AA0612

$0.68

130A

BOLT-FLANGED,8X20

130BA0820

$4.14

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
