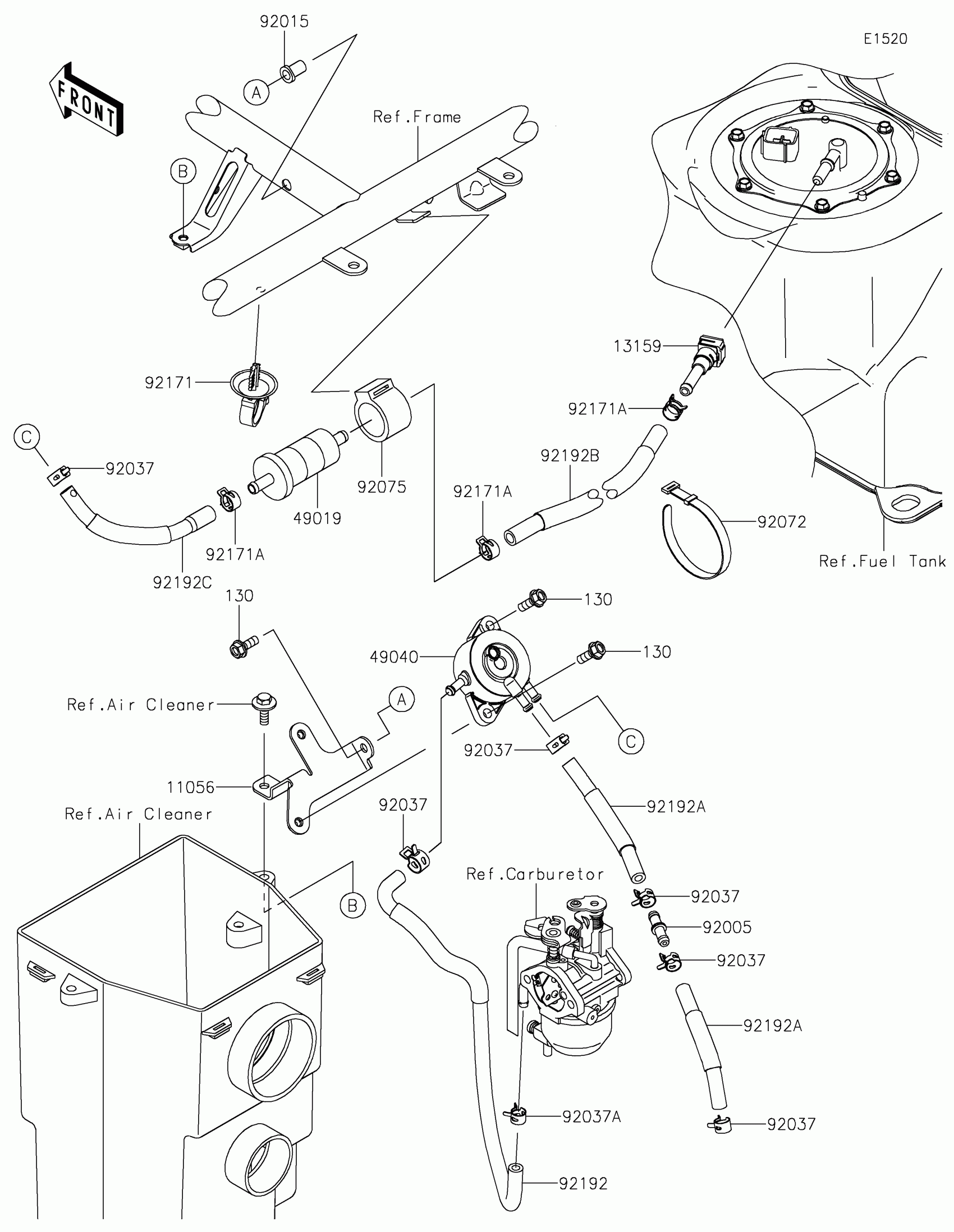

Kawasaki MULE SX™ 4x4 XC CAMO Fuel Pump Diagram

Description

Price

11056

BRACKET,PUMP-FUEL

11056-4297

$7.81

13159

CONNECTOR

13159-0022

$24.80

49019

FILTER-FUEL

49019-1055

$22.97

49040

PUMP-FUEL

49040-7001

$35.57

92005

FITTING

92005-0856

$20.99

92015

NUT,POP,6MM

92015-1759

$5.00

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-2113

$1.03

92072

BAND,L=186

92072-056

$5.00

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-0515

$6.38

92192

TUBE,CARB.-PUMP FUEL

92192-0826

$58.04

92192A

TUBE,CRAB.INSULATOR-PUMP

92192-1613

$6.39

92192B

TUBE,TANK-FUEL FILTER

92192-1689

$41.81

92192C

TUBE,FUEL FILTER-FUEL PUMP

92192-1750

$39.94

130

BOLT-FLANGED,6X16

130BA0616

$1.20
