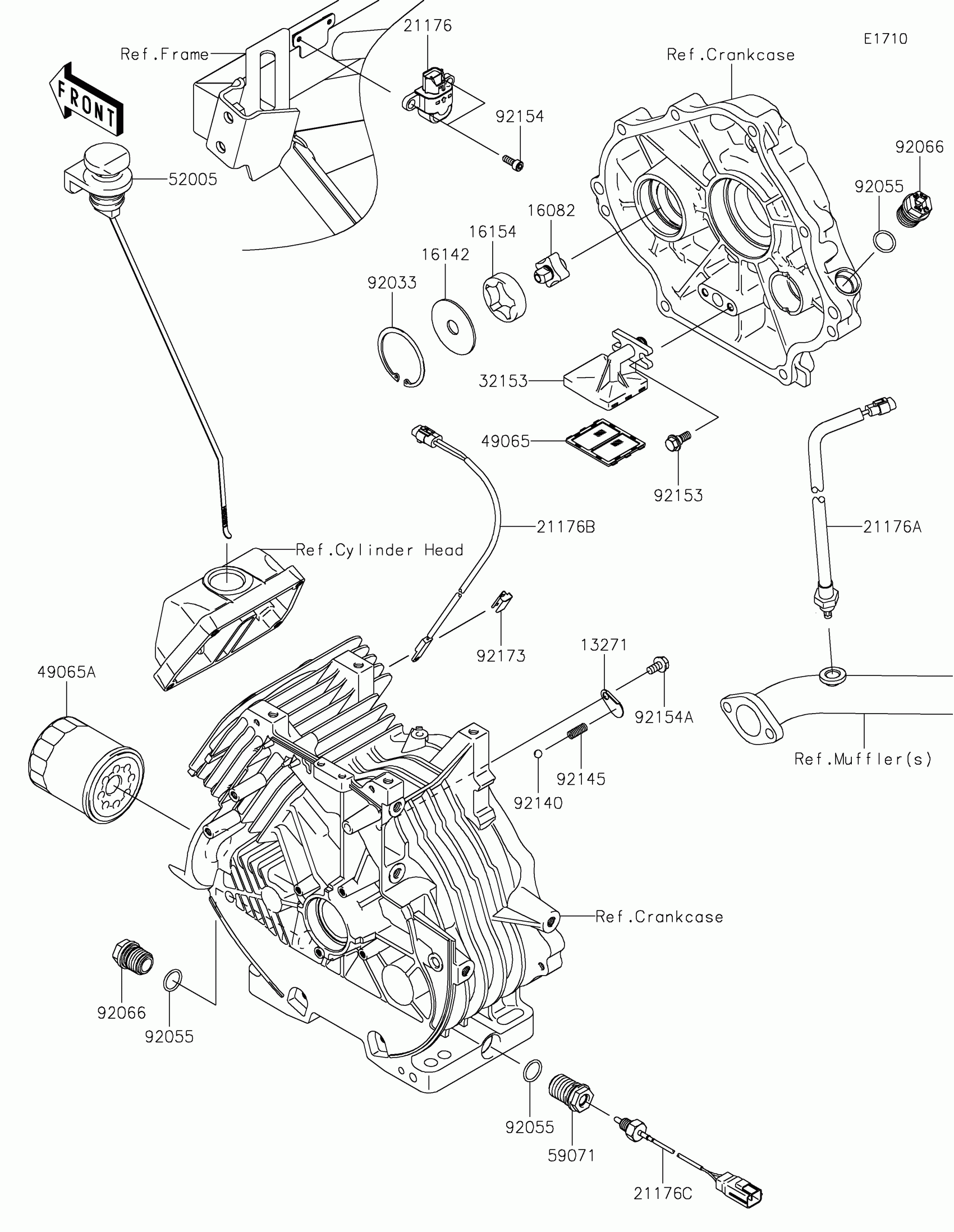

Kawasaki MULE SX™ 4x4 XC CAMO FI Oil Pump/Oil Filter Diagram

Description

Price

13271

PLATE,OIL RELIEF

13271-7026

$0.78

16082

PUMP-ASSY-OIL

16082-0760

$12.27

16142

COVER-PUMP

16142-0745

$2.71

16154

ROTOR-PUMP,OUT

16154-2054

$6.31

21176

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176A

SENSOR,OXYGEN

21176-0873

$183.70

21176B

SENSOR,TEMP

21176-0879

$12.88

21176C

SENSOR,OIL TEMP

21176-2108

$104.78

32153

PIPE

32153-7002

$3.26

49065

FILTER-OIL

49065-0717

$2.61

49065A

FILTER-OIL

49065-7010

$7.94

52005

GAUGE,OIL LEVEL

52005-7020

$23.23

59071

JOINT,SENSOR

59071-0745

$4.08

92033

RING-SNAP

92033-7008

$1.89

92055

RING-O,15.8X2.4

92055-0892

$0.44

92066

PLUG

92066-0774

$3.67

92140

BALL

92140-7001

$0.90

92145

SPRING,OIL RELIEF

92145-1807

$1.05

92153

BOLT,FLANGED,6X16

92153-7007

$2.74

92154

BOLT,SOCKET,5X14

92154-1841

$1.20

92154A

BOLT,6X12

92154-2938

$0.54

92173

CLAMP,TEMP SENSOR

92173-1905

$2.25
