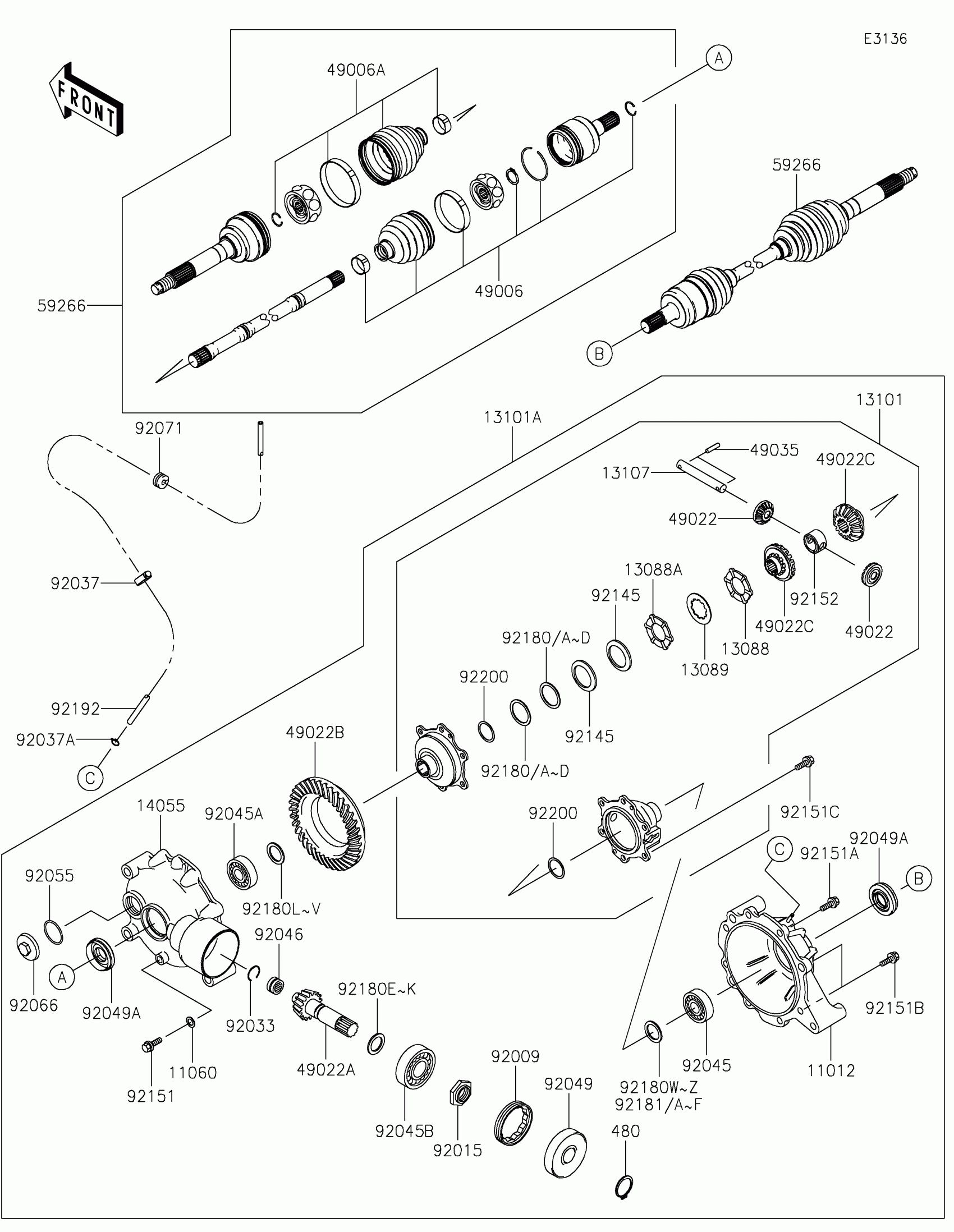

Kawasaki MULE SX™ 4x4 XC CAMO FI Drive Shaft-Front Diagram

#

Description
Price

11012

CAP,DRIVE SHAFT

11012-1955

$167.00

11060

GASKET

11060-1735

$1.87

13088

PLATE-FRICTION

13088-0008

$11.00

13088A

PLATE-FRICTION

13088-0009

$8.72

13089

PLATE-CLUTCH

13089-1118

$6.46

13101

GEAR-ASSY

13101-0047

$859.17

13101A

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0112

$1,750.82

13107

SHAFT

13107-1369

$36.26

14055

CASE-GEAR

14055-1129

$207.34

49006

BOOT,DOJ

49006-0074

$96.45

49006A

BOOT,UJ

49006-0105

$89.15

49022

GEAR-BEVEL

49022-0017

$97.02

49022A

GEAR-BEVEL

49022-1147

$370.50

49022B

GEAR-BEVEL

49022-1148

$410.53

49022C

GEAR-BEVEL

49022-1153

$168.97

49035

PIN-SPRING

49035-1065

$2.72

59266

JOINT-BALL,FR

59266-0039

$710.60

92009

SCREW,LOCK

92009-1762

$11.07

92015

NUT,LOCK

92015-1992

$17.34

92033

RING-SNAP

92033-1289

$2.02

92037

CLAMP,HOSE

92037-1827

$5.69

92037A

CLAMP

92037-1835

$4.85

92045

BEARING-BALL

92045-0147

$41.62

92045A

BEARING-BALL

92045-1331

$34.90

92045B

BEARING-BALL

92045-1332

$85.99

92046

BEARING-NEEDLE

92046-1248

$13.47

92049

SEAL-OIL

92049-1454

$10.44

92049A

SEAL-OIL

92049-1455

$8.58

92055

RING-O,OIL FILLER

92055-1553

$3.01

92066

PLUG,OIL FILLER

92066-1441

$9.14

92071

GROMMET

92071-0012

$3.48

92145

SPRING

92145-1053

$9.81

92151

BOLT,SEALING

92151-1051

$3.56

92151A

BOLT,FLANGED

92151-1052

$5.42

92151B

BOLT,FLANGED

92151-1053

$5.42

92151C

BOLT

92151-1054

$5.42

92152

COLLAR

92152-0145

$25.56

92180

SHIM,T=1.0

92180-1214

Unavailable

92180A

SHIM,T=1.2

92180-1215

Unavailable

92180B

SHIM,T=1.4

92180-1216

Unavailable

92180C

SHIM,T=1.6

92180-1217

Unavailable

92180D

SHIM,T=1.8

92180-1218

Unavailable

92180E

SHIM,26X34X1.82

92180-1219

Unavailable

92180F

SHIM,26X34X1.88

92180-1220

Unavailable

92180G

SHIM,26X34X1.94

92180-1221

Unavailable

92180H

SHIM,26X34X2.00

92180-1222

Unavailable

92180I

SHIM,26X34X2.06

92180-1223

Unavailable

92180J

SHIM,26X34X2.12

92180-1224

Unavailable

92180K

SHIM,26X34X2.18

92180-1225

Unavailable

92180L

SHIM,T=1.75

92180-1231

Unavailable

92180M

SHIM,T=1.80

92180-1232

Unavailable

92180N

SHIM,T=1.85

92180-1233

Unavailable

92180O

SHIM,T=1.90

92180-1234

Unavailable

92180P

SHIM,T=1.95

92180-1235

Unavailable

92180Q

SHIM,T=2.00

92180-1236

Unavailable

92180R

SHIM,T=2.05

92180-1237

Unavailable

92180S

SHIM,T=2.10

92180-1238

Unavailable

92180T

SHIM,T=2.15

92180-1239

Unavailable

92180U

SHIM,T=2.20

92180-1240

Unavailable

92180V

SHIM,T=2.25

92180-1241

Unavailable

92180W

SHIM,T=0.75

92180-1254

Unavailable

92180X

SHIM,T=0.80

92180-1255

Unavailable

92180Y

SHIM,T=0.85

92180-1256

Unavailable

92180Z

SHIM,T=0.90

92180-1257

Unavailable

92181

SHIM,T=0.95

92180-1258

Unavailable

92181A

SHIM,T=1.00

92180-1259

Unavailable

92181B

SHIM,T=1.05

92180-1260

Unavailable

92181C

SHIM,T=1.10

92180-1261

Unavailable

92181D

SHIM,T=1.15

92180-1262

Unavailable

92181E

SHIM,T=1.20

92180-1263

Unavailable

92181F

SHIM,T=1.25

92180-1264

Unavailable

92192

TUBE,4X7X1100

92192-0165

$10.98

92200

WASHER

92200-1344

$7.24

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.81
