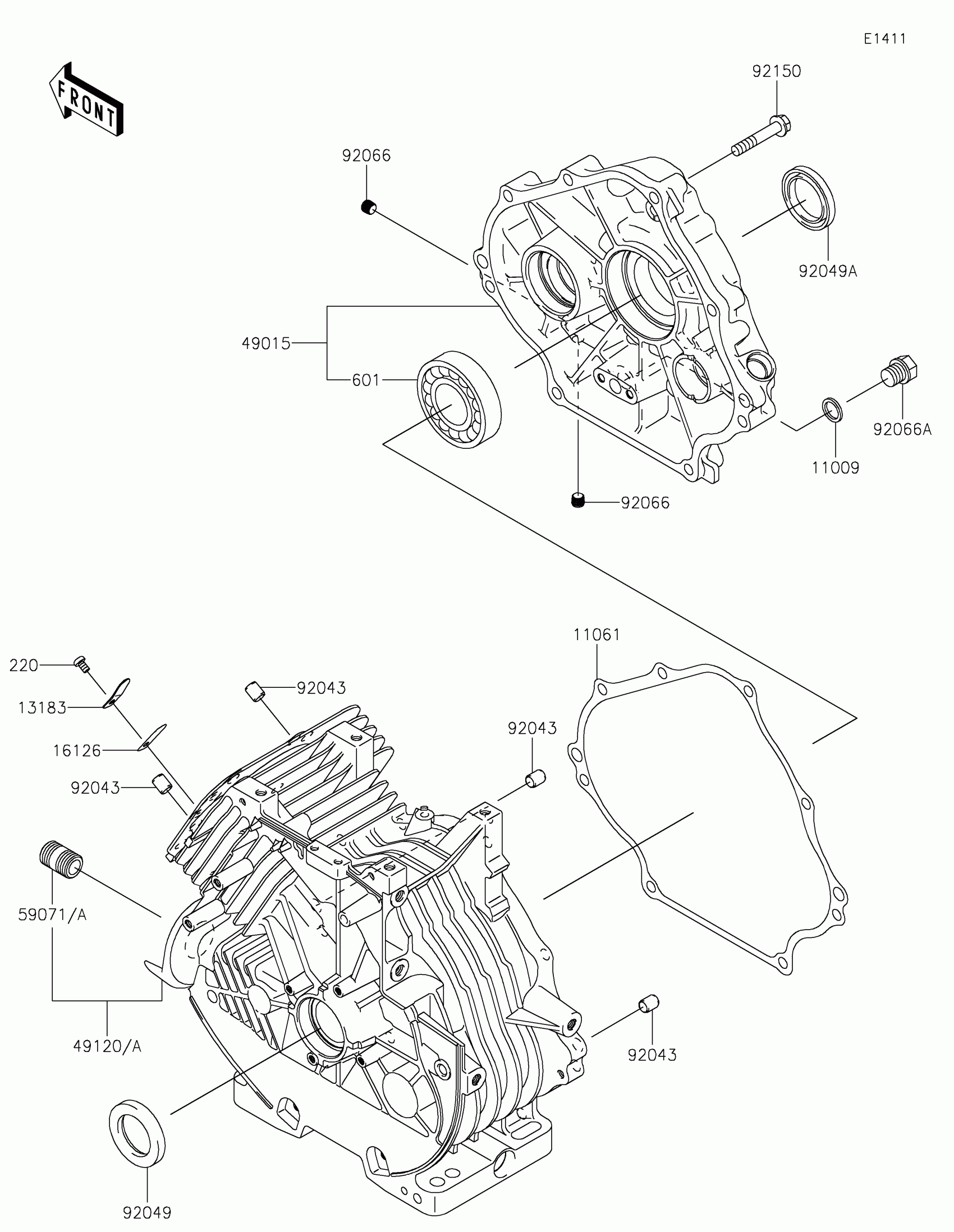

Kawasaki MULE SX™ 4x4 XC CAMO Crankcase Diagram

Description

Price

11009

GASKET

11009-2175

$1.14

11061

GASKET,COVER-CRANKCASE

11061-0798

$13.53

13183

PLATE

13183-2120

$0.43

16126

VALVE

16126-2146

$0.62

49015

COVER-CRANKCASE

49015-0038

$132.52

49120A

CRANKCASE-COMP

49120-6208

$410.41

59071

JOINT

59071-0733

$2.41

92043

92043-7001

$0.62

92049

SEAL-OIL,SD 35X48X8 R HS

92049-7010

$3.08

92049A

SEAL-OIL

92049-7018

$3.93

92066

PLUG

92066-0881

$3.93

92066A

PLUG,14X12

92066-2253

$1.82

92150

BOLT,8X45

92150-2252

$2.00

220

SCREW-PAN-CROS,5X8

220AA0508

$0.47

601

BEARING-BALL

601A6207

$19.53
