Description

Price

13107

SHAFT,FIRST,INPUT,16T&24T&19T

13107-0039

$266.16

13107A

SHAFT,SECOND,18T

13107-0078

$227.11

13107B

SHAFT,THIRD,16T

13107-0088

$266.16

13139

SHIFTER,FR/RR

13139-0004

$100.90

13262

GEAR,LOW,41T

13262-0106

$147.40

13262A

GEAR,HIGH,35T

13262-0107

$147.40

13262B

GEAR-TRANSMISSION SPUR,36T

13262-0108

$103.74

39135

SPROCKET-DRIVEN,30T

39135-0001

$134.58

59051

GEAR-SPUR,37T

59051-0049

$20.37

92026

SPACER,21.2X29X1.6

92026-1568

$7.98

92026A

SPACER,28.2X34.5X1.6

92026-1587

$4.18

92026B

SPACER,48.2X54.3X1.0

92026-1599

$6.18

92026C

SPACER,HI&LOW

92026-1600

$51.62

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

$36.04

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

$23.34

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

$20.02

92057

CHAIN,REVERSE,23RH302-38ASM

92057-0072

$44.07

92152

COLLAR,21.2X34.0X3.0

92152-0241

$7.83

92200

WASHER,28.2X40.0X1.6

92200-0090

$4.60

92200A

WASHER,28.5X34.0X1.5

92200-1240

$10.28

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

551

PIN DOWEL 3X8

551A0308

$0.56

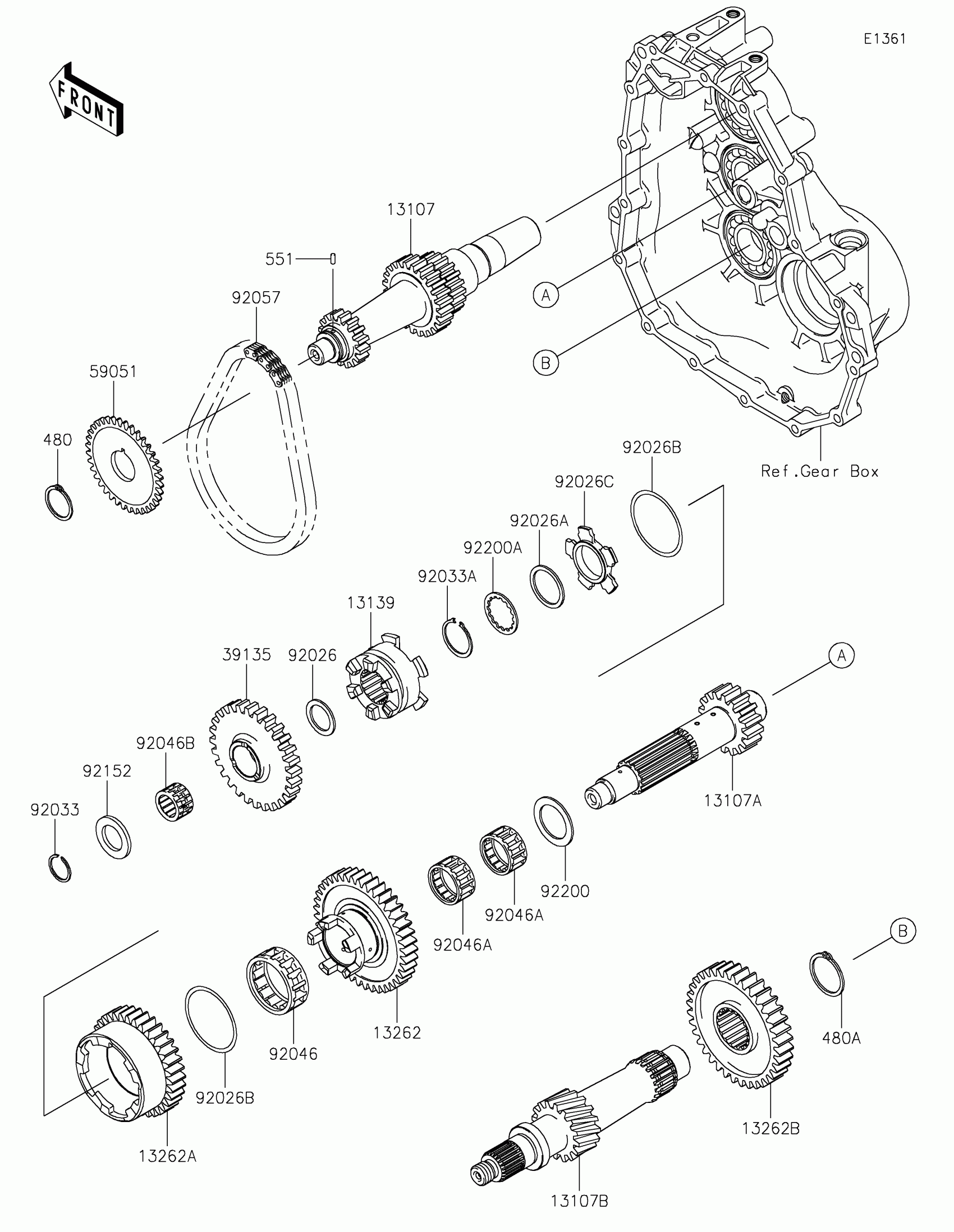

Kawasaki MULE SX™ 4x4 Transmission Diagram
