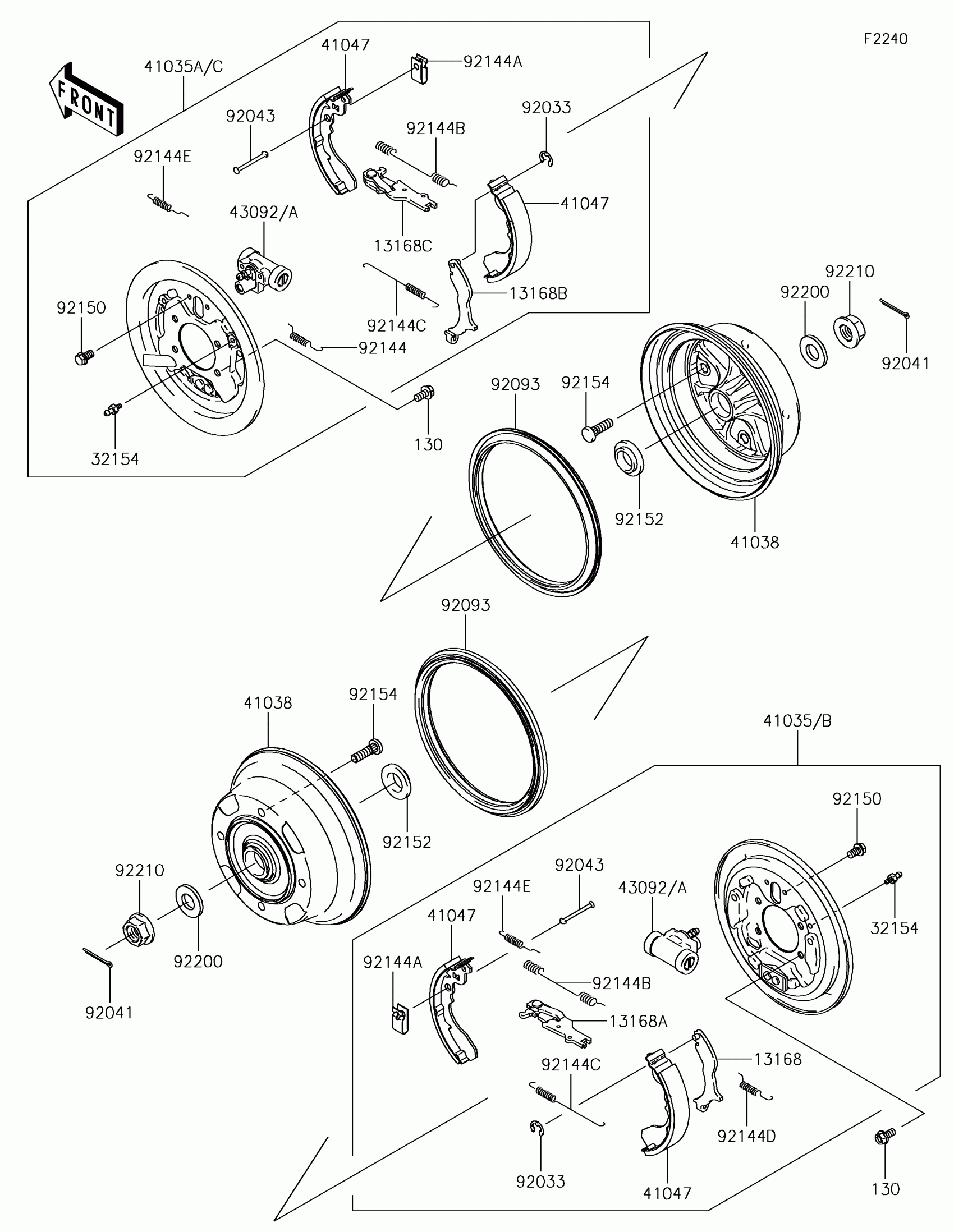

Kawasaki MULE SX™ 4x4 SE Rear Hubs/Brakes Diagram

Description

Price

13168

LEVER,BRAKE,LH

13168-0065

$15.48

13168A

LEVER,BRAKE,LH

13168-0066

$30.44

13168B

LEVER,BRAKE,RH

13168-0067

$15.48

13168C

LEVER,BRAKE,RH

13168-0068

$30.44

32154

PIPE

32154-0335

$12.86

41035

PANEL-ASSY-BRAKE,RR,LH

41035-0722

$503.04

41035A

PANEL-ASSY-BRAKE,RR,RH

41035-0723

$503.04

41038

DRUM,REAR BRAKE

41038-0018

$234.53

41047

SHOE-ASSY-BRAKE,RR

41047-7501

$30.54

43092A

CYLINDER,BRAKE

43092-0003

$121.95

92033

RING-SNAP

92033-1279

$3.54

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,SHOE HOLD

92043-1460

$4.87

92093

SEAL,BS184.8X13.5-1

92093-0031

$119.44

92144

SPRING,RH

92144-1608

$7.26

92144A

SPRING,SHOE HOLD

92144-1609

$7.60

92144B

SPRING,RETURN,UPP

92144-1612

$7.98

92144C

SPRING,RETURN,LWR

92144-1613

$7.98

92144D

SPRING,LH

92144-1614

$6.41

92144E

SPRING

92144-1615

$5.25

92150

BOLT,FLANGED,6X10

92150-1664

$4.39

92152

COLLAR

92152-0284

$7.83

92154

BOLT,10X34.6

92154-1482

$3.63

92200

WASHER,20.5X41.0X4.5

92200-1795

$3.26

92210

NUT,FLANGED,20MM

92210-2093

$11.17

130

BOLT-FLANGED,8X16

130CA0816

$2.49
