2019 Kawasaki Mule SX™ 4x4 SE Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2019 Kawasaki Mule SX™ 4x4 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

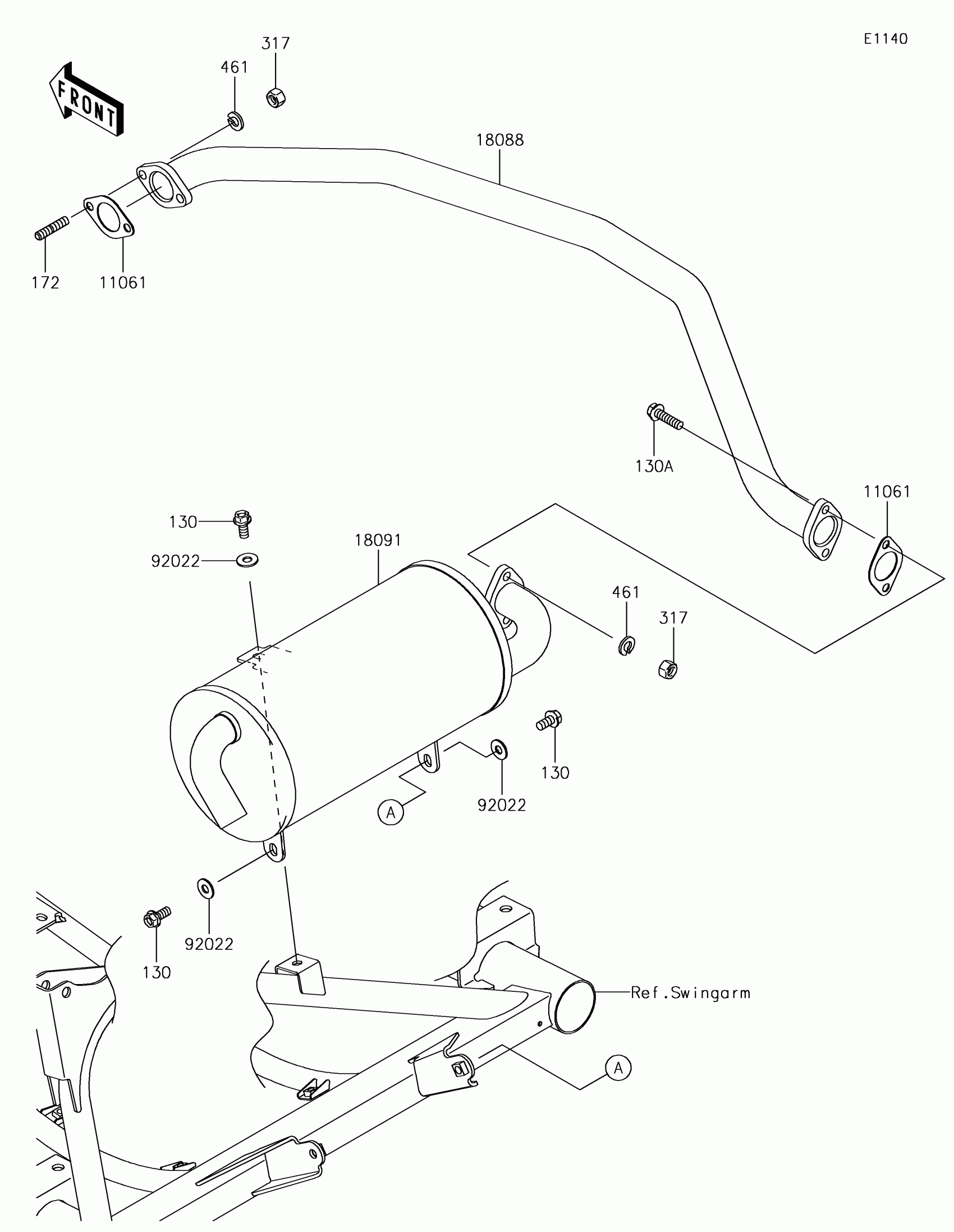

2019 Kawasaki Mule SX™ 4x4 SE Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0132

1
Out of stock

18088

PIPE-EXHAUST

18088-0191

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0487

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

130

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock

130A

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

172

BOLT-STUD,8X22

172BA0822

1
Out of stock

317

NUT

317R0800

1
Out of stock

461

WASHER-SPRING,8MM

461DA0800

1
Out of stock
