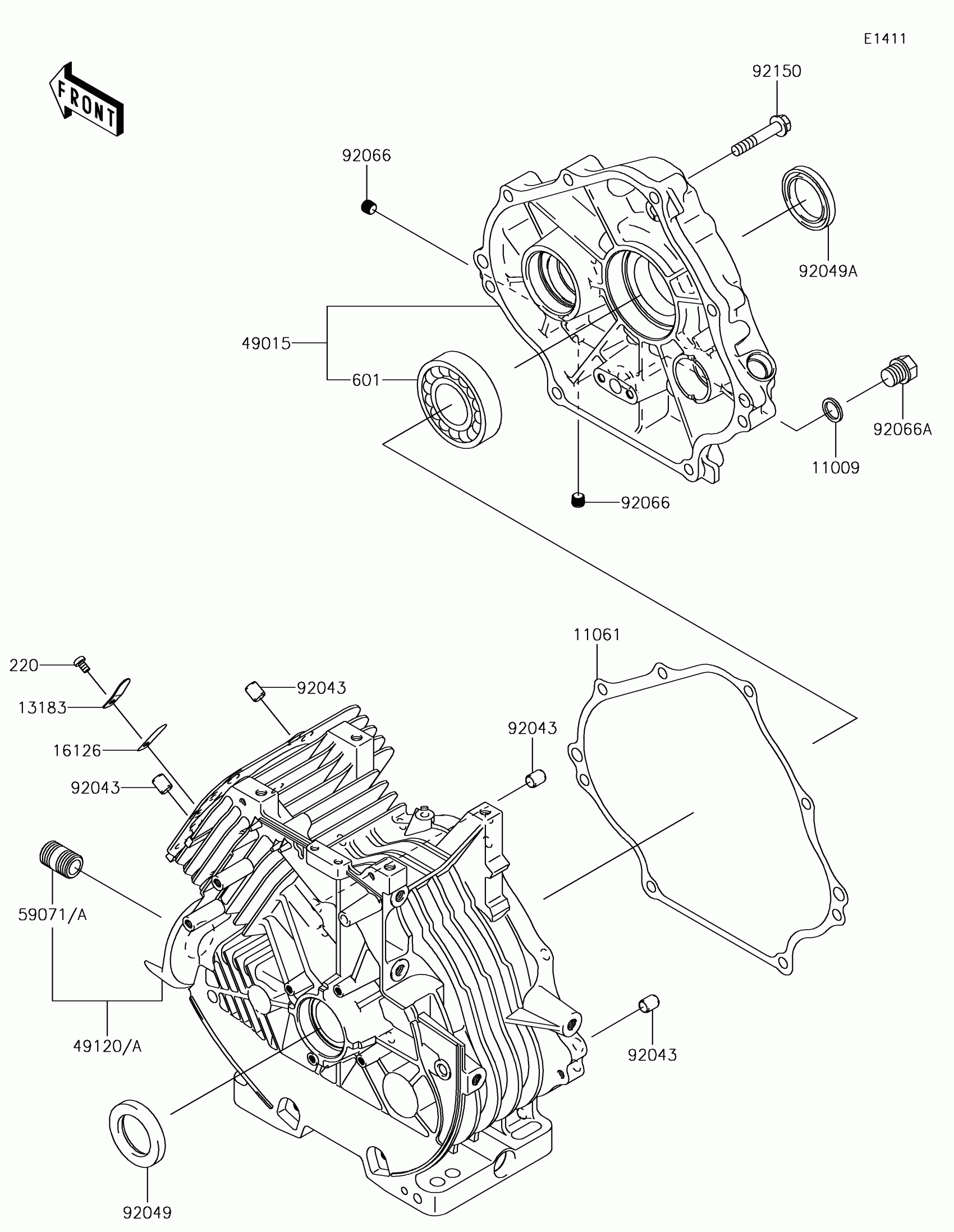

Kawasaki MULE SX™ 4x4 SE Crankcase Diagram

Description

Price

11009

GASKET

11009-2175

$0.90

11061

GASKET,COVER-CRANKCASE

11061-0798

$10.27

13183

PLATE

13183-2120

$0.46

16126

VALVE

16126-2146

$0.59

49015

COVER-CRANKCASE

49015-0038

$135.14

49120A

CRANKCASE-COMP

49120-6208

$377.77

59071

JOINT

59071-0733

$2.00

92043

92043-7001

$0.55

92049

SEAL-OIL,SD 35X48X8 R HS

92049-7010

$2.14

92049A

SEAL-OIL

92049-7018

$2.96

92066

PLUG

92066-0881

$3.44

92066A

PLUG,14X12

92066-2253

$1.32

92150

BOLT,8X45

92150-2252

$1.42

220

SCREW-PAN-CROS,5X8

220AA0508

$0.47

601

BEARING-BALL

601A6207

$14.75
