2019 Kawasaki Mule SX™ 4x4 SE Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2019 Kawasaki Mule SX™ 4x4 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

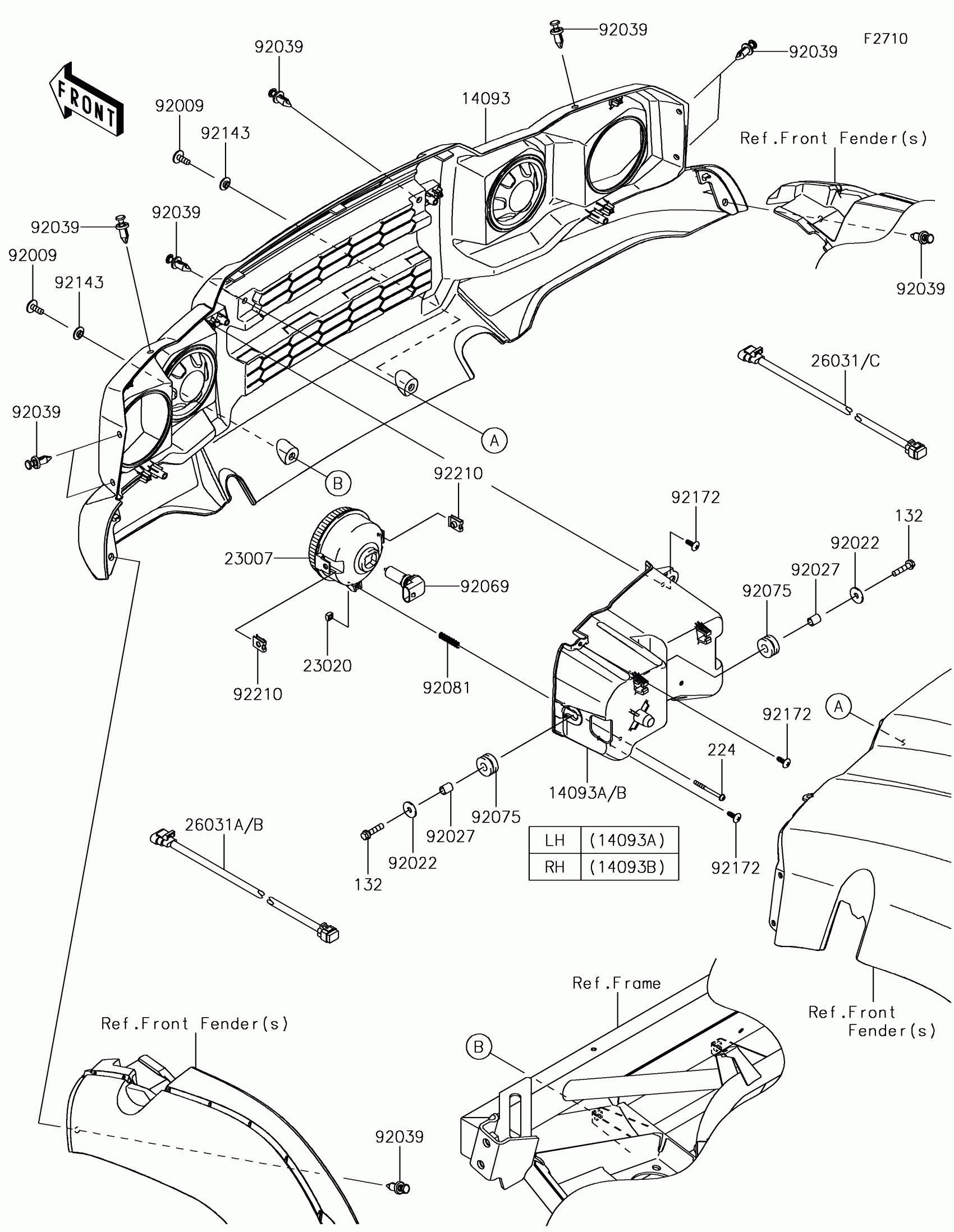

2019 Kawasaki Mule SX™ 4x4 SE Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,FR GRILL

14093-0392

1
Out of stock

14093A

COVER,HEAD LAMP,LH

14093-0394

1
Out of stock

14093B

COVER,HEAD LAMP,RH

14093-0395

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-0096

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

26031B

HARNESS,HEAD LAMP,LH

26031-2384

1
Out of stock

26031C

HARNESS,HEAD LAMP,RH

26031-2385

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92069

BULB,12V 35/35W

92069-0019

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0265

1
Out of stock

92210

NUT

92210-1125

1
Out of stock

132

1

$2.29

In stock

224

SCREW-PAN-WP-CROS,4X45

224AA0445

1
Out of stock
