2019 Kawasaki Mule SX™ 4x4 Se Generator/ignition Coil Diagram

← All diagrams

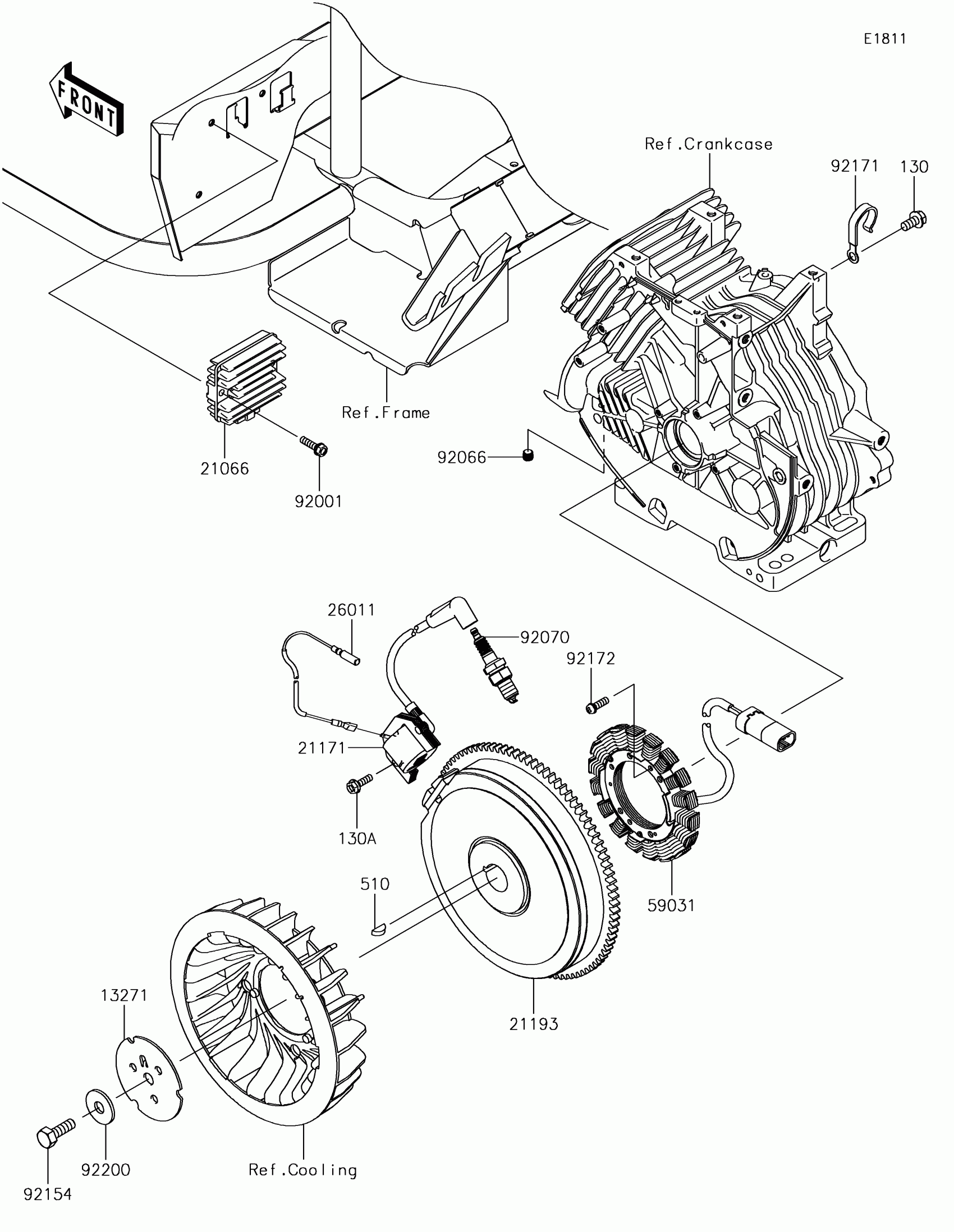

Find the part on the Generator/ignition Coil diagram for your 2019 Kawasaki Mule SX™ 4x4 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ 4x4 Se Generator/ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE,FAN

13271-7029

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0039

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-7035

1
Out of stock

21193

FLYWHEEL-ASSY

21193-0025

1
Out of stock

26011

WIRE-LEAD

26011-7014

1
Out of stock

59031

COIL-CHARGING

59031-2132

1
Out of stock

92001

BOLT,FLANGED,6X22

92001-1352

1
Out of stock

92066

PLUG

92066-0762

1
Out of stock

92070

PLUG-SPARK,BPR5ES(NGK),SOLID

92070-2088

1
Out of stock

92154

BOLT,12X30

92154-7003

1
Out of stock

92171

CLAMP

92171-7005

1
Out of stock

92172

SCREW,5X20

92172-7018

1
Out of stock

92200

WASHER

92200-7002

1
Out of stock

130

BOLT-FLANGED,8X16

130AA0816

1
Out of stock

130A

BOLT-FLANGED,6X20

130BA0620

1
Out of stock

510

WOODRUFF KEY

510A5100

1
Out of stock
