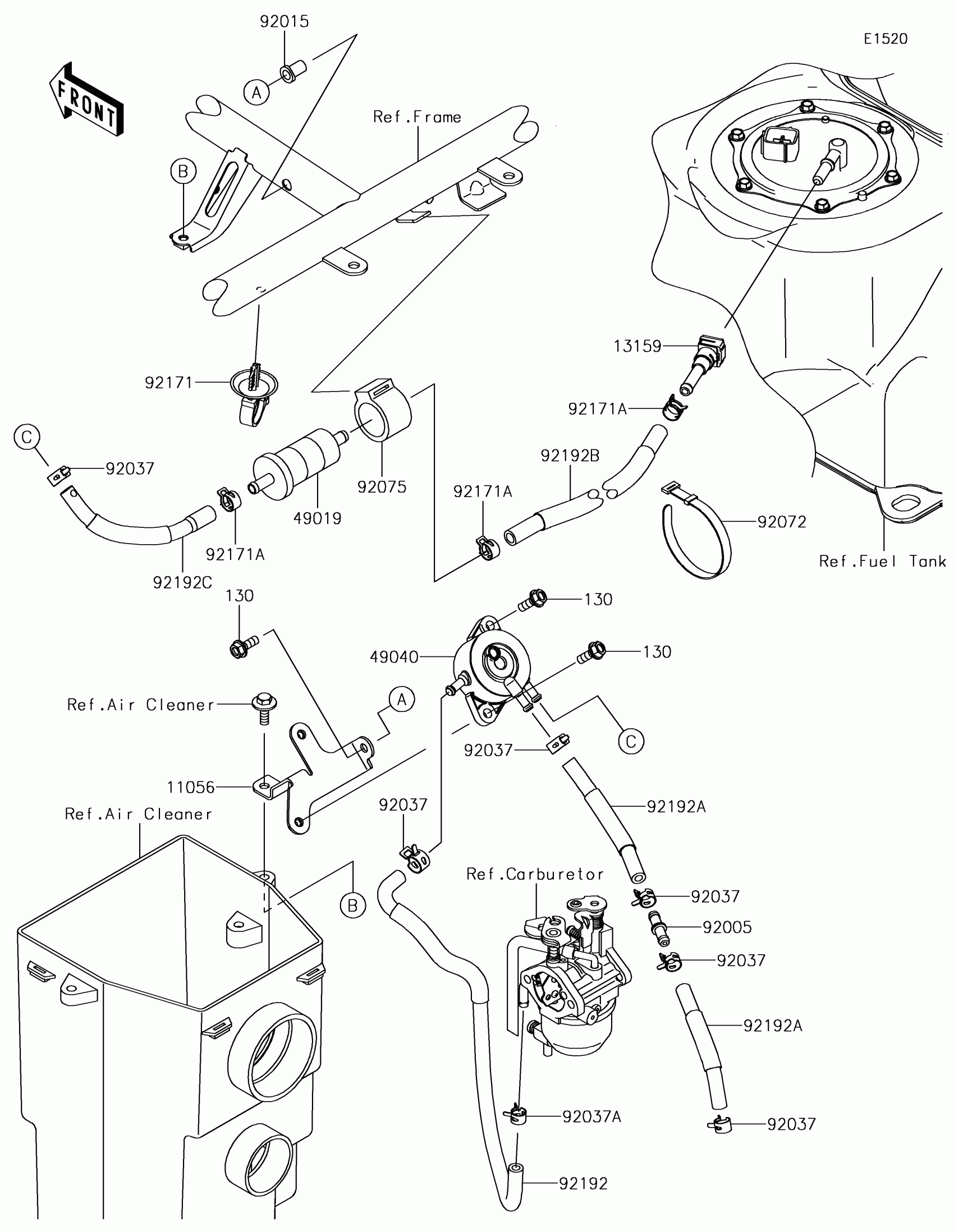

Find the part on the Fuel Pump diagram for your 2019 Kawasaki Mule SX™ 4x4 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ 4x4 SE Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,PUMP-FUEL

11056-4297

1
Out of stock

13159

CONNECTOR

13159-0022

1
Out of stock

49019

FILTER-FUEL

49019-1055

1
Out of stock

49040

PUMP-FUEL

49040-7001

1
Out of stock

92005

FITTING

92005-0856

1
Out of stock

92015

NUT,POP,6MM

92015-1759

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92171A

CLAMP

92171-0515

1

$5.56

In stock

92192

TUBE,CARB.-PUMP FUEL

92192-0826

1
Out of stock

92192A

TUBE,CRAB.INSULATOR-PUMP

92192-1613

1
Out of stock

92192B

TUBE,TANK-FUEL FILTER

92192-1689

1
Out of stock

92192C

TUBE,FUEL FILTER-FUEL PUMP

92192-1750

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
