2019 Kawasaki Mule SX™ 4x4 Se Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2019 Kawasaki Mule SX™ 4x4 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

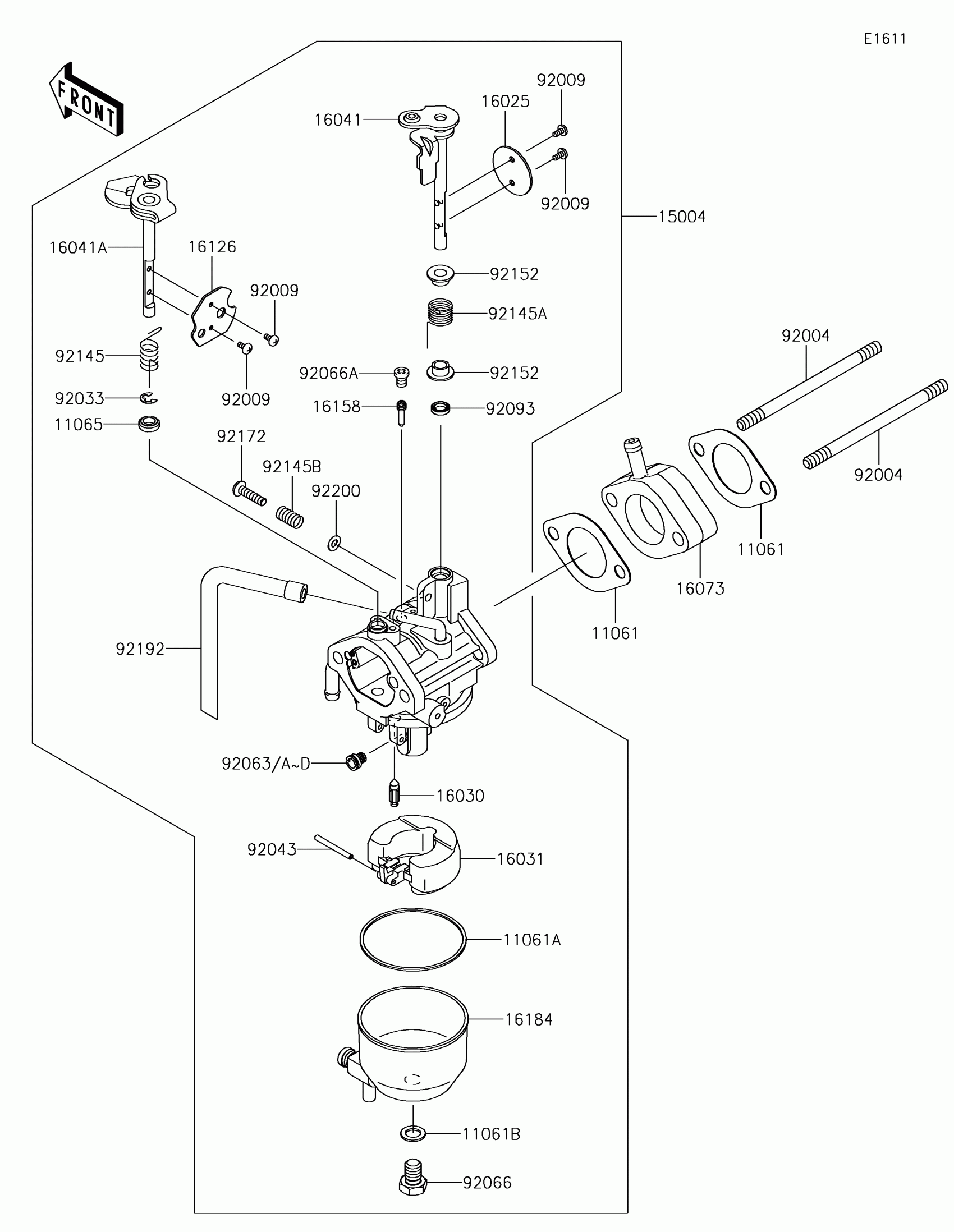

2019 Kawasaki Mule SX™ 4x4 Se Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD-CARB

11061-7027

1

$1.02

In stock

11061A

1

$6.88

In stock

11061B

GASKET,CHAMBER

11061-7045

1

$1.68

In stock

11065

CAP

11065-7012

1

$1.44

In stock

15004

CARBURETOR-ASSY

15004-0953

1

$197.85

In stock

16025

VALVE-THROTTLE

16025-7008

1

$8.42

In stock

16030

VALVE-FLOAT

16030-7004

1

$21.63

In stock

16031

FLOAT

16031-7004

1

$27.47

In stock

16041

SHAFT-CARBURETOR

16041-2261

1

$33.36

In stock

16041A

SHAFT-CARBURETOR

16041-2262

1

$33.36

In stock

16073

INSULATOR

16073-0827

1

$6.68

In stock

16126

VALVE

16126-2242

1

$7.63

In stock

16158

JET-SLOW,#54

16158-2051

1

$30.06

In stock

16184

CHAMBER-ASSY-FLOAT

16184-7018

1

$39.04

In stock

92004

STUD,6X95

92004-7027

1
Out of stock

92009

SCREW

92009-2049

1
Out of stock

92033

RING-SNAP

92033-7007

1

$1.56

In stock

92043

PIN,FLOAT

92043-7016

1

$1.90

In stock

92063

JET-MAIN,#99

92063-2458

1

$22.12

In stock

92063A

JET-MAIN,#105

92063-7013

1

$18.46

In stock

92063B

JET-MAIN,#102

92063-7014

1

$18.46

In stock

92063C

JET-MAIN,#109

92063-7044

1

$24.81

In stock

92063D

JET-MAIN,#112

92063-7045

1

$24.44

In stock

92066

PLUG

92066-7020

1

$11.66

In stock

92066A

PLUG

92066-7021

1

$4.08

In stock

92093

SEAL,D=5.9

92093-7001

1

$1.85

In stock

92145

SPRING

92145-2151

1

$2.37

In stock

92145A

SPRING

92145-2152

1

$2.37

In stock

92145B

SPRING

92145-7039

1

$2.02

In stock

92152

COLLAR

92152-7008

1
Out of stock

92172

SCREW

92172-7007

1

$1.20

In stock

92192

TUBE

92192-2085

1
Out of stock

92200

WASHER

92200-7025

1
Out of stock
