2020 Kawasaki Mule SX™ 4x4 SE FI Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2020 Kawasaki Mule SX™ 4x4 SE FI, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

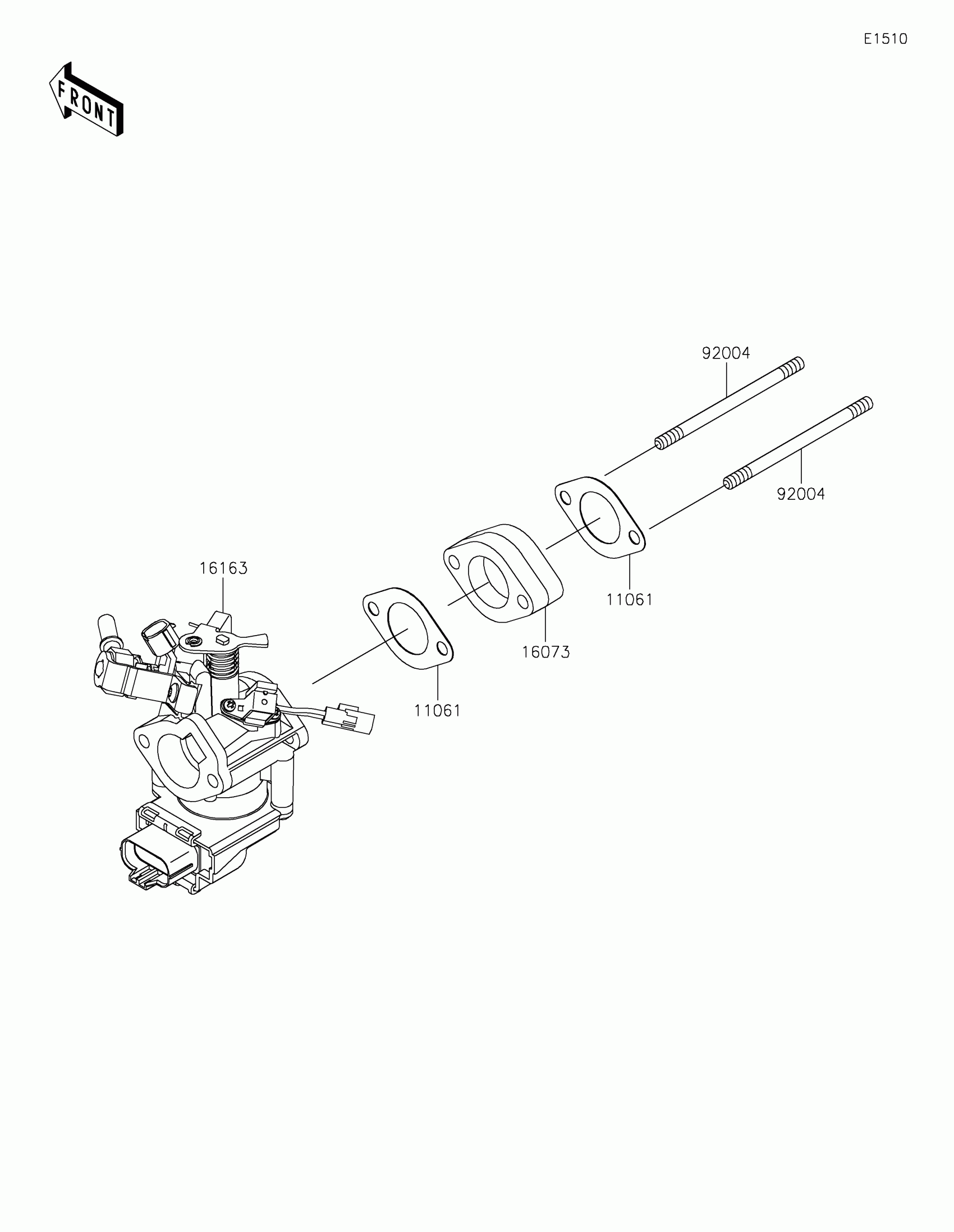

2020 Kawasaki Mule SX™ 4x4 SE FI Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD-CARB

11061-1303

1
Out of stock

16073

INSULATOR

16073-0873

1
Out of stock

16163

THROTTLE-ASSY

16163-1140

1
Out of stock

92004

STUD,6X95

92004-7027

1
Out of stock
