2020 Kawasaki Mule SX™ 4x4 SE FI Differential Diagram

← All diagrams

Find the part on the Differential diagram for your 2020 Kawasaki Mule SX™ 4x4 SE FI, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

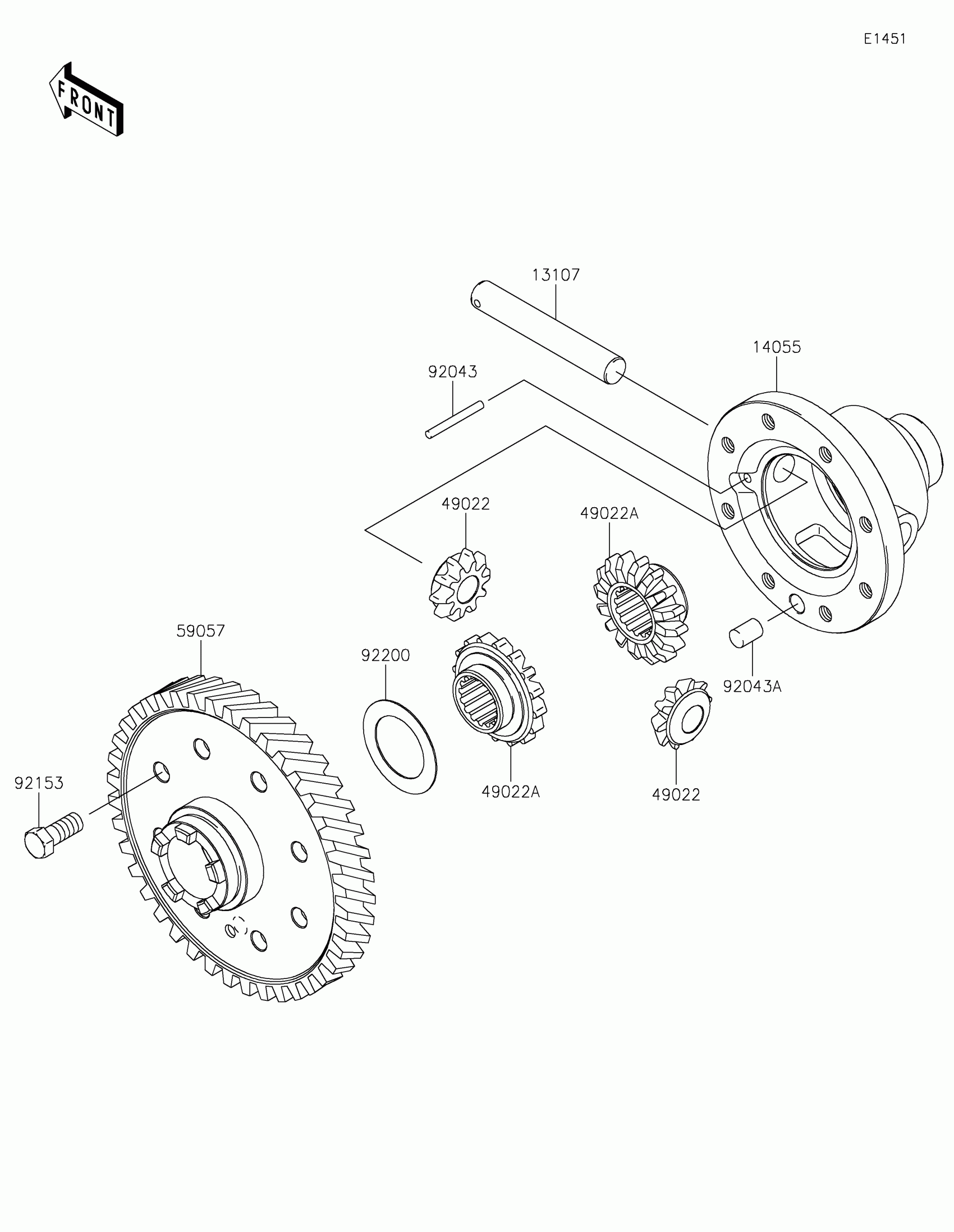

2020 Kawasaki Mule SX™ 4x4 SE FI Differential Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,DIFF-GEAR CASE

13107-0042

1
Out of stock

14055

CASE-GEAR,DIFF

14055-0016

1

$398.81

In stock

49022

GEAR-BEVEL,10T

49022-0572

1
Out of stock

49022A

GEAR-BEVEL,16T

49022-0573

1
Out of stock

59057

GEAR-HELICAL,64T

59057-0005

1
Out of stock

92043

PIN,4X37.8

92043-0052

1
Out of stock

92043A

PIN,10X14

92043-1506

1
Out of stock

92153

BOLT,10X22

92153-0590

1
Out of stock

92200

WASHER

92200-1077

1
Out of stock
