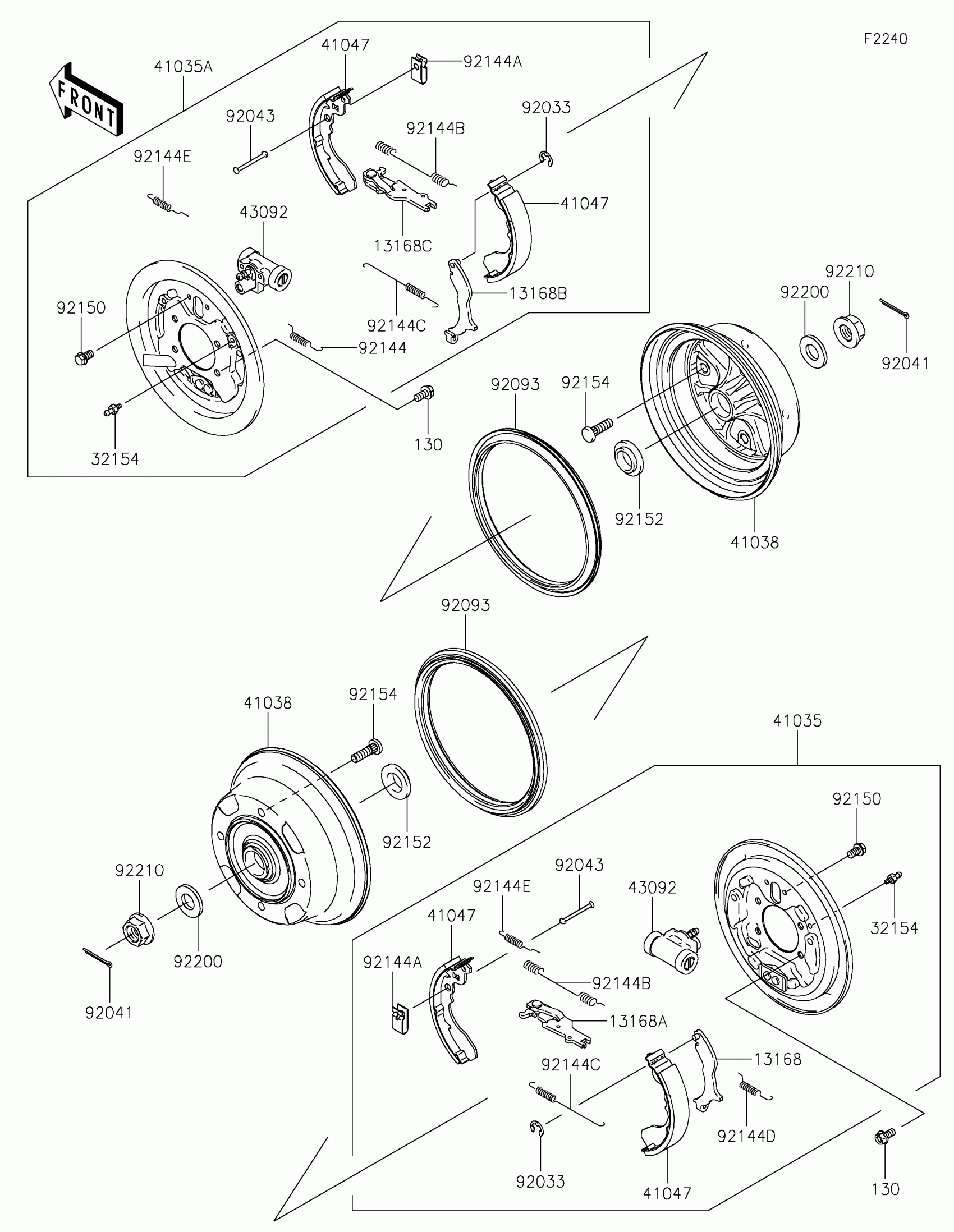

Kawasaki MULE SX™ 4x4 SE FI Rear Hubs/Brakes Diagram

Description

Price

13168

LEVER,BRAKE,LH

13168-0065

$11.75

13168A

LEVER,BRAKE,LH

13168-0066

$31.03

13168B

LEVER,BRAKE,RH

13168-0067

$14.66

13168C

LEVER,BRAKE,RH

13168-0068

Unavailable

32154

PIPE

32154-0335

$12.25

41035

PANEL-ASSY-BRAKE,RR,LH

41035-0722

$514.58

41035A

PANEL-ASSY-BRAKE,RR,RH

41035-0723

$514.58

41038

DRUM,REAR BRAKE

41038-0018

$214.75

41047

SHOE-ASSY-BRAKE,RR

41047-7501

$26.99

43092

CYLINDER,BRAKE

43092-0003

$124.50

92033

RING-SNAP

92033-1279

$3.14

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN,SHOE HOLD

92043-1460

$3.71

92093

SEAL,BS184.8X13.5-1

92093-0031

$121.93

92144

SPRING,RH

92144-1608

$7.17

92144A

SPRING,SHOE HOLD

92144-1609

$5.80

92144B

SPRING,RETURN,UPP

92144-1612

$6.08

92144C

SPRING,RETURN,LWR

92144-1613

$6.08

92144D

SPRING,LH

92144-1614

$4.81

92144E

SPRING

92144-1615

$3.99

92150

BOLT,FLANGED,6X10

92150-1664

$3.92

92152

COLLAR

92152-0284

$7.69

92154

BOLT,10X34.6

92154-1482

$2.75

92200

WASHER,20.5X41.0X4.5

92200-1795

$2.61

92210

NUT,FLANGED,20MM

92210-2093

$8.47

130

BOLT-FLANGED,8X16

130CA0816

$1.77
