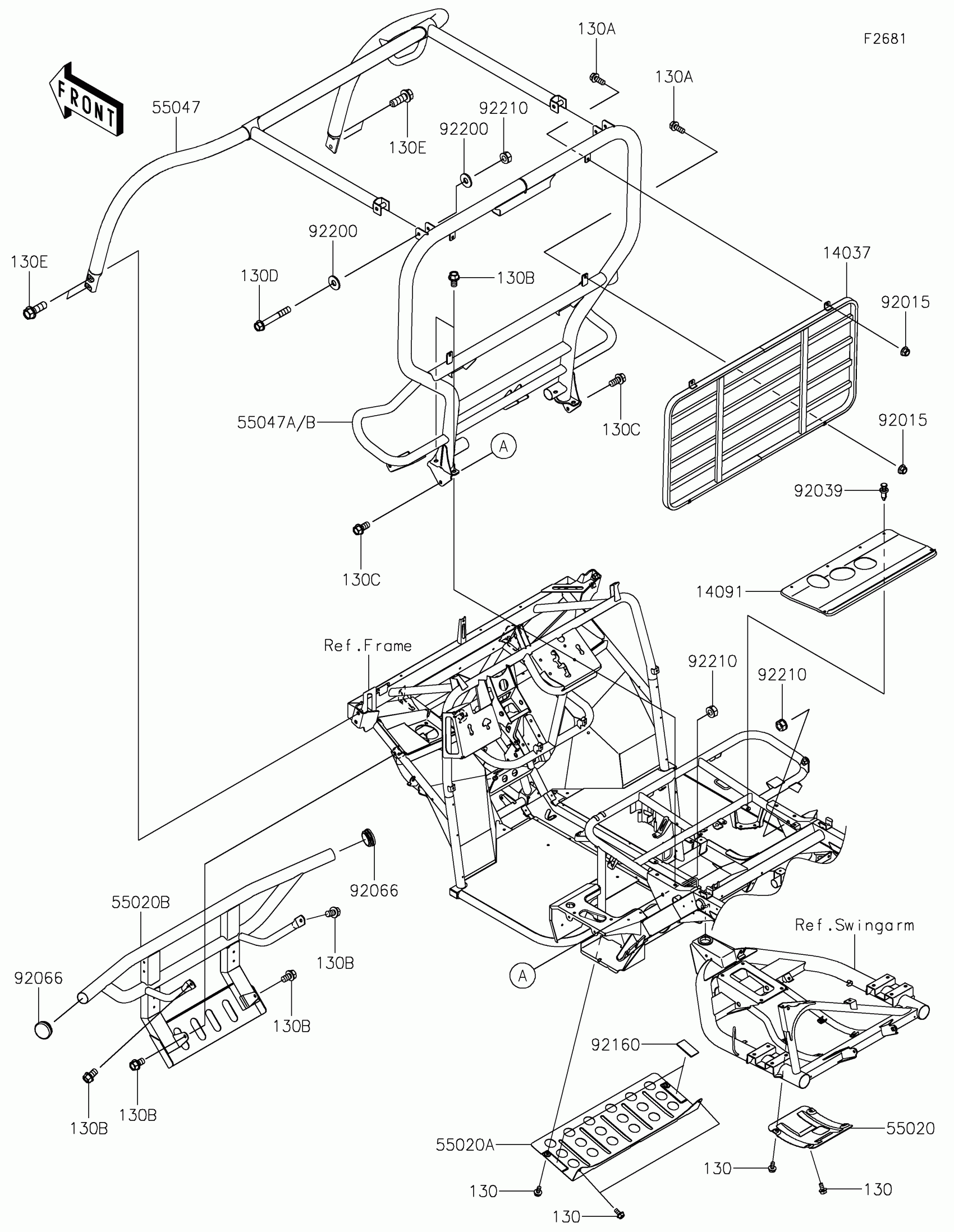

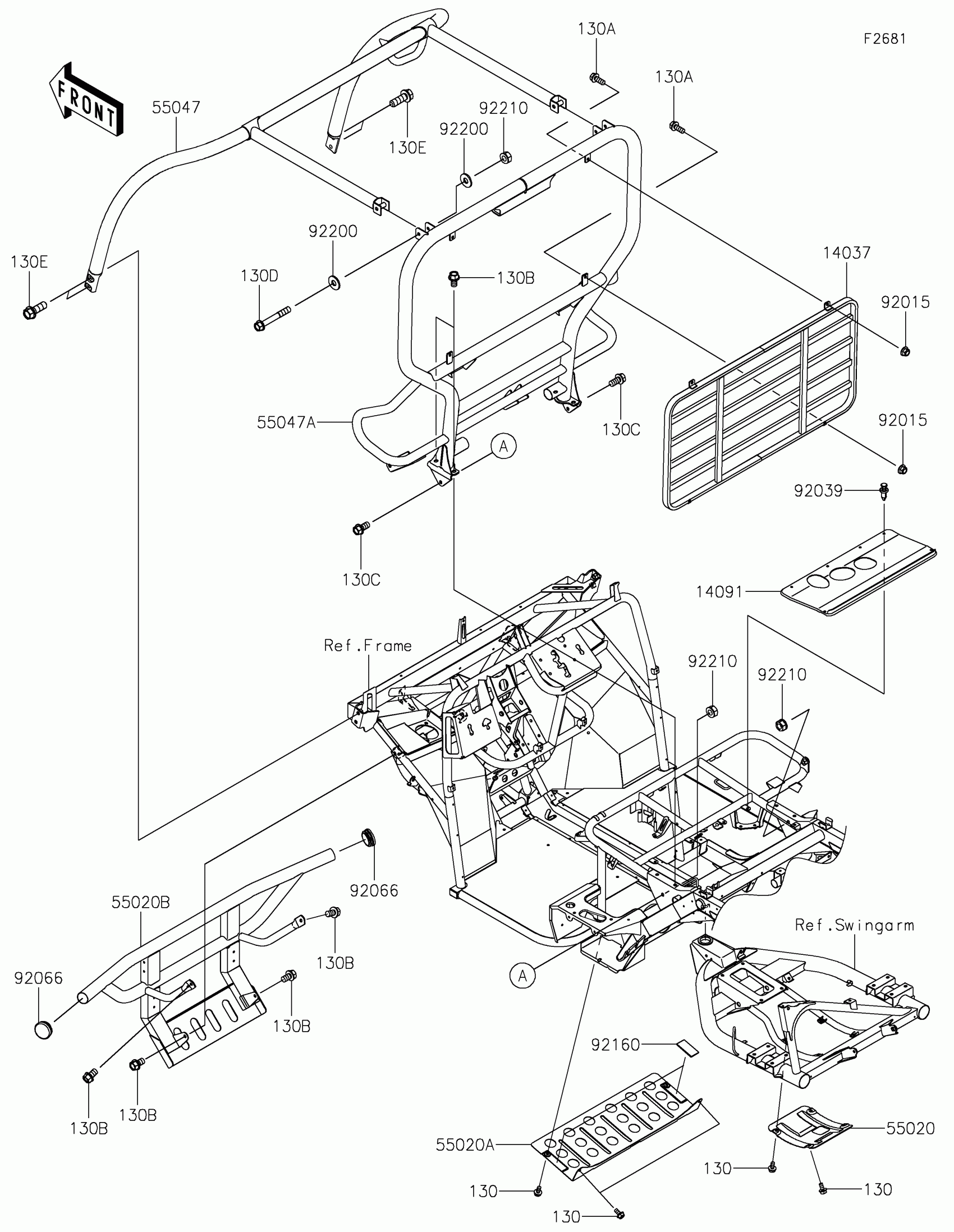

Kawasaki MULE SX™ 4x4 Guards/Cab Frame Diagram

Description

Price

14037

SCREEN,T.BLACK

14037-0774-388

$158.10

14091

COVER

14091-0355

$4.60

55020

GUARD,DIFF

55020-0141

$40.14

55020A

GUARD

55020-0883

$71.10

55020B

GUARD,FR,T.BLACK

55020-1933-388

$203.93

55047

BAR-COMP,FR,T.BLACK

55047-0355-388

$313.16

55047A

BAR-COMP,RR,T.BLACK

55047-0356-388

$571.29

92015

NUT,FLANGED,LOCK,8MM

92015-1668

$4.69

92039

RIVET

92039-0776

$1.19

92066

PLUG,42MM

92066-0830

$1.81

92160

DAMPER

92160-1102

$1.38

92200

WASHER,11X26X2.6

92200-0352

$3.39

92210

NUT,LOCK,10MM

92210-1204

$4.31

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X20

130BA0820

$4.14

130B

BOLT-FLANGED,10X16

130BA1016

$4.76

130C

BOLT-FLANGED,10X20

130BA1020

$3.35

130D

BOLT-FLANGED,10X70

130BA1070

$2.75

130E

BOLT-FLANGED,12X35

130BA1235

$3.63
