2020 Kawasaki Mule SX™ 4x4 Fi Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2020 Kawasaki Mule SX™ 4x4 Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

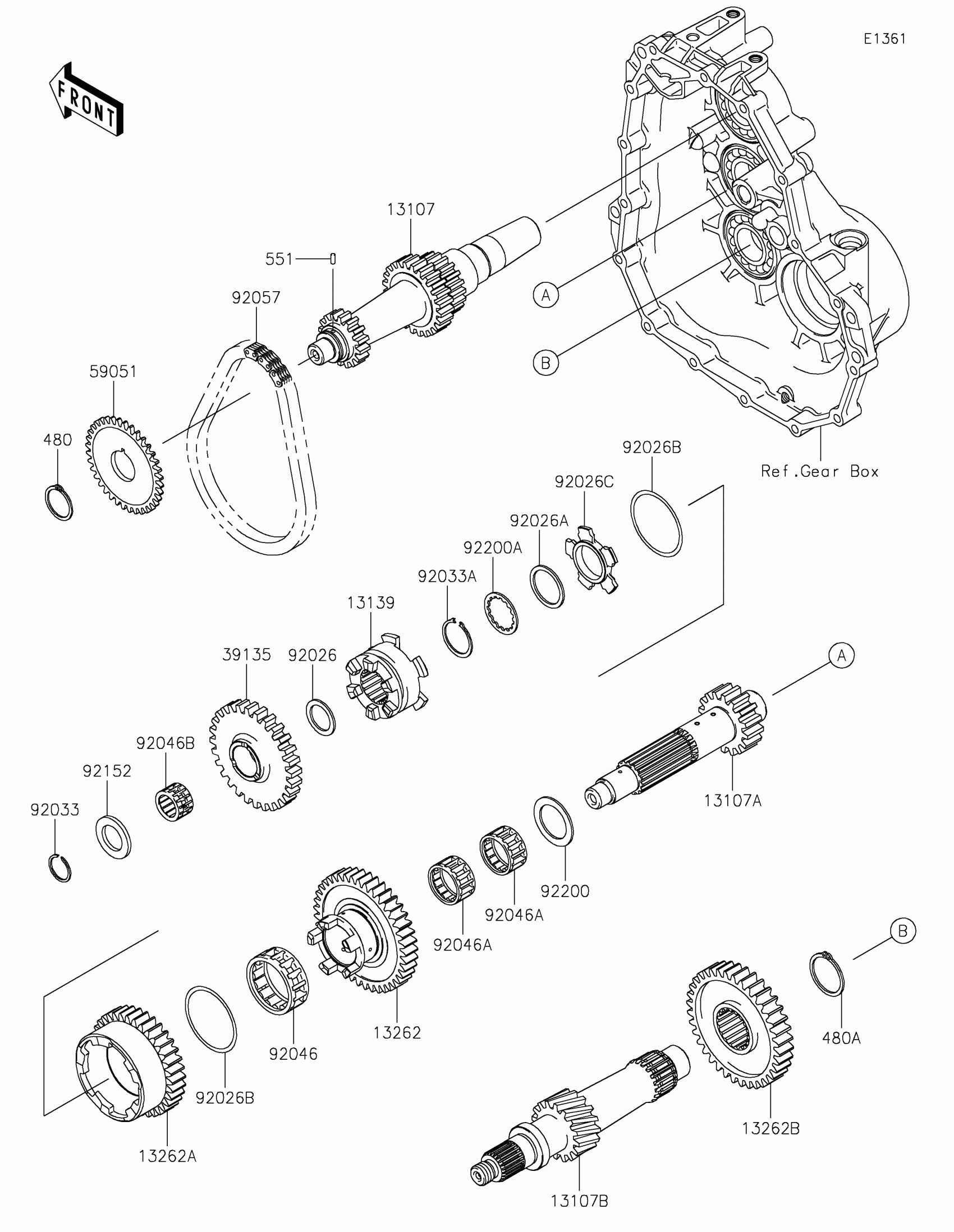

2020 Kawasaki Mule SX™ 4x4 Fi Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

1

$271.81

In stock

13107A

SHAFT,SECOND,18T

13107-0078

1

$231.91

In stock

13107B

SHAFT,THIRD,16T

13107-0088

1

$271.81

In stock

13139

SHIFTER,FR/RR

13139-0004

1

$102.85

In stock

13262

GEAR,LOW,41T

13262-0106

1
Out of stock

13262A

GEAR,HIGH,35T

13262-0107

1
Out of stock

13262B

GEAR-TRANSMISSION SPUR,36T

13262-0108

1
Out of stock

39135

SPROCKET-DRIVEN,30T

39135-0001

1

$137.40

In stock

59051

GEAR-SPUR,37T

59051-0049

1

$19.14

In stock

92026

SPACER,21.2X29X1.6

92026-1568

1

$7.81

In stock

92026A

1

$3.33

In stock

92026B

1

$4.90

In stock

92026C

SPACER,HI&LOW

92026-1600

1

$46.70

In stock

92033

RING-SNAP,20MM

92033-015

1

$3.39

In stock

92033A

1

$3.69

In stock

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

1
Out of stock

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

1
Out of stock

92057

1

$44.92

In stock

92152

1

$7.69

In stock

92200

WASHER,28.2X40.0X1.6

92200-0090

1
Out of stock

92200A

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

480

1

$1.71

In stock

480A

1

$1.49

In stock

551

PIN DOWEL 3X8

551A0308

1

$0.59

In stock
