2020 Kawasaki Mule SX™ 4x4 FI Shift Lever Diagram

← All diagrams

Find the part on the Shift Lever diagram for your 2020 Kawasaki Mule SX™ 4x4 FI, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

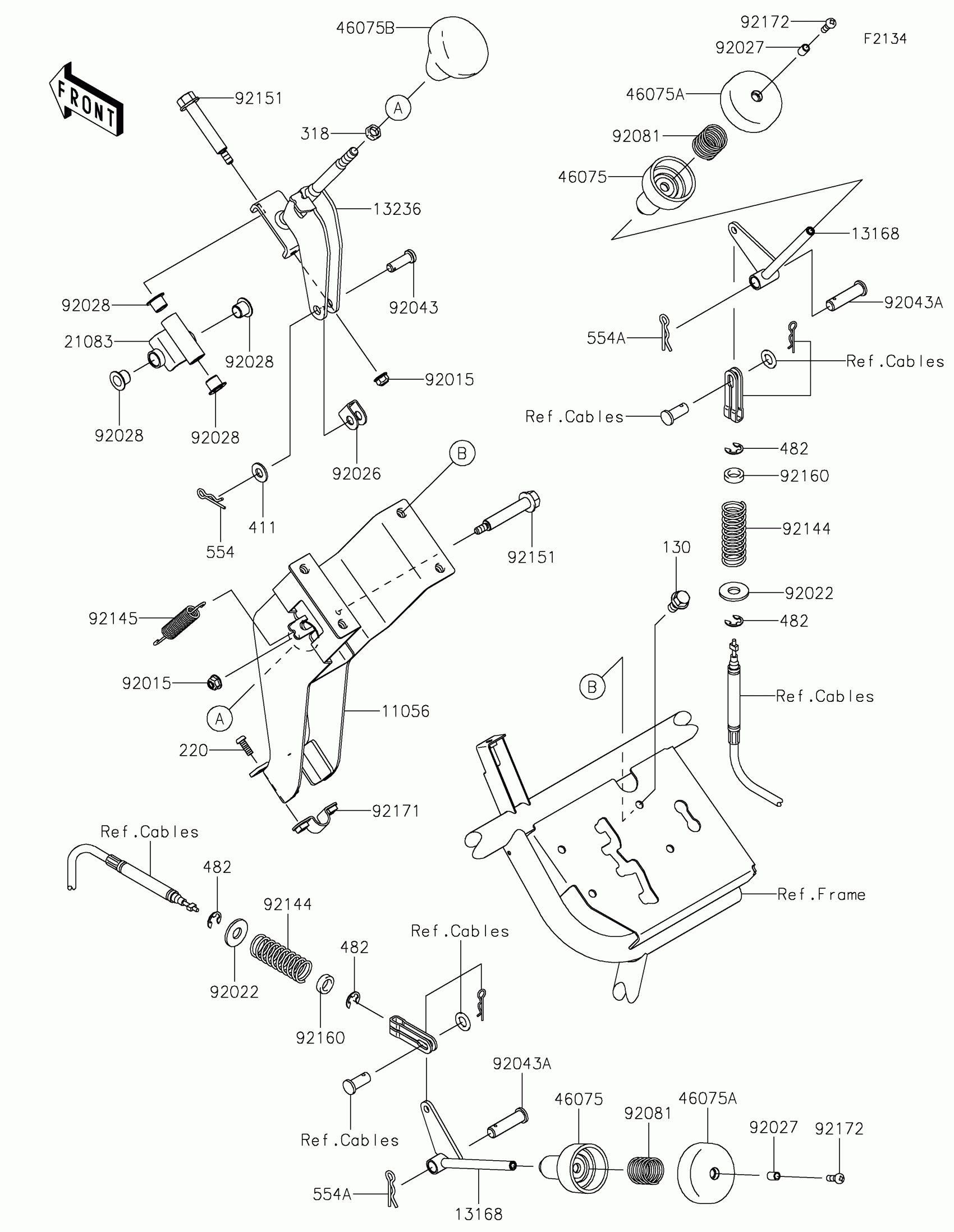

2020 Kawasaki Mule SX™ 4x4 FI Shift Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,SHIFT LEVER

11056-2237

1
Out of stock

13168

LEVER

13168-0069

1
Out of stock

13236

LEVER-COMP,SHIFT

13236-0073

1
Out of stock

21083

ARM

21083-0023

1
Out of stock

46075

GRIP

46075-0012

1

$11.56

In stock

46075A

GRIP

46075-0014

1

$6.02

In stock

46075B

GRIP,SHIFT

46075-0046

1

$27.63

In stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92026

SPACER

92026-0074

1
Out of stock

92027

COLLAR,4.5X6.5X9.3

92027-1313

1
Out of stock

92028

BUSHING

92028-1507

1
Out of stock

92043

PIN

92043-0053

1
Out of stock

92043A

PIN,FOOTRST STEP FIT

92043-1069

1
Out of stock

92081

SPRING

92081-1714

1
Out of stock

92144

SPRING

92144-1510

1
Out of stock

92145

SPRING

92145-0249

1
Out of stock

92151

BOLT,6MM

92151-1747

1
Out of stock

92160

DAMPER

92160-3754

1
Out of stock

92171

CLAMP

92171-0365

1

$5.86

In stock

92172

SCREW

92172-7501

1
Out of stock

130

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

220

SCREW-PAN-CROS,5X14

220AA0514

1
Out of stock

318

NUT-HEX-SMALL

318BB0800

1
Out of stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

482

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock

554

PIN-SNAP

554DA0800

1
Out of stock

554A

PIN-SNAP,10MM

554DA1000

1
Out of stock
