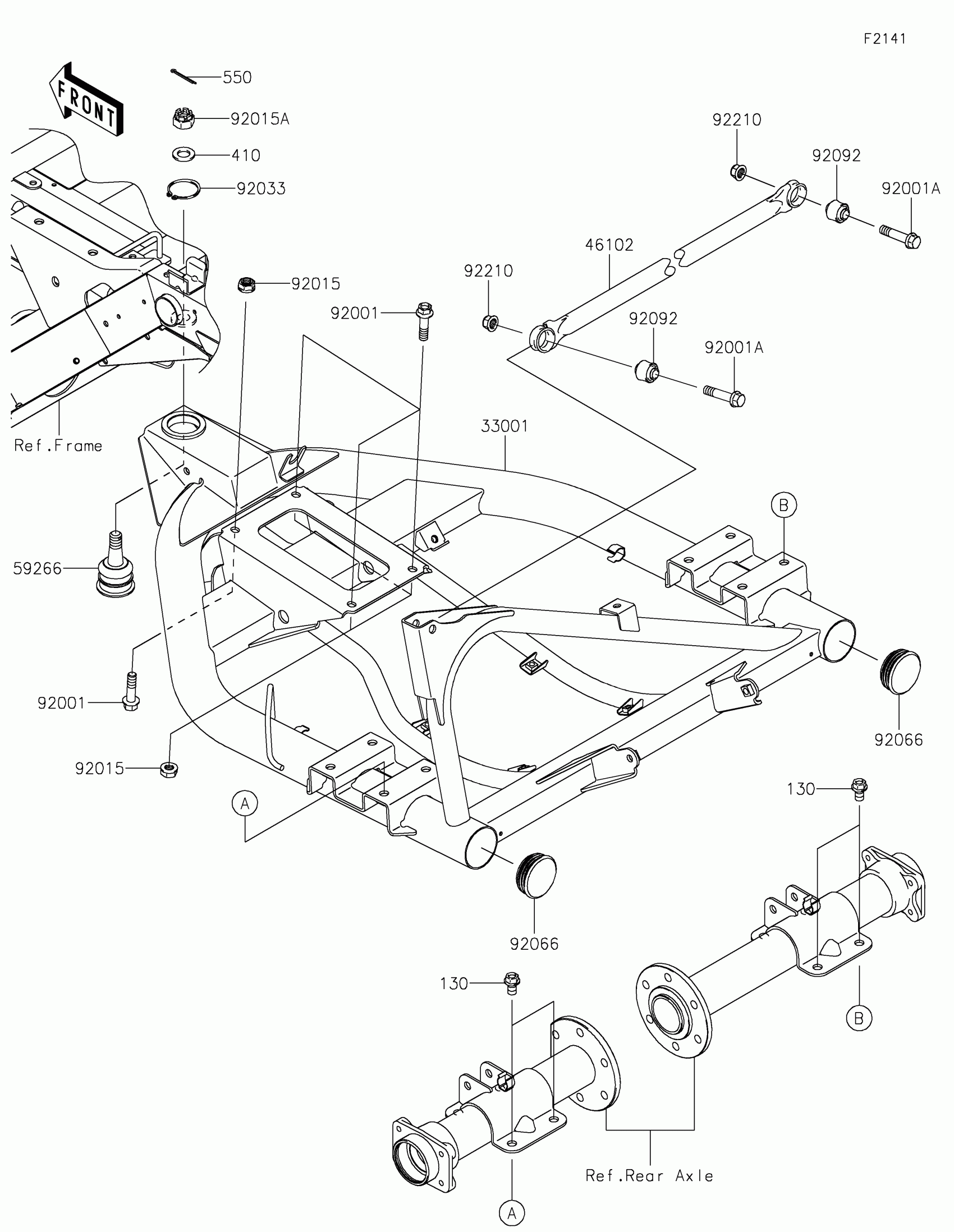

Kawasaki MULE SX™ 4x4 FI Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING

33001-0715

$546.32

46102

ROD

46102-0583

$80.96

59266

JOINT-BALL

59266-1087

$64.85

92001

BOLT,FLANGED,10X38

92001-1293

$9.51

92001A

BOLT,FLANGED,10X44

92001-1499

$5.52

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92015A

NUT,CASTLE,14MM

92015-1841

$8.38

92033

RING-SNAP

92033-0050

$7.69

92066

PLUG

92066-0044

$5.07

92092

BUSHING-RUBBER

92092-7502

$13.06

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,10X16

130BA1016

$4.76

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$2.15

550

PIN-COTTER,3.2X30

550AA3230

$2.51
