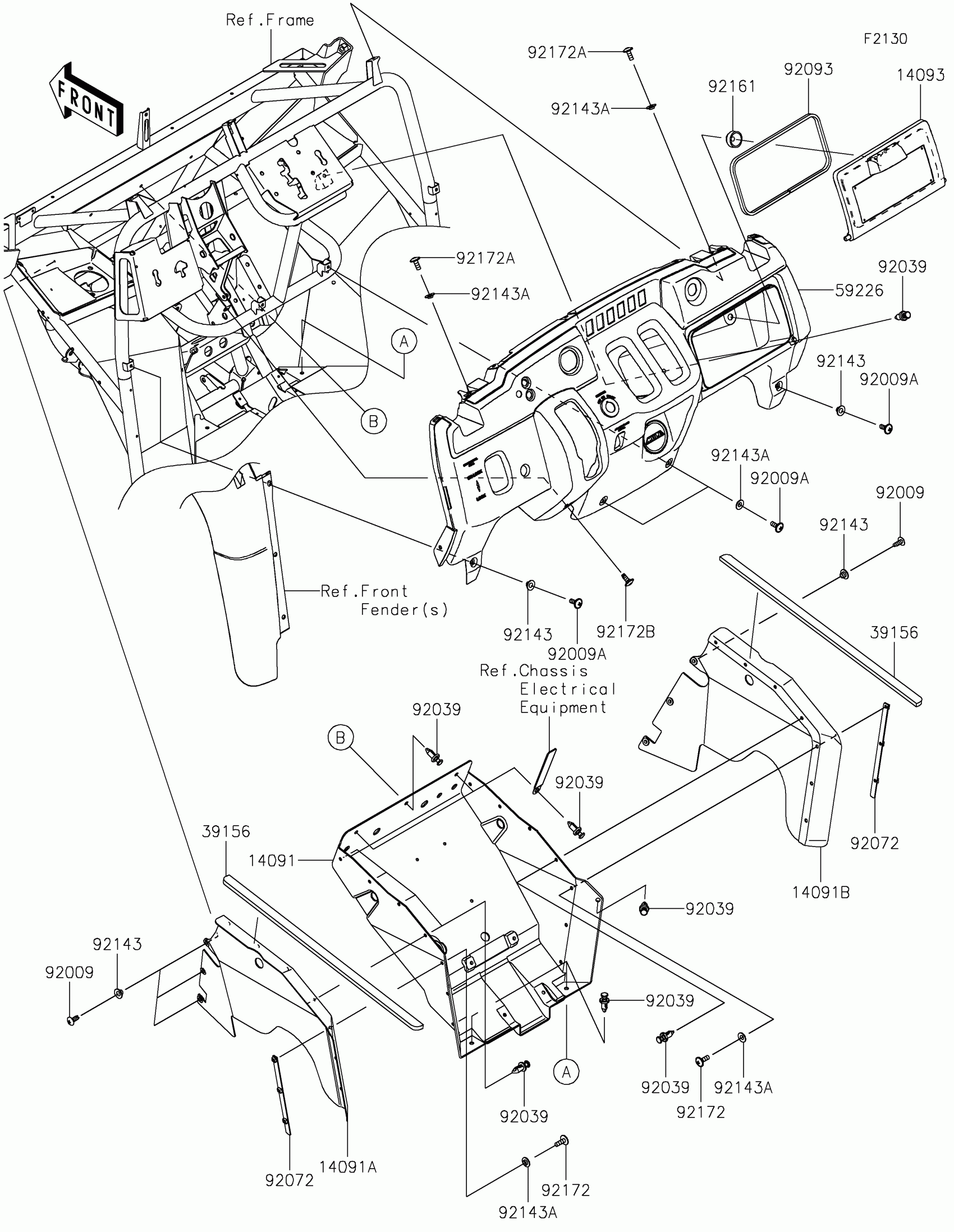

Kawasaki MULE SX™ 4x4 FI Frame Fittings(Front) Diagram

Description

Price

14091

COVER,FLOOR,CNT

14091-0408

$111.25

14091A

COVER,FLOOR,SIDE,LH

14091-0424

$52.61

14091B

COVER,FLOOR,SIDE,RH

14091-0425

$52.61

14093

COVER,GLOVE BOX

14093-0396

$28.43

39156

PAD

39156-0071

$27.15

59226

PANEL-CONTROL

59226-0742

$148.91

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-0776

$1.19

92072

BAND

92072-0042

$6.36

92093

SEAL,6X10

92093-0658

$2.75

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92161

DAMPER

92161-0568

$1.19

92172

SCREW,6X18

92172-0002

$2.80

92172A

SCREW,6X16

92172-0236

$0.85

92172B

SCREW,6X16

92172-0711

$3.02
