2023 Kawasaki Mule SX™ 4x4 FE Transmission Diagram

← All diagrams

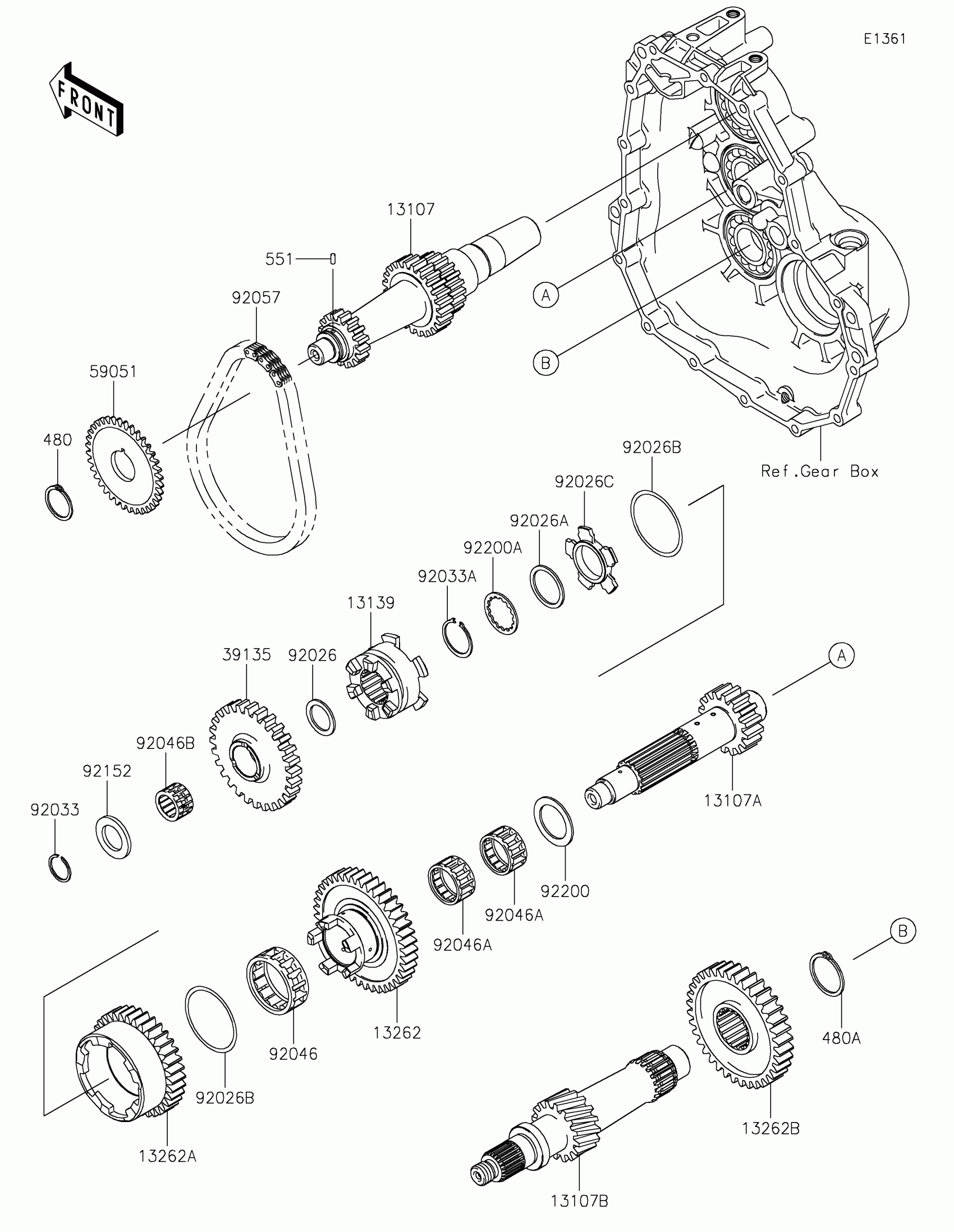

Find the part on the Transmission diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule SX™ 4x4 FE Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,FIRST,INPUT,16T&24T&19T

13107-0039

1
Out of stock

13107A

SHAFT,SECOND,18T

13107-0078

1
Out of stock

13107B

SHAFT,THIRD,16T

13107-0088

1
Out of stock

13139

SHIFTER,FR/RR

13139-0004

1
Out of stock

13262

GEAR,LOW,41T

13262-0106

1

$150.50

In stock

13262A

GEAR,HIGH,35T

13262-0107

1

$150.50

In stock

13262B

1

$105.75

In stock

39135

SPROCKET-DRIVEN,30T

39135-0001

1

$137.40

In stock

59051

GEAR-SPUR,37T

59051-0049

1
Out of stock

92026

SPACER,21.2X29X1.6

92026-1568

1
Out of stock

92026A

SPACER,28.2X34.5X1.6

92026-1587

1
Out of stock

92026B

SPACER,48.2X54.3X1.0

92026-1599

1
Out of stock

92026C

SPACER,HI&LOW

92026-1600

1
Out of stock

92033

RING-SNAP,20MM

92033-015

1
Out of stock

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

1
Out of stock

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

1
Out of stock

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

1
Out of stock

92057

CHAIN,REVERSE,23RH302-38ASM

92057-0072

1
Out of stock

92152

COLLAR,21.2X34.0X3.0

92152-0241

1
Out of stock

92200

WASHER,28.2X40.0X1.6

92200-0090

1
Out of stock

92200A

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

480

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

480A

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

551

PIN DOWEL 3X8

551A0308

1
Out of stock
