2023 Kawasaki Mule SX™ 4x4 FE Gear BOX Diagram

← All diagrams

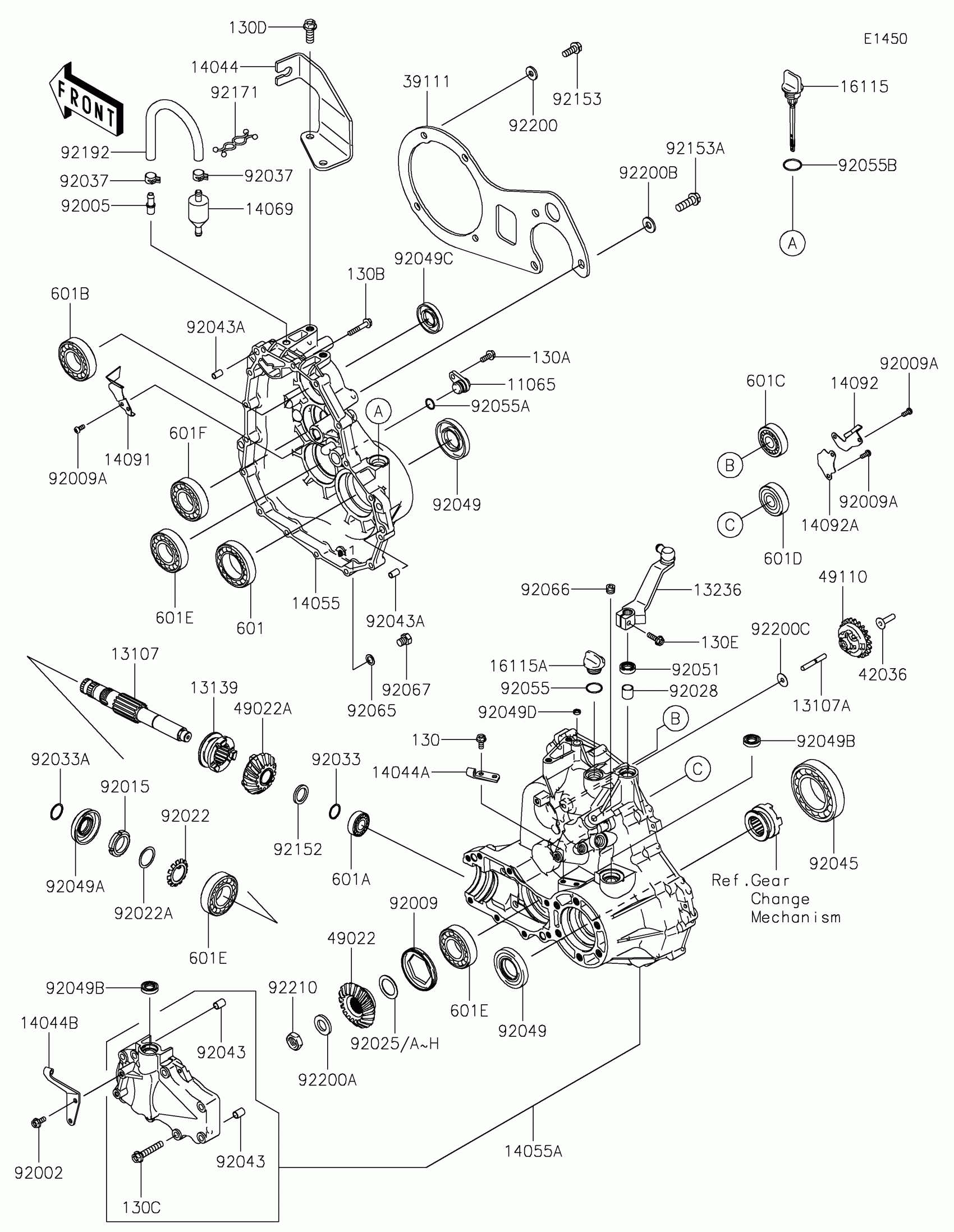

Find the part on the Gear BOX diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule SX™ 4x4 FE Gear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,GEAR CASE,RH

11065-0062

1
Out of stock

13107

SHAFT,OUTPUT,BEVEL GEAR

13107-0043

1
Out of stock

13107A

SHAFT

13107-2235

1
Out of stock

13139

SHIFTER,2WD/4WD

13139-0005

1
Out of stock

13236

LEVER-COMP

13236-0039

1
Out of stock

14044

1

$47.69

In stock

14044A

1

$10.02

In stock

14044B

1

$10.02

In stock

14055

CASE-GEAR,RH

14055-0008

1

$282.28

In stock

14055A

CASE-GEAR,SET

14055-5001

1

$548.13

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14091

COVER

14091-0394

1
Out of stock

14092

COVER

14092-0052

1
Out of stock

14092A

COVER

14092-0053

1
Out of stock

16115

CAP-OIL FILLER

16115-0015

1
Out of stock

16115A

CAP-OIL FILLER

16115-1053

1
Out of stock

39111

ROD-TIE

39111-0016

1

$105.54

In stock

42036

SLEEVE

42036-2060

1
Out of stock

49022

GEAR-BEVEL,18T

49022-0021

1
Out of stock

49022A

GEAR-BEVEL,PINION,16T

49022-0022

1
Out of stock

49110

GOVERNOR-ASSY

49110-0011

1
Out of stock

92002

BOLT,6X14

92002-1656

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92009

SCREW,64MM

92009-1914

1
Out of stock

92009A

SCREW

92009-2308

1
Out of stock

92015

NUT,25MM

92015-1768

1
Out of stock

92022

WASHER,TOOTHED

92022-1990

1
Out of stock

92022A

WASHER,25.3X32X0.5

92022-225

1
Out of stock

92025

SHIM,25.3X36X0.15

92025-1688

—
Out of stock

92025A

SHIM,25.3X36X0.50

92025-1689

—
Out of stock

92025B

SHIM,25.3X36X0.60

92025-1690

—
Out of stock

92025C

SHIM,25.3X36X0.70

92025-1691

—
Out of stock

92025D

SHIM,25.3X36X0.80

92025-1692

—
Out of stock

92025E

SHIM,25.3X36X0.90

92025-1693

—
Out of stock

92025F

SHIM,25.3X36X1.00

92025-1694

—
Out of stock

92025G

SHIM,25.3X36X1.10

92025-1695

—
Out of stock

92025H

SHIM,25.3X36X1.20

92025-1696

—
Out of stock

92028

BUSHING

92028-1347

1
Out of stock

92033

RING-SNAP

92033-0035

1
Out of stock

92033A

RING-SNAP

92033-0036

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,6210CM

92045-1213

1
Out of stock

92049

SEAL-OIL,HTC 30 60 8

92049-0049

1
Out of stock

92049A

SEAL-OIL,YC9Y 22X50X9X13.4

92049-0053

1
Out of stock

92049B

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92049C

SEAL-OIL,HTC 28X45X7

92049-1576

1
Out of stock

92049D

SEAL-OIL,VC-6X10X2.5

92049-2097

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O

92055-012

1
Out of stock

92055A

RING-O,ID=13.8

92055-1141

1
Out of stock

92055B

RING-O,20X3

92055-2185

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG,PT1/8X7

92066-0863

1
Out of stock

92067

PLUG,DRAIN,10X12

92067-001

1
Out of stock

92152

COLLAR,20.2X28.0

92152-0132

1
Out of stock

92153

BOLT,FLANGED,8X21

92153-0898

1
Out of stock

92153A

BOLT,10X30

92153-0908

1
Out of stock

92171

CLAMP

92171-0476

1

$3.51

In stock

92192

TUBE

92192-0216

1
Out of stock

92200

WASHER,8.2X20.0X2.5

92200-0205

1
Out of stock

92200A

WASHER,17X30X3.5

92200-0210

1
Out of stock

92200B

WASHER,10.2X23X2.5

92200-0211

1
Out of stock

92200C

WASHER,6.2X20X0.5

92200-2036

1
Out of stock

92210

NUT,16MM

92210-0211

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130B

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

130C

BOLT-FLANGED,8X45

130BA0845

1

$1.39

In stock

130D

BOLT-FLANGED,10X25

130BA1025

1

$2.71

In stock

130E

BOLT-FLANGED,6X20

130CA0620

1

$1.41

In stock

601

BEARING-BALL

601B6008

1
Out of stock

601A

BEARING-BALL,#6202C3

601B6202

1
Out of stock

601B

BALL BEARING,#6206

601B6206

1
Out of stock

601C

BEARING-BALL,#6303C3

601B6303

1
Out of stock

601D

BEARING-BALL

601B6303U

1
Out of stock

601E

BEARING-BALL,#6305C3

601B6305

1
Out of stock

601F

BEARING-BALL,#6305U

601B6305U

1
Out of stock
