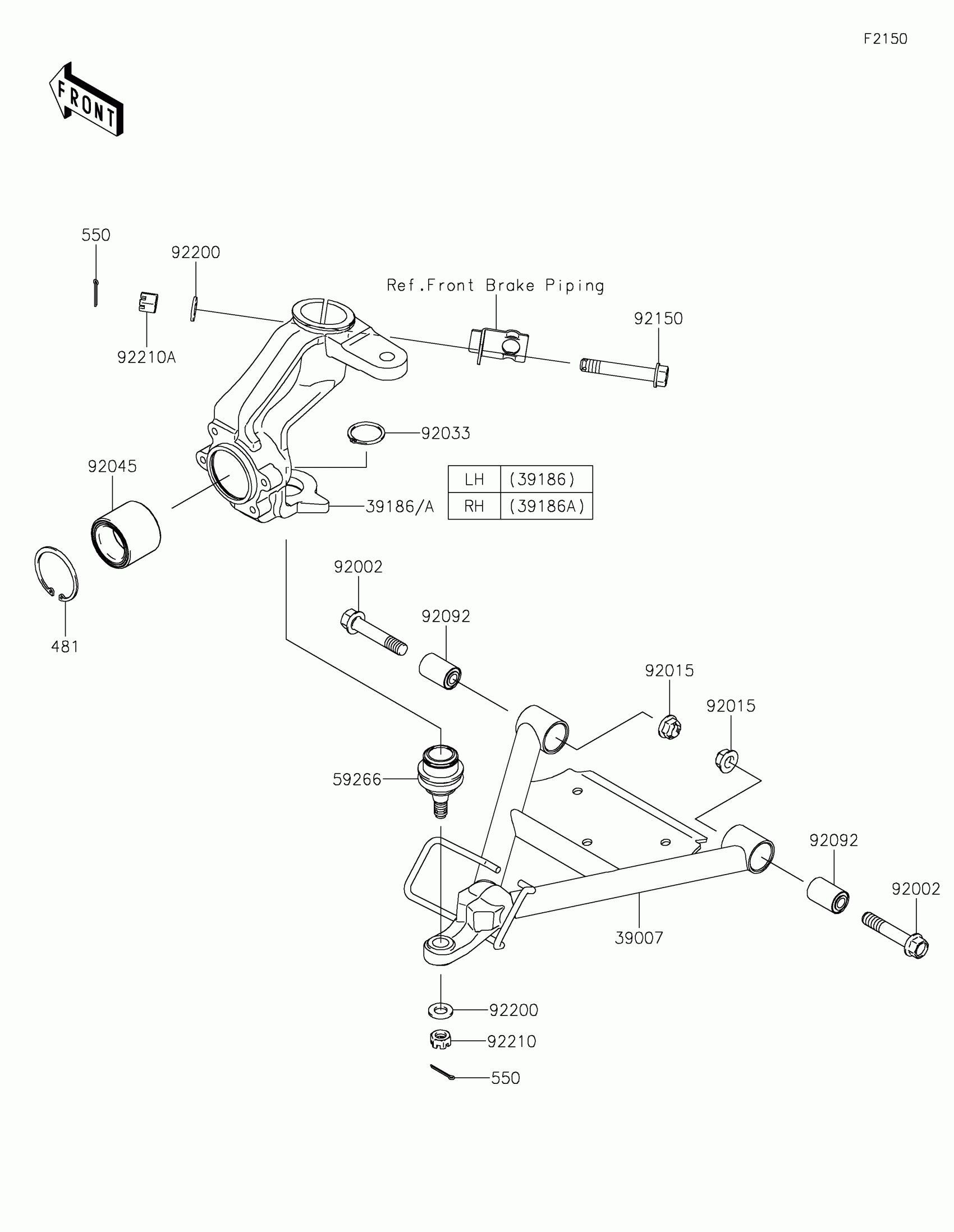

Find the part on the Suspension diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule SX™ 4x4 FE Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0397

1

$248.51

In stock

39186

KNUCKLE,LH

39186-0314

1

$162.31

In stock

39186A

KNUCKLE,RH

39186-0315

1

$162.31

In stock

59266

JOINT-BALL

59266-1080

1
Out of stock

92002

BOLT,ROD,12MM

92002-1757

1
Out of stock

92015

NUT

92015-1706

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92045

BEARING-BALL,DAC2552W-7CS31

92045-0028

1
Out of stock

92092

BUSHING-RUBBER

92092-005

1
Out of stock

92150

BOLT,FLANGED,12X72

92150-1356

1
Out of stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock

92210

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210A

NUT,12MM

92210-7501

1
Out of stock

481

CIRCLIP-TYPE-C,52MM

481J5200

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
