2023 Kawasaki Mule SX™ 4x4 Fe Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2023 Kawasaki Mule SX™ 4x4 Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

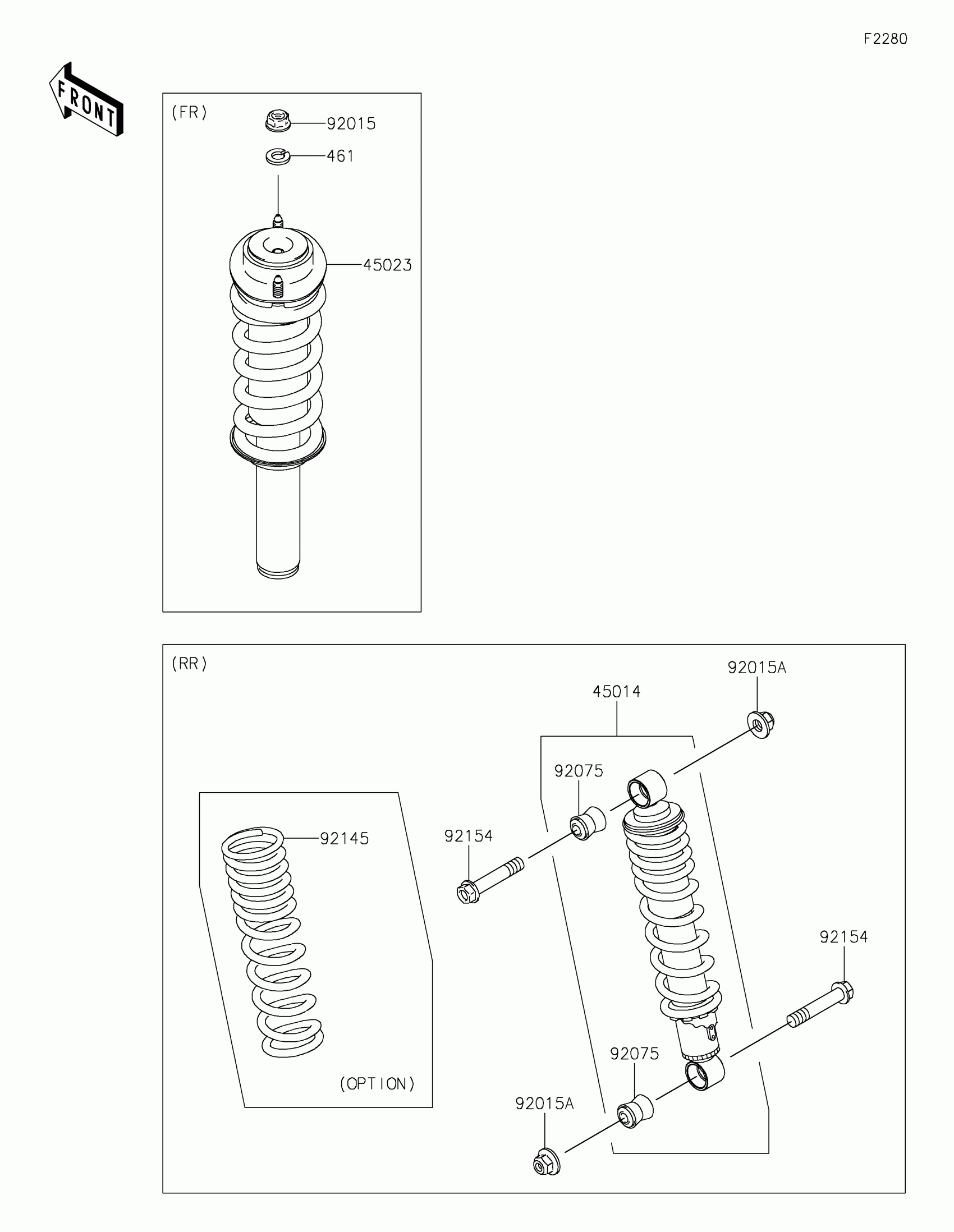

2023 Kawasaki Mule SX™ 4x4 Fe Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER

45014-0544

1
Out of stock

45023

STRUT

45023-0008

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92015A

NUT,LOCK,10MM

92015-1597

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1784

1
Out of stock

92145

SPRING,SHOCK,K=24.5/44.1N/MM

92145-0400

1
Out of stock

92154

BOLT,FLANGED,10X53.5

92154-1949

1
Out of stock

461

WASHER-SPRING,10MM

461DA1000

1
Out of stock
