Description

Price

11056

BRACKET,SHIFT LEVER

11056-2237

$51.80

13168

LEVER

13168-0069

$29.08

13236

LEVER-COMP,SHIFT

13236-0073

$41.05

21083

ARM

21083-0023

$52.78

46075

GRIP

46075-0012

$14.62

46075A

GRIP

46075-0014

$7.56

46075B

GRIP,SHIFT

46075-0046

$30.65

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92026

SPACER

92026-0074

$3.90

92027

COLLAR,4.5X6.5X9.3

92027-1313

$8.98

92028

BUSHING

92028-1507

$5.25

92043

PIN

92043-0053

$5.65

92043A

PIN,FOOTRST STEP FIT

92043-1069

$6.22

92081

SPRING

92081-1714

$4.26

92144

SPRING

92144-1510

$6.41

92145

SPRING

92145-0249

$7.76

92151

BOLT,6MM

92151-1747

$9.35

92160

DAMPER

92160-3754

$3.09

92171

CLAMP

92171-0365

$6.75

92172

SCREW

92172-7501

$2.41

130

BOLT-FLANGED,8X16

130BA0816

$1.12

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

318

NUT-HEX-SMALL

318BB0800

$3.94

411

WASHER-PLAIN,8MM

411AA0800

$0.96

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

554

PIN-SNAP

554DA0800

$1.36

554A

PIN-SNAP,10MM

554DA1000

$1.36

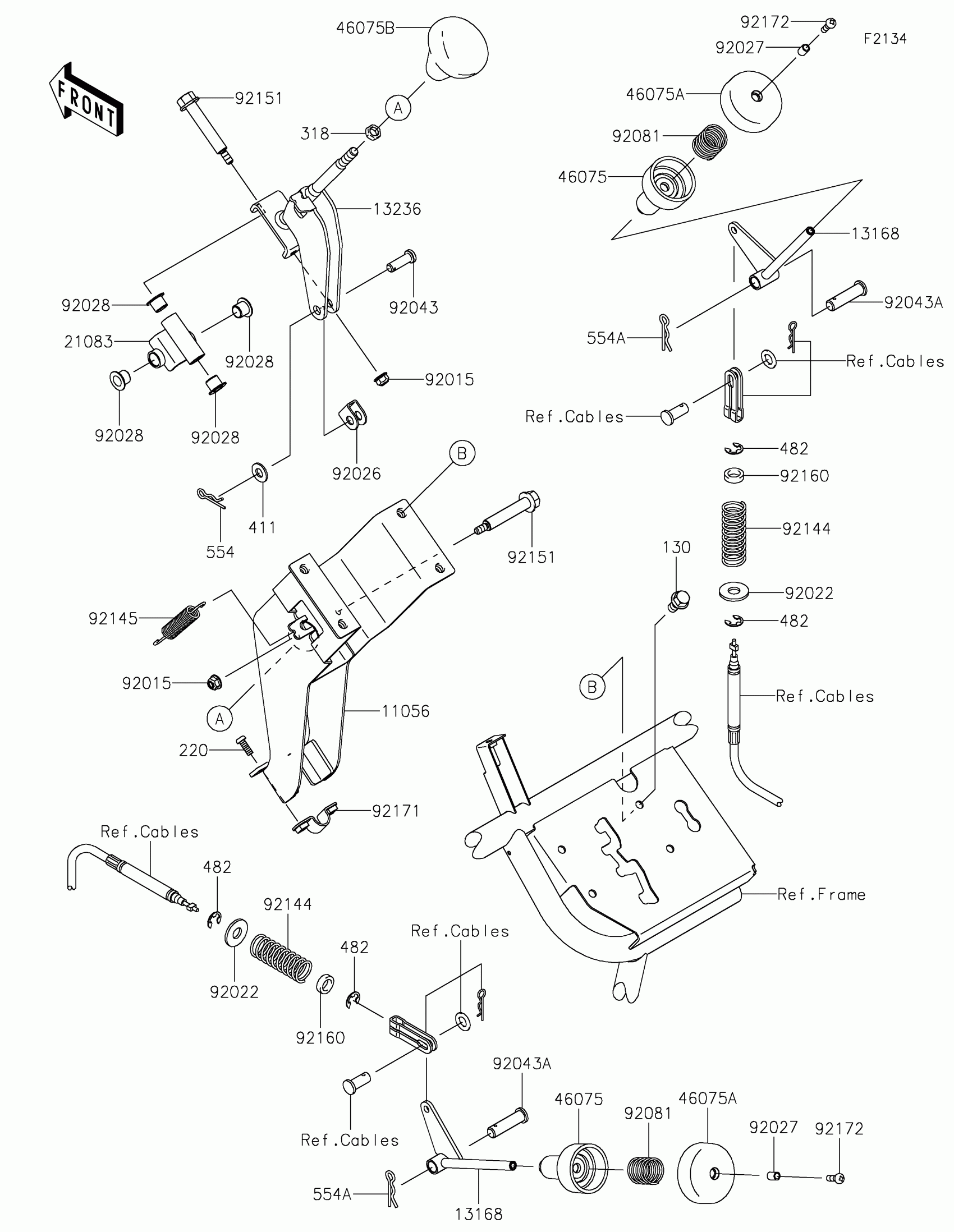

Kawasaki MULE SX™ 4x4 FE Shift Lever(s) Diagram

BRACKET,SHIFT LEVER

LEVER

LEVER-COMP,SHIFT

ARM

GRIP

GRIP

GRIP,SHIFT

NUT,LOCK,FLANGED,6MM

WASHER,10.5X26X2.3

SPACER

COLLAR,4.5X6.5X9.3

BUSHING

PIN

PIN,FOOTRST STEP FIT

SPRING

SPRING

SPRING

BOLT,6MM

DAMPER

CLAMP

SCREW

BOLT-FLANGED,8X16

SCREW-PAN-CROS,5X14

NUT-HEX-SMALL

WASHER-PLAIN,8MM

CIRCLIP-TYPE-E,8MM

PIN-SNAP

PIN-SNAP,10MM
