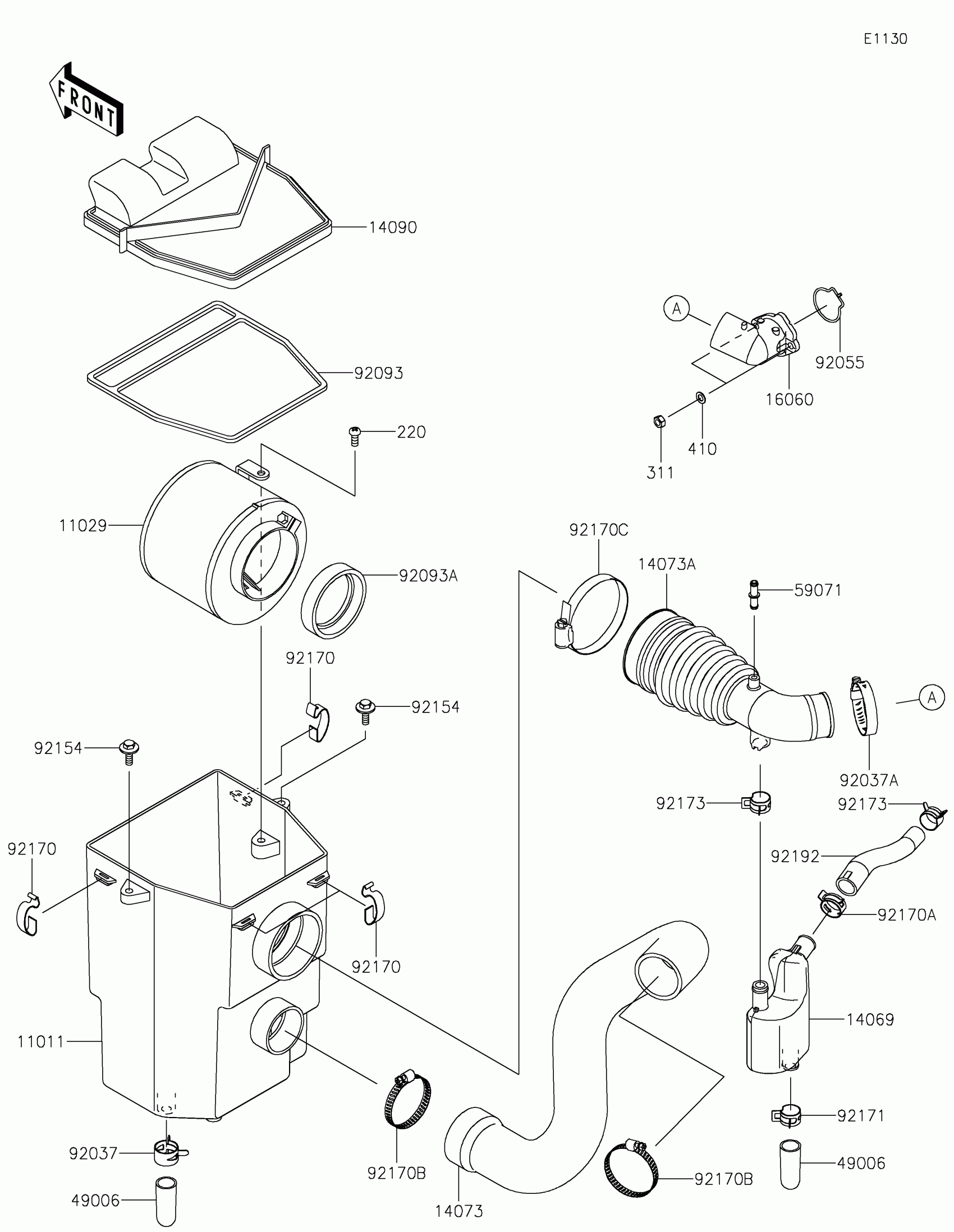

Kawasaki MULE SX™ 4x4 FE Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1367

$88.64

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$41.02

14069

BREATHER

14069-0030

$40.60

14073

DUCT,FRAME-AIR FILTER

14073-0072

$40.81

14073A

DUCT,AIR FILTER-IN.PIPE

14073-0893

$48.10

14090

COVER,AIR FILTER

14090-1106

$29.89

16060

PIPE-INTAKE

16060-0752

$11.77

49006

BOOT

49006-1351

$7.51

59071

JOINT

59071-3717

$3.55

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP

92037-506

$5.22

92055

RING-O,PIPE-TB

92055-0901

$7.57

92093

SEAL,AIR FILTER

92093-1241

$12.96

92093A

SEAL,DUST

92093-1322

$9.82

92154

BOLT,WP,6X20

92154-1516

$1.48

92170

CLAMP,AIR FILTER

92170-1211

$7.33

92170A

CLAMP

92170-1640

$2.26

92170B

CLAMP

92170-1674

$11.76

92170C

CLAMP

92170-1679

$6.63

92171

CLAMP

92171-1277

$2.75

92173

CLAMP

92173-7003

$2.12

92192

TUBE,BREATHER

92192-1935

$4.60

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

311

NUT-HEX,6MM

311AA0600

$0.96

410

WASHER-PLAIN-SMALL

410AA0600

$1.31
