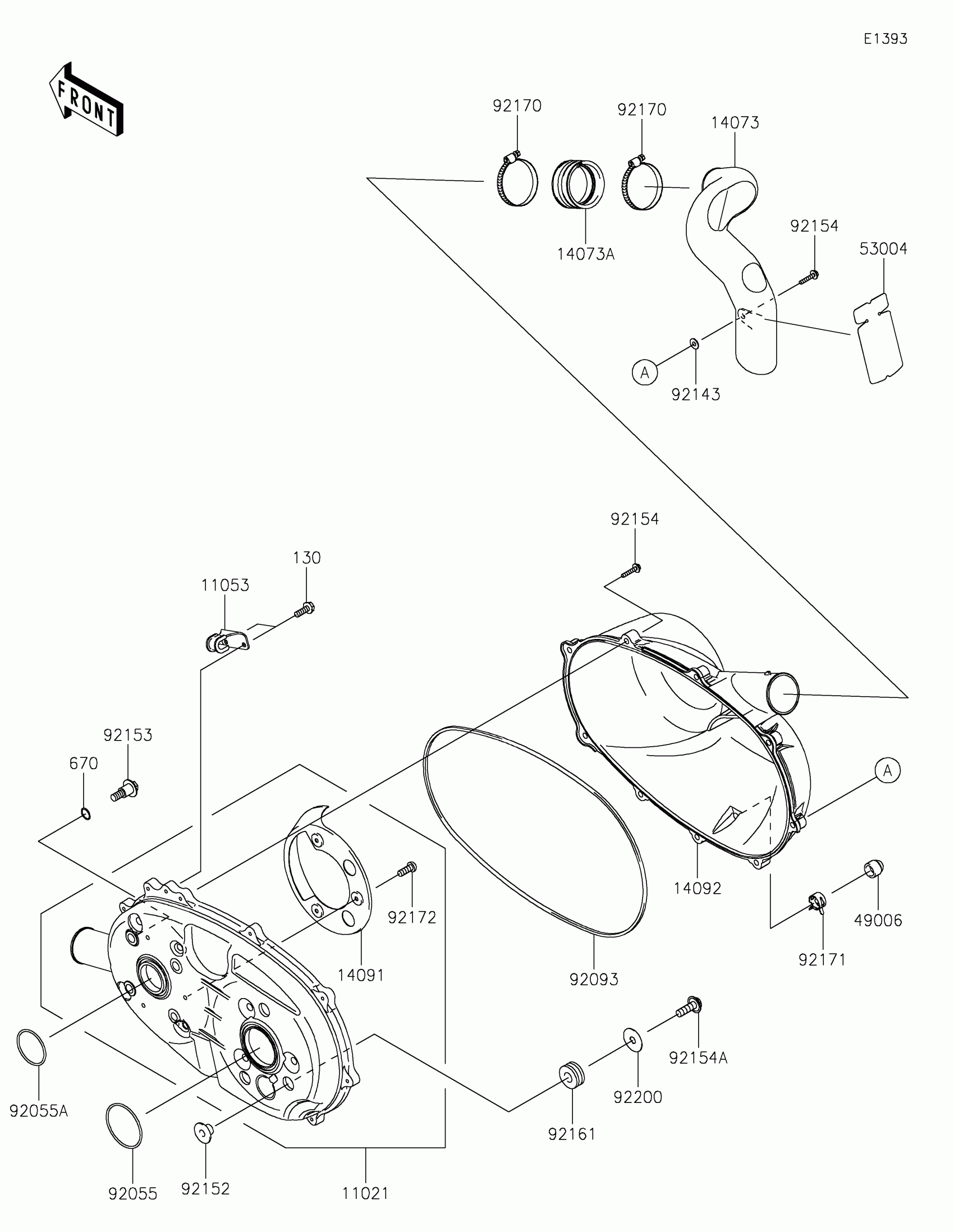

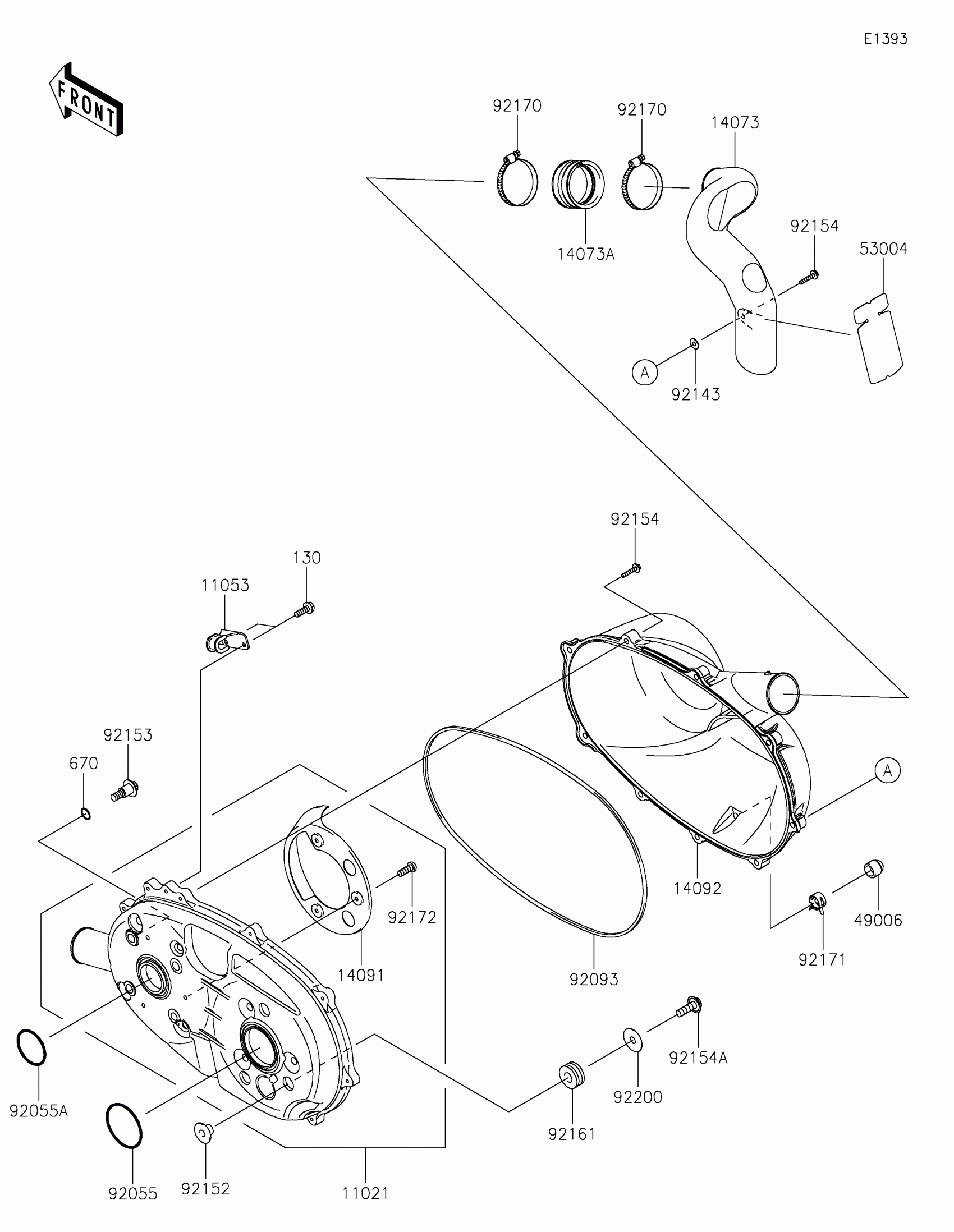

Kawasaki MULE SX™ 4x4 Converter Cover Diagram

Description

Price

11021

CASE-ASSY,BELT CONVERTER

11021-0023

$116.65

11053

BRACKET

11053-1483

$7.83

14073

DUCT,EXHAUST

14073-0287

$48.28

14073A

DUCT,JOINT

14073-1775

$4.36

14091

COVER

14091-0391

$25.24

14092

COVER,BELT CONVERTER

14092-1007

$99.45

49006

BOOT,DRAIN

49006-3718

$6.62

53004

MAT

53004-0051

$30.68

92055

RING-O,64MM

92055-0748

$7.24

92055A

RING-O,49.4MM

92055-0749

$5.65

92093

SEAL

92093-0586

$30.60

92143

COLLAR

92143-1087

$4.31

92152

COLLAR

92152-0894

$11.77

92153

BOLT,8X26.5

92153-0594

$4.60

92154

BOLT,6X35

92154-0342

$3.19

92154A

BOLT,FLANGED,8X25

92154-1068

$7.40

92161

DAMPER

92161-1484

$1.86

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0329

$8.89

92172

SCREW,5X14

92172-0166

$2.15

92200

WASHER,8.5X29X0.8

92200-0574

$5.33

130

BOLT-FLANGED,6X18

130BA0618

$1.54

670

O RING,12MM

670D2012

$2.77
