- MULE SX™ 4x4
Carrier(s)(-JK1AFEH1 KB508789)

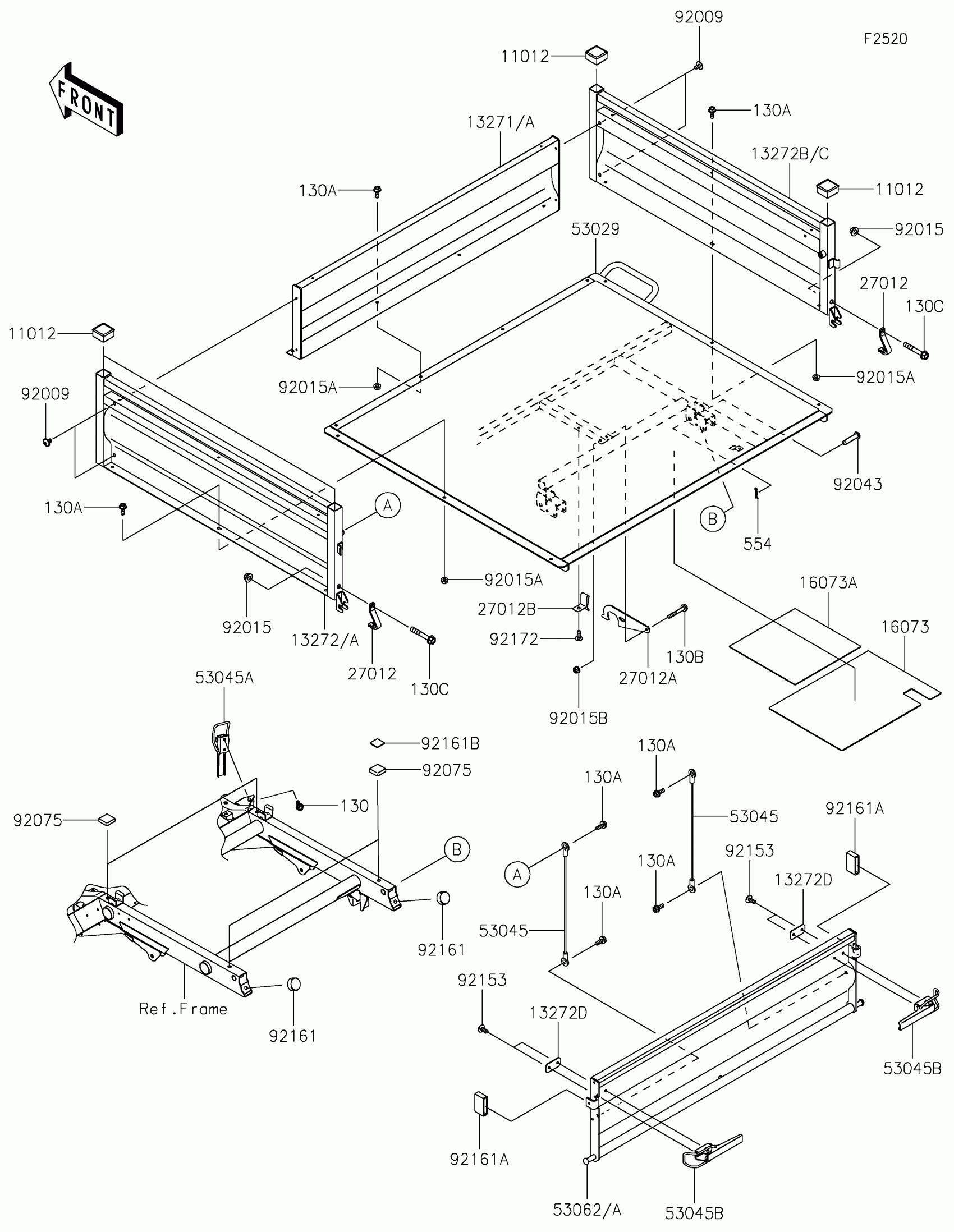

Kawasaki MULE SX™ 4x4 Carrier(s)(-JK1AFEH1 KB508789) Diagram
#
11012
CAP
11012-1784
$6.32
13271
PLATE,CARRIER,SIDE,FR,D.R.RED
13271-0385-16M
$200.06
13271A
PLATE,CARRIER,SIDE,FR,T.GREEN
13271-0385-42T
$200.06
13272
PLATE,SIDE CARRIER,LH,D.R.RED
13272-2098-16M
$207.31
13272A
PLATE,SIDE CARRIER,LH,T.GREEN
13272-2098-42T
$207.31
13272B
PLATE,SIDE CARRIER,RH,D.R.RED
13272-2099-16M
$207.31
13272C
PLATE,SIDE CARRIER,RH,T.GREEN
13272-2099-42T
$207.31
13272D
PLATE
13272-7516
$7.35
16073
INSULATOR,295X400
16073-0849
$50.56
16073A
INSULATOR,265X265
16073-0850
$45.30
27012
HOOK,TAIL GATE
27012-0022
$6.43
27012A
HOOK
27012-0044
$31.01
27012B
HOOK,CARRIER
27012-1445
$12.92
53029
CARRIER,BASE,T.BLACK
53029-0345-388
$1,247.97
53045
HOOK-ASSY,CABLE
53045-0030
$26.32
53045A
HOOK-ASSY
53045-0032
$23.27
53045B
HOOK-ASSY
53045-0033
$23.27
53062
GATE-TAIL,D.R.RED
53062-0024-16M
$288.08
53062A
GATE-TAIL,T.GREEN
53062-0024-42T
$288.08
92009
SCREW,6X10
92009-1661
$4.31
92015
NUT,FLANGED,8MM
92015-1014
$0.65
92015A
NUT,FLANGED,6MM
92015-1367
$3.69
92015B
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92043
PIN,12X54
92043-1451
$9.73
92075
DAMPER
92075-1882
$8.10
92153
BOLT,SOCKET,6X14
92153-1021
$2.67
92161
DAMPER
92161-1065
$3.73
92161A
DAMPER
92161-7519
$3.52
92161B
DAMPER
92161-7520
$0.85
92172
SCREW,TAPPING,6X16
92172-0739
$0.85
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,6X40
130BA0640
$1.20
130C
BOLT-FLANGED,8X50
130BA0850
$2.25
554
PIN-SNAP,12MM
554DA1200
$3.96
