- MULE PRO-MX™ EPS LE
Transmission

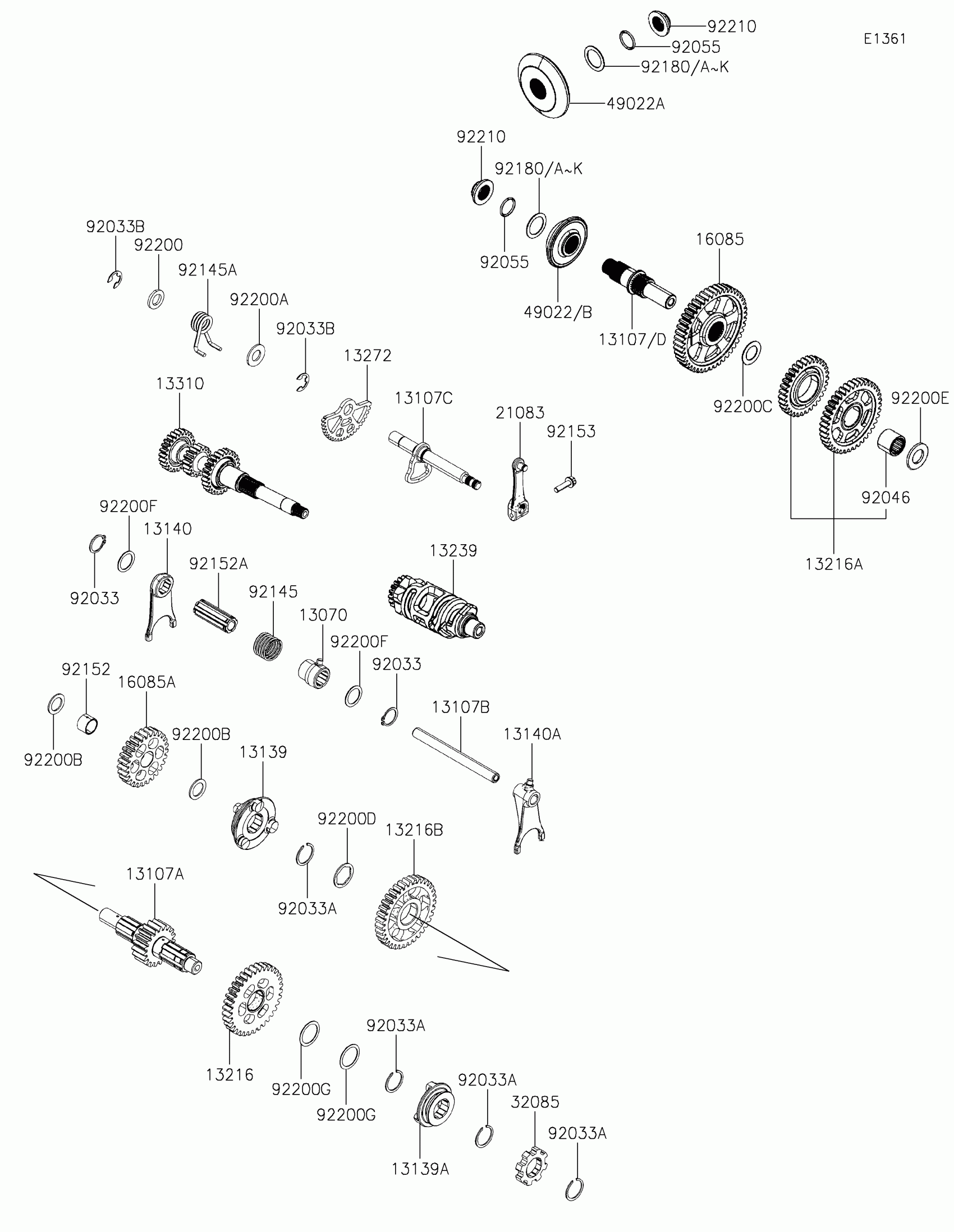

Kawasaki MULE PRO-MX™ EPS LE Transmission Diagram
#
13070
GUIDE,FORK-SHIFT,RH
13070-Y005
$29.86
13107
SHAFT,MAIN,A MARK
13107-Y025
$196.16
13107A
SHAFT,COUNTER,19T
13107-Y026
$150.37
13107B
SHAFT,SHIFT FORK GUIDE
13107-Y028
$19.51
13107C
SHAFT,GEAR SHIFT
13107-Y029
$76.70
13107D
SHAFT,MAIN,B MARK
13107-Y031
$196.16
13139
SHIFTER,FORWARD & LOWER
13139-Y003
$48.05
13139A
SHIFTER,BACKWARD
13139-Y004
$57.03
13140
FORK-SHIFT,RH
13140-Y003
$49.13
13140A
FORK-SHIFT,LH
13140-Y004
$108.14
13216
GEAR-COMP,BACKWARD 2ND DRIVEN
13216-Y005
$81.61
13216A
GEAR-COMP,BACKWARD
13216-Y006
$154.23
13216B
GEAR-COMP,LOWER DRIVE
13216-Y007
$71.99
13239
DRUM-ASSY-CHANGE
13239-Y002
$124.17
13272
PLATE,GEAR SHIFT
13272-Y029
$45.59
13310
SHAFT-ASSY,DRIVE
13310-Y001
$256.61
16085
GEAR,FINAL,46T
16085-Y015
$135.31
16085A
GEAR,FORWARD DRIVEN,27T
16085-Y016
$63.99
21083
ARM,GEAR SELECT ASSY
21083-Y005
$54.28
32085
STOPPER,PARK
32085-Y005
$21.42
49022
GEAR-BEVEL,DRIVE,A MARK
49022-Y004
$107.81
49022A
GEAR-BEVEL,DRIVEN
49022-Y005
$132.24
49022B
GEAR-BEVEL,DRIVE,B MARK
49022-Y006
$110.62
92033
RING-SNAP
92033-Y011
$1.29
92033A
RING-SNAP,28MM
92033-Y022
$2.28
92033B
RING-SNAP,12MM
92033-Y024
$2.01
92046
BEARING-NEEDLE,20X28X23
92046-Y011
$71.83
92055
RING-O,22MM
92055-Y061
$3.75
92145
SPRING
92145-Y060
$7.23
92145A
SPRING,RETURN
92145-Y061
$25.70
92152
COLLAR,20X17X14
92152-Y060
$11.02
92152A
COLLAR,FORK-SHIFT,RH
92152-Y061
$34.07
92153
BOLT,FLANGE,6X22
92153-Y026
$0.79
92180
SHIM,FINAL BEVEL GEAR,T=0.6
92180-Y032
$5.66
92180A
SHIM,FINAL BEVEL GEAR,T=0.65
92180-Y033
$5.66
92180B
SHIM,FINAL BEVEL GEAR,T=0.7
92180-Y034
$5.66
92180C
SHIM,FINAL BEVEL GEAR,T=0.75
92180-Y035
$5.66
92180D
SHIM,FINAL BEVEL GEAR,T=0.8
92180-Y036
$5.66
92180E
SHIM,FINAL BEVEL GEAR,T=0.85
92180-Y037
$5.66
92180F
SHIM,FINAL BEVEL GEAR,T=0.9
92180-Y038
$5.66
92180G
SHIM,FINAL BEVEL GEAR,T=0.95
92180-Y039
$5.66
92180H
SHIM,FINAL BEVEL GEAR,T=1.0
92180-Y040
$5.66
92180I
SHIM,FINAL BEVEL GEAR,T=1.05
92180-Y041
$5.66
92180J
SHIM,FINAL BEVEL GEAR,T=1.1
92180-Y042
$5.66
92180K
SHIM,FINAL BEVEL GEAR,T=1.15
92180-Y043
$5.66
92200
WASHER,THRUST,14X28X2
92200-Y072
$25.48
92200A
WASHER,14MM
92200-Y077
$2.37
92200B
WASHER,THRUST,17MM
92200-Y078
$3.75
92200C
WASHER,THRUST,20X33X1
92200-Y079
$5.66
92200D
WASHER,25X31X1.5
92200-Y080
$3.75
92200E
WASHER,THRUST,20X36X3
92200-Y081
$8.60
92200F
WASHER,THRUST,20MM
92200-Y082
$3.75
92200G
WASHER,25X31X0.8
92200-Y083
$4.92
92210
NUT,FLANGE,20MM
92210-Y084
$17.61
