- Partiron
- OEM Parts
- Kawasaki
- side-x-side
- 2020
- MULE PRO-MX™ EPS LE
Seat(CLF)

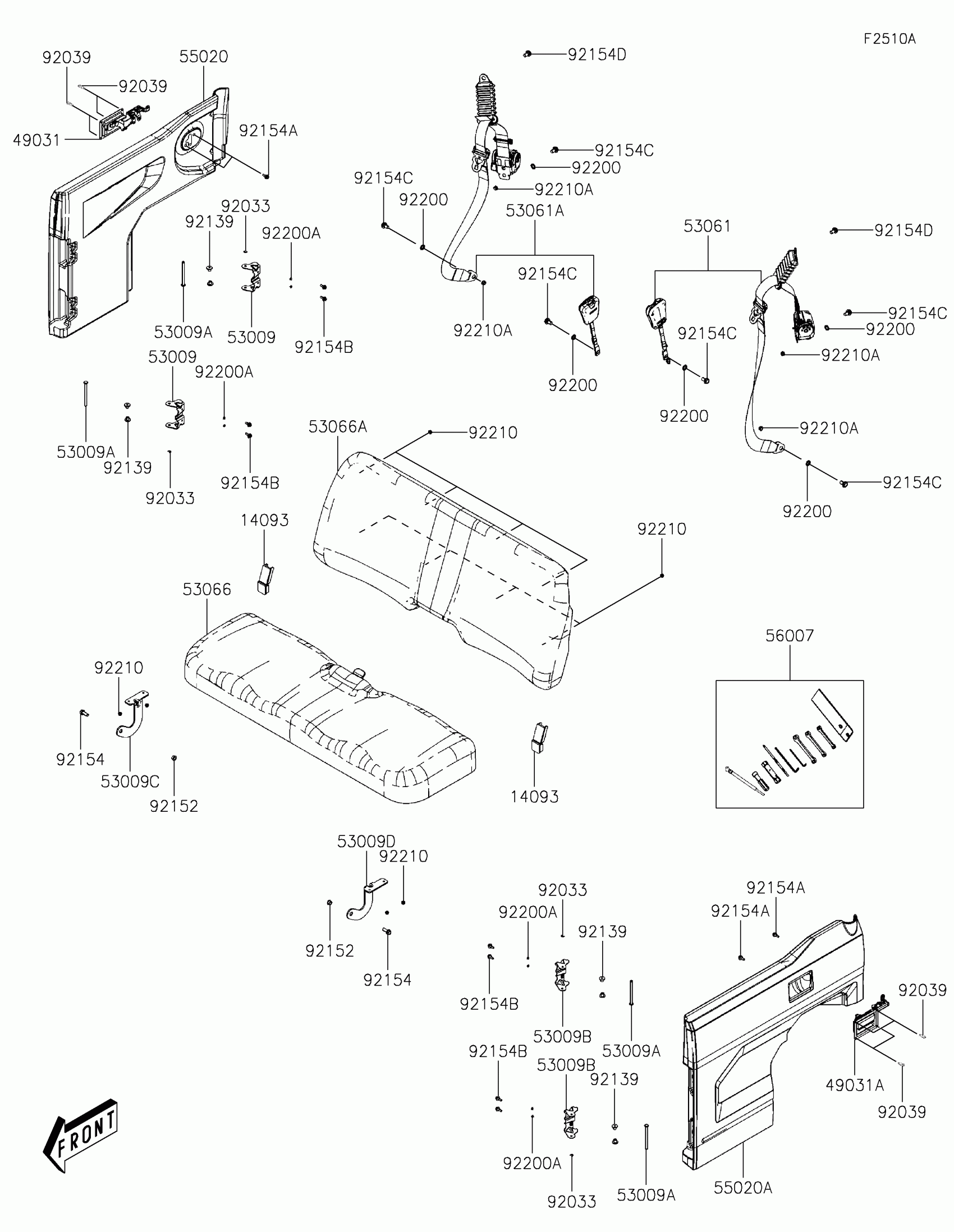

Kawasaki MULE PRO-MX™ EPS LE Seat(CLF) Diagram
#
Description
Price
14093
COVER,SEAT
14093-Y028
$11.37
49031
LATCH,RH
49031-Y001
$127.66
49031A
LATCH,LH
49031-Y002
$127.66
53009
HINGE,RH
53009-Y002
$35.02
53009A
HINGE
53009-Y003
$3.20
53009B
HINGE,LH
53009-Y004
$35.02
53009C
HINGE,SEAT,RH
53009-Y005
$38.25
53009D
HINGE,SEAT,LH
53009-Y006
$38.25
53061
BELT-SEAT,LH
53061-Y001
$311.02
53061A
BELT-SEAT,RH
53061-Y002
$311.02
53066
SEAT-ASSY,BOTTOM
53066-Y006
$387.15
53066A
SEAT-ASSY,BACK
53066-Y008
$345.42
55020
GUARD,RH,S.BLACK
55020-Y020-933
$130.05
55020A
GUARD,LH,S.BLACK
55020-Y021-933
$130.05
56007
TOOL-KIT
56007-Y005
$54.88
92033
RING-SNAP
92033-Y040
$2.92
92039
RIVET,4.8X12.8
92039-Y005
$5.11
92139
BUSHING
92139-Y014
$1.68
92152
COLLAR
92152-Y066
$2.84
92154
BOLT,FLANGE,10X25
92154-Y139
$5.03
92154A
BOLT,FLANGE,6X14
92154-Y153
$1.48
92154B
BOLT,FLANGE,6X18
92154-Y154
$2.60
92154C
BOLT
92154-Y170
$4.39
92154D
BOLT
92154-Y171
$3.60
92200
WASHER,12MM
92200-Y096
$5.66
92200A
WASHER,DOOR
92200-Y105
$2.53
92210
NUT,6MM
92210-Y026
$1.40
92210A
NUT
92210-Y081
$1.57
