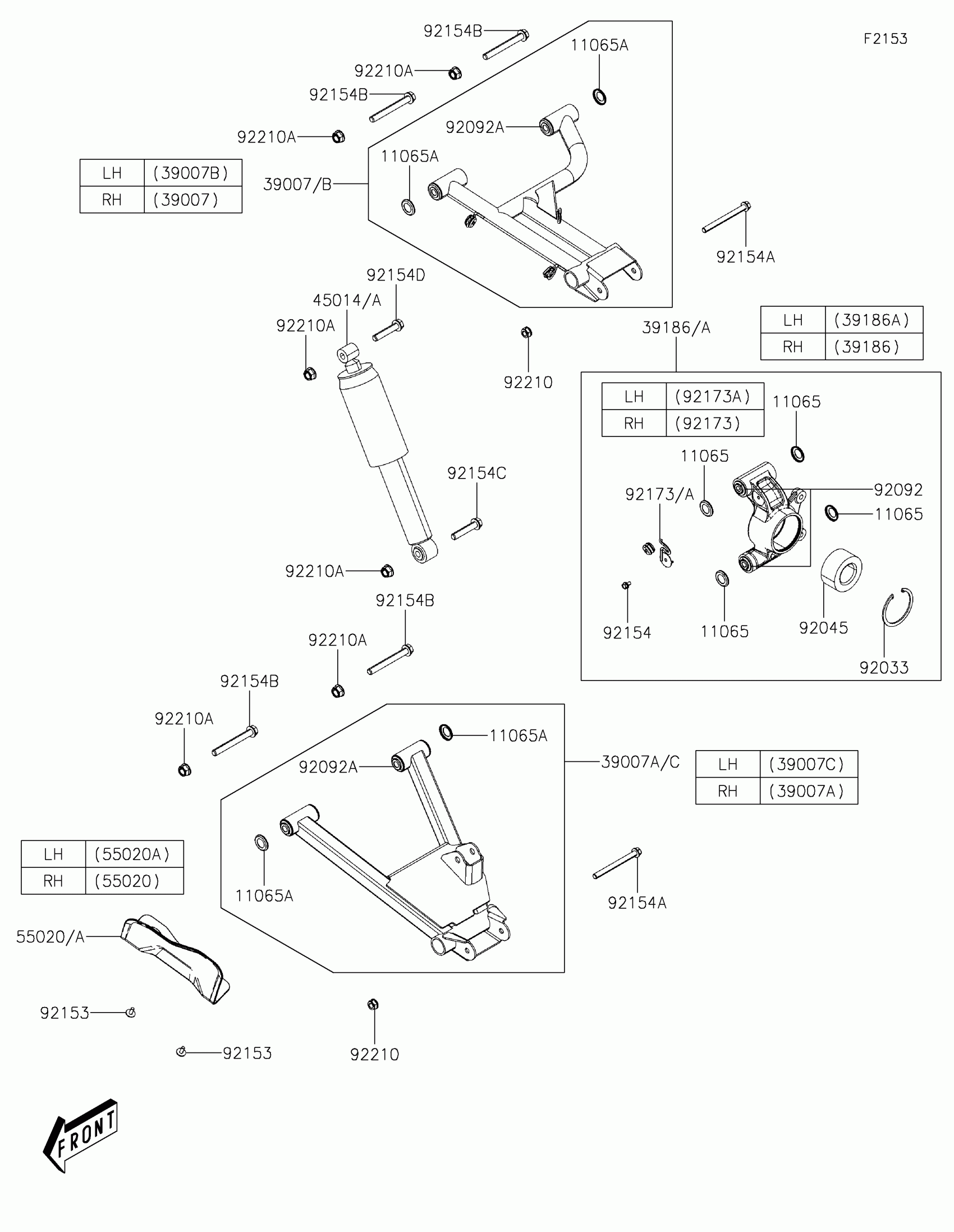

Kawasaki MULE PRO-MX™ EPS LE Rear Suspension Diagram

Description

Price

11065

CAP

11065-Y038

$6.36

11065A

CAP,ARM

11065-Y039

$2.09

39007

ARM-SUSP,RR,UPP,RH

39007-Y014

$120.57

39007A

ARM-SUSP,RR,LWR,RH

39007-Y015

$164.09

39007B

ARM-SUSP,RR,UPP,LH

39007-Y016

$120.57

39007C

ARM-SUSP,RR.LWR,LH

39007-Y017

$164.09

39186

KNUCKLE,RR,RH

39186-Y006

$425.28

39186A

KNUCKLE,RR,LH

39186-Y008

$425.28

45014

SHOCKABSORBER,RR

45014-Y009

$547.13

45014A

SHOCKABSORBER,RR

45014-Y011

$346.52

55020

GUARD,RR,RH,S.BLACK

55020-Y018-933

$9.02

55020A

GUARD,RR,LH,S.BLACK

55020-Y019-933

$9.02

92033

RING-SNAP

92033-Y039

$11.95

92045

BEARING-BALL,40X74X36

92045-0897

$63.57

92092

BUSHING-RUBBER

92092-Y004

$40.07

92092A

BUSHING-RUBBER

92092-Y005

$36.30

92153

BOLT,6X16

92153-Y018

$1.30

92154

BOLT,FLANGE,6X6

92154-Y192

$2.92

92154A

BOLT,FLANGE,10X110

92154-Y199

$8.63

92154B

BOLT,FLANGE,12X100

92154-Y202

$12.78

92154C

BOLT,FLANGE,12X60

92154-Y203

$9.72

92154D

BOLT,FLANGE,12X55

92154-Y204

$9.72

92173

CLAMP,KNUCKLE,RH

92173-Y070

$4.83

92173A

CLAMP,KNUCKLE,LH

92173-Y072

$4.83

92210

NUT,10MM

92210-Y009

$3.12

92210A

NUT,FLANGE,12MM

92210-Y090

$8.81
