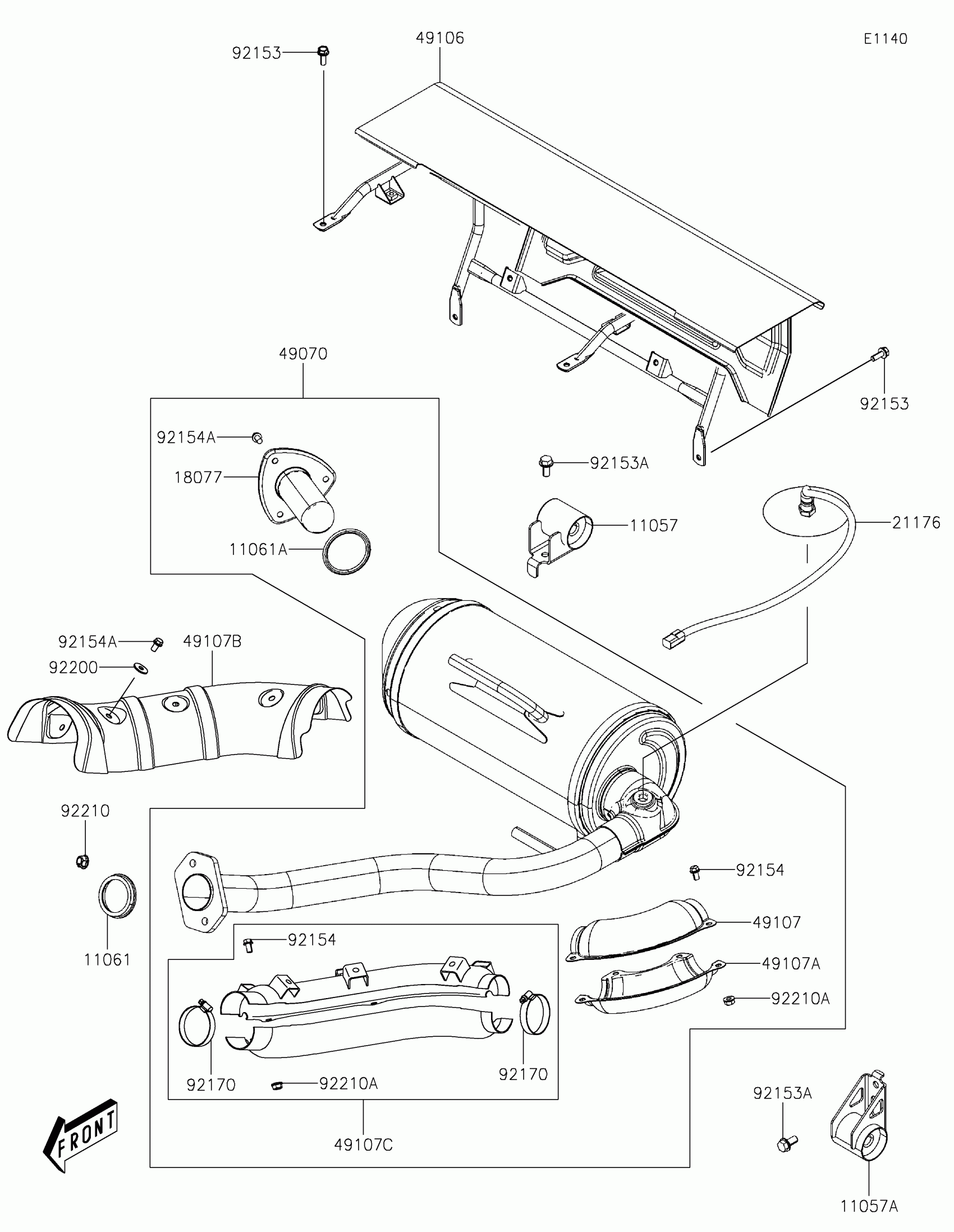

Kawasaki MULE PRO-MX™ EPS LE Muffler(s) Diagram

Description

Price

11057

BRACKET

11057-Y001

$93.13

11057A

BRACKET

11057-Y002

$84.41

11061

GASKET,EXHAUST PIPE

11061-Y065

$12.73

11061A

GASKET,SPARK ARRESTER

11061-Y066

$23.27

18077

ARRESTER-SPARK

18077-Y003

$196.39

21176

SENSOR,OXYGEN

21176-0888

$230.72

49070

MUFFLER-COMP

49070-Y001

$704.92

49106

COVER-MUFFLER

49106-Y005

$165.30

49107

COVER-EXHAUST PIPE,RR,UPP

49107-Y005

$21.15

49107A

COVER-EXHAUST PIPE,RR,LWR

49107-Y006

$21.15

49107B

COVER-EXHAUST PIPE,UPP

49107-Y009

$85.83

49107C

COVER-EXHAUST PIPE,FR,UPP&LWR

49107-Y010

$150.18

92153

BOLT,FLANGE,6X12

92153-Y023

$0.76

92153A

BOLT,FLANGE,8X16

92153-Y032

$1.47

92154

BOLT,FLANGE,6X10

92154-Y166

$3.60

92154A

BOLT,FLANGE,6X12

92154-Y225

$5.38

92170

CLAMP

92170-1674

$11.76

92200

WASHER,6.5X17.7X1.5

92200-Y104

$2.79

92210

NUT,8MM

92210-Y076

$0.68

92210A

NUT,FLANGE,6MM

92210-Y098

$2.92
