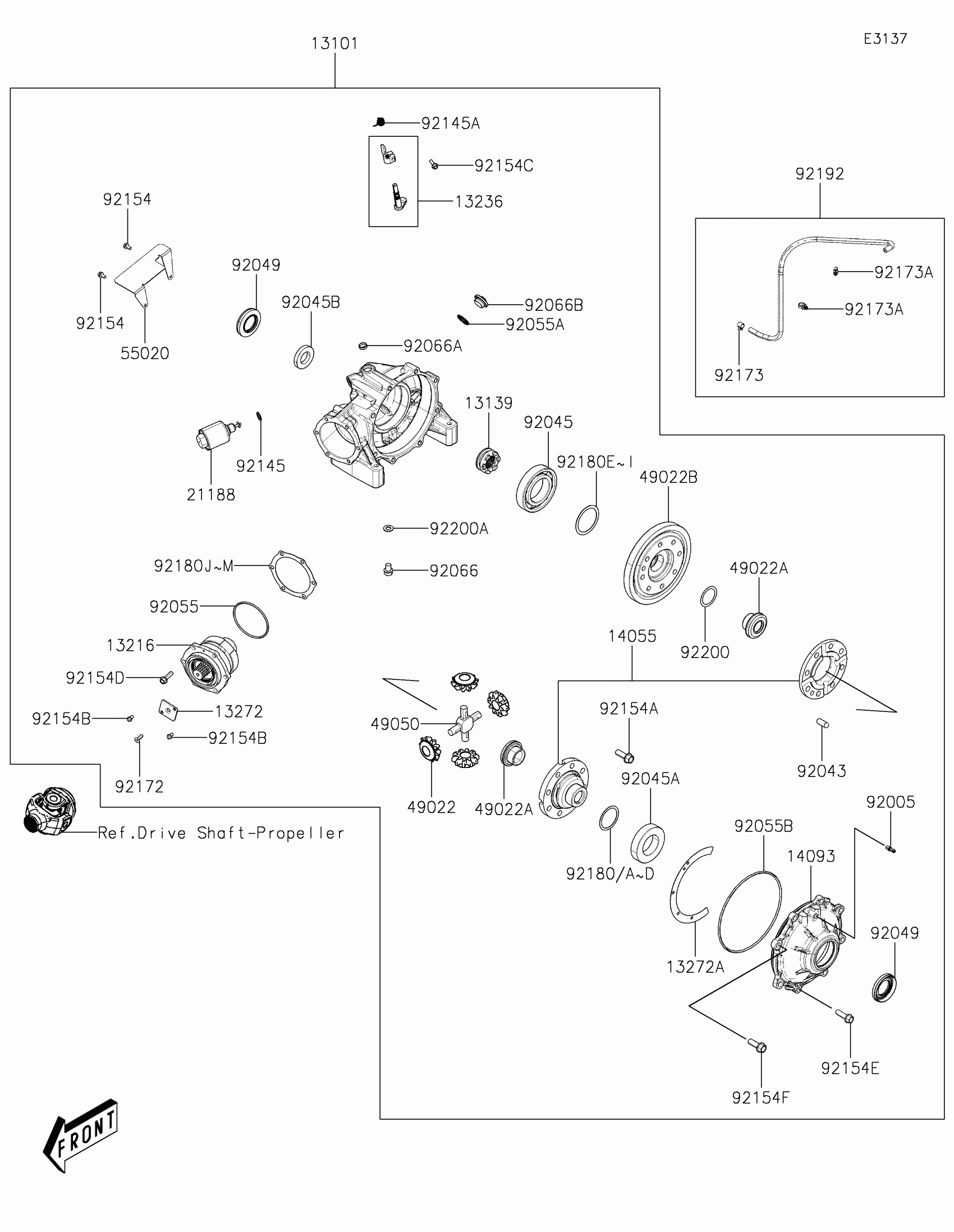

Kawasaki MULE PRO-MX™ EPS LE Drive Shaft-Rear Diagram

#

Description
Price

13101

GEAR-ASSY,RR

13101-Y003

$1,958.02

13139

SHIFTER

13139-Y005

$172.24

13216

GEAR-COMP

13216-Y008

$265.49

13236

LEVER-COMP

13236-Y001

$47.94

13272

PLATE

13272-Y037

$9.29

13272A

PLATE

13272-Y038

$24.52

14055

CASE-GEAR,SET

14055-Y006

$371.34

14093

COVER

14093-Y049

$296.36

21188

SOLENOID

21188-Y001

$218.99

49022

GEAR-BEVEL,10T

49022-0572

$91.57

49022A

GEAR-BEVEL,16T

49022-0622

$30.78

49022B

GEAR-BEVEL,35T

49022-0628

$548.27

49050

SPIDER

49050-Y002

$170.92

55020

GUARD,DIFF

55020-Y009

$20.57

92005

FITTING

92005-Y001

$22.36

92043

PIN

92043-Y048

$10.81

92045

BEARING-BALL,6212

92045-0766

$64.48

92045A

BEARING-BALL,6210CM

92045-1213

$55.61

92045B

BEARING-BALL,16007

92045-1230

$30.12

92049

SEAL-OIL,40X68X13.5

92049-0806

$10.52

92055

RING-O

92055-Y067

$12.09

92055A

RING-O

92055-Y068

$4.67

92055B

RING-O

92055-Y069

$20.13

92066

PLUG,DRAIN

92066-Y003

$3.57

92066A

PLUG

92066-Y020

$8.44

92066B

PLUG

92066-Y021

$46.79

92145

SPRING

92145-Y069

$9.85

92145A

SPRING

92145-Y070

$12.09

92154

BOLT,FLANGE,6X14

92154-Y153

$1.48

92154A

BOLT

92154-Y214

$10.81

92154B

BOLT

92154-Y215

$7.53

92154C

BOLT,FLANGE

92154-Y216

$7.53

92154D

BOLT,FLANGE,8X30

92154-Y218

$4.92

92154E

BOLT,FLANGE,10X35

92154-Y220

$10.81

92154F

BOLT,FLANGE,12X35

92154-Y221

$10.81

92172

SCREW

92172-Y087

$5.38

92173

CLAMP,10.5

92173-Y023

$3.71

92173A

CLAMP

92173-Y078

$2.15

92180

SHIM,T=1.2

92180-Y044

$6.64

92180A

SHIM,T=1.5

92180-Y045

$7.04

92180B

SHIM,T=1.6

92180-Y046

$7.04

92180C

SHIM,T=1.3

92180-Y047

$7.04

92180D

SHIM,T=1.4

92180-Y048

$7.04

92180E

SHIM,T=1.0

92180-Y050

$7.04

92180F

SHIM,T=1.1

92180-Y051

$9.29

92180G

SHIM,T=1.2

92180-Y052

$9.29

92180H

SHIM,T=1.3

92180-Y053

$9.85

92180I

SHIM,T=1.4

92180-Y054

$10.55

92180J

SHIM,T=1.0

92180-Y056

$17.06

92180K

SHIM,T=0.1

92180-Y057

$17.06

92180L

SHIM,T=0.2

92180-Y058

$17.06

92180M

SHIM,T=0.3

92180-Y059

$17.06

92192

TUBE,GEAR CASE

92192-Y072

$23.34

92200

WASHER

92200-Y098

$9.29

92200A

WASHER

92200-Y099

$2.79
