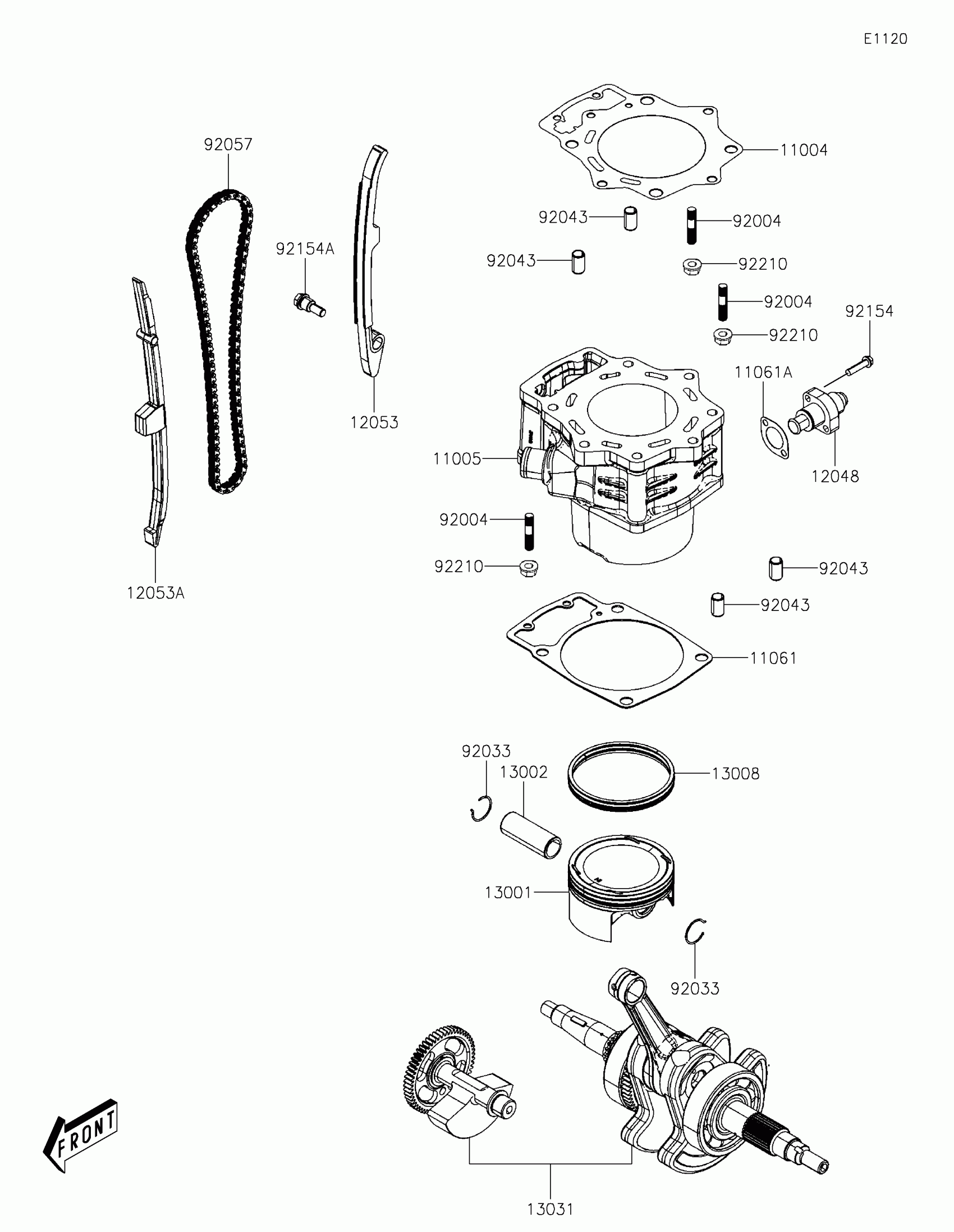

Kawasaki MULE PRO-MX™ EPS LE Cylinder/Piston(s) Diagram

Description

Price

11004

GASKET-HEAD

11004-Y006

$73.05

11005

CYLINDER-ENGINE

11005-Y006

$417.80

11061

GASKET,CYLINDER BASE

11061-Y062

$57.12

11061A

GASKET,TENSIONER

11061-Y063

$6.36

12048

TENSIONER-ASSY

12048-Y007

$65.30

12053

GUIDE-CHAIN,TENSIONER

12053-Y011

$50.34

12053A

GUIDE-CHAIN,CAM CHAIN

12053-Y012

$44.91

13001

PISTON-ENGINE

13001-Y006

$139.29

13002

PIN-PISTON

13002-Y006

$29.07

13008

RING-SET-PISTON

13008-Y006

$58.63

13031

CRANKSHAFT-COMP

13031-Y006

$847.95

92004

STUD,8X40

92004-Y019

$9.61

92033

RING-SNAP

92033-Y044

$3.09

92043

PIN,12X20

92043-Y027

$2.46

92057

CHAIN,CAM

92057-Y011

$99.90

92154

BOLT,FLANGE,6X25

92154-Y066

$2.39

92154A

BOLT,CAM CHAIN TENSIONER

92154-Y164

$4.37

92210

NUT,8MM

92210-Y028

$0.79
