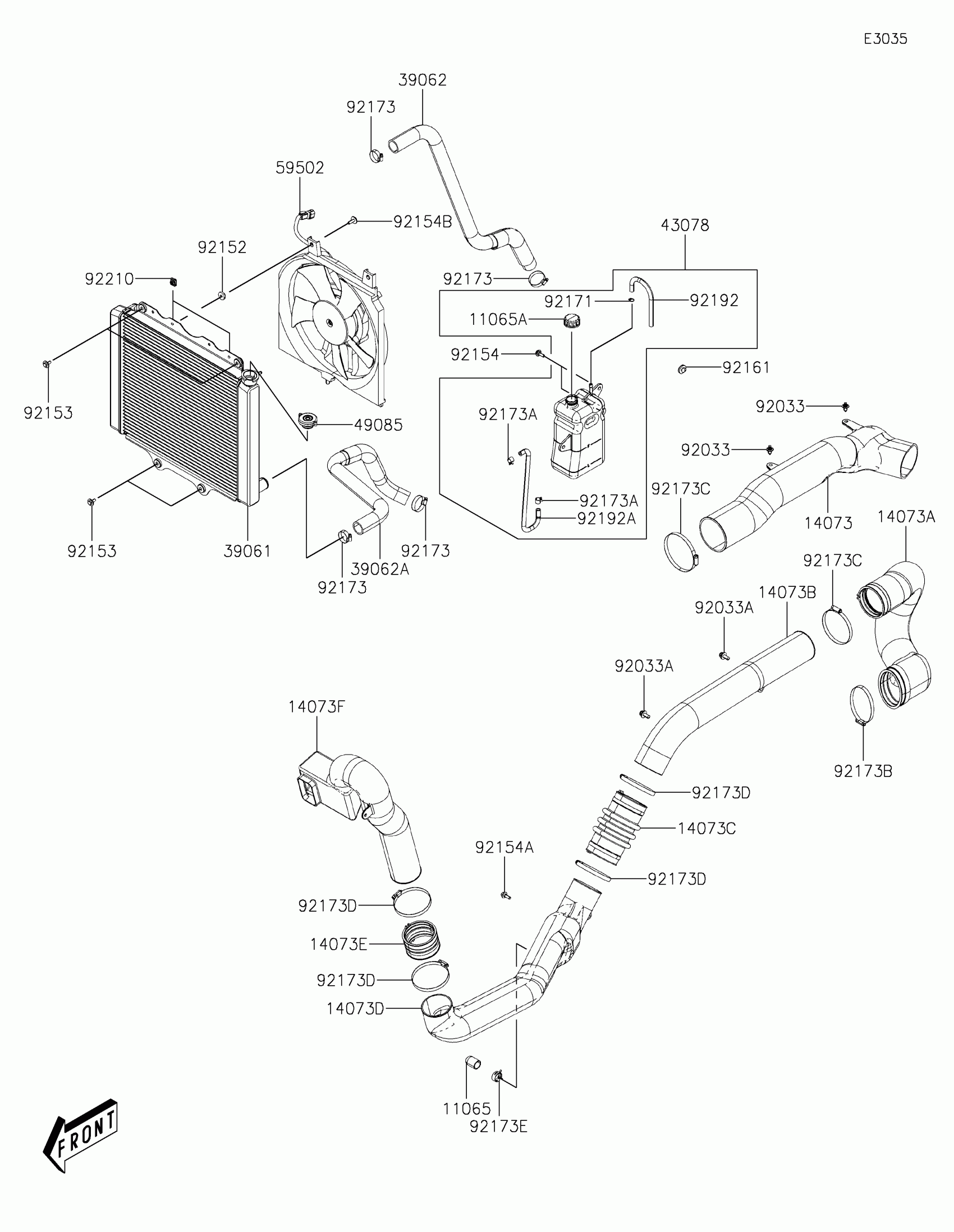

Kawasaki MULE PRO-MX™ EPS LE Cooling Diagram
#
Description
Price
11065
CAP,DRAIN
11065-Y036
$1.26
11065A
CAP,RESERVE TANK
11065-Y037
$4.77
14073
DUCT
14073-Y011
$64.89
14073A
DUCT,INTAKE
14073-Y012
$105.92
14073B
DUCT,INTAKE
14073-Y013
$63.49
14073C
DUCT,INTAKE
14073-Y014
$44.40
14073D
DUCT,INTAKE
14073-Y015
$80.28
14073E
DUCT,INTAKE
14073-Y016
$19.44
14073F
DUCT,INTAKE
14073-Y017
$65.31
39061
RADIATOR-ASSY
39061-Y004
$320.63
39062
HOSE-COOLING
39062-Y016
$82.97
39062A
HOSE-COOLING
39062-Y017
$76.68
43078
RESERVOIR
43078-Y004
$81.18
49085
CAP-ASSY-PRESSURE
49085-Y005
$20.05
59502
FAN-ASSY
59502-Y003
$242.93
92033
RING-SNAP
92033-Y033
$2.37
92033A
RING-SNAP
92033-Y035
$5.66
92152
COLLAR
92152-Y072
$8.60
92153
BOLT,6X20
92153-Y019
$1.30
92154
BOLT,6X18
92154-Y177
$5.66
92154A
BOLT,FLANGE,6MM
92154-Y180
$5.28
92154B
BOLT,6X22
92154-Y191
$5.66
92161
DAMPER
92161-Y048
$7.09
92171
CLAMP
92171-Y011
$0.79
92173
CLAMP,28.6MM
92173-1205
$4.92
92173A
CLAMP,10.5
92173-Y023
$3.71
92173B
CLAMP
92173-Y062
$15.64
92173C
CLAMP
92173-Y064
$13.47
92173D
CLAMP
92173-Y066
$13.91
92173E
CLAMP
92173-Y082
$8.60
92192
TUBE,DRAIN
92192-Y069
$11.10
92192A
TUBE
92192-Y070
$59.11
92210
NUT,6MM
92210-Y089
$5.66
