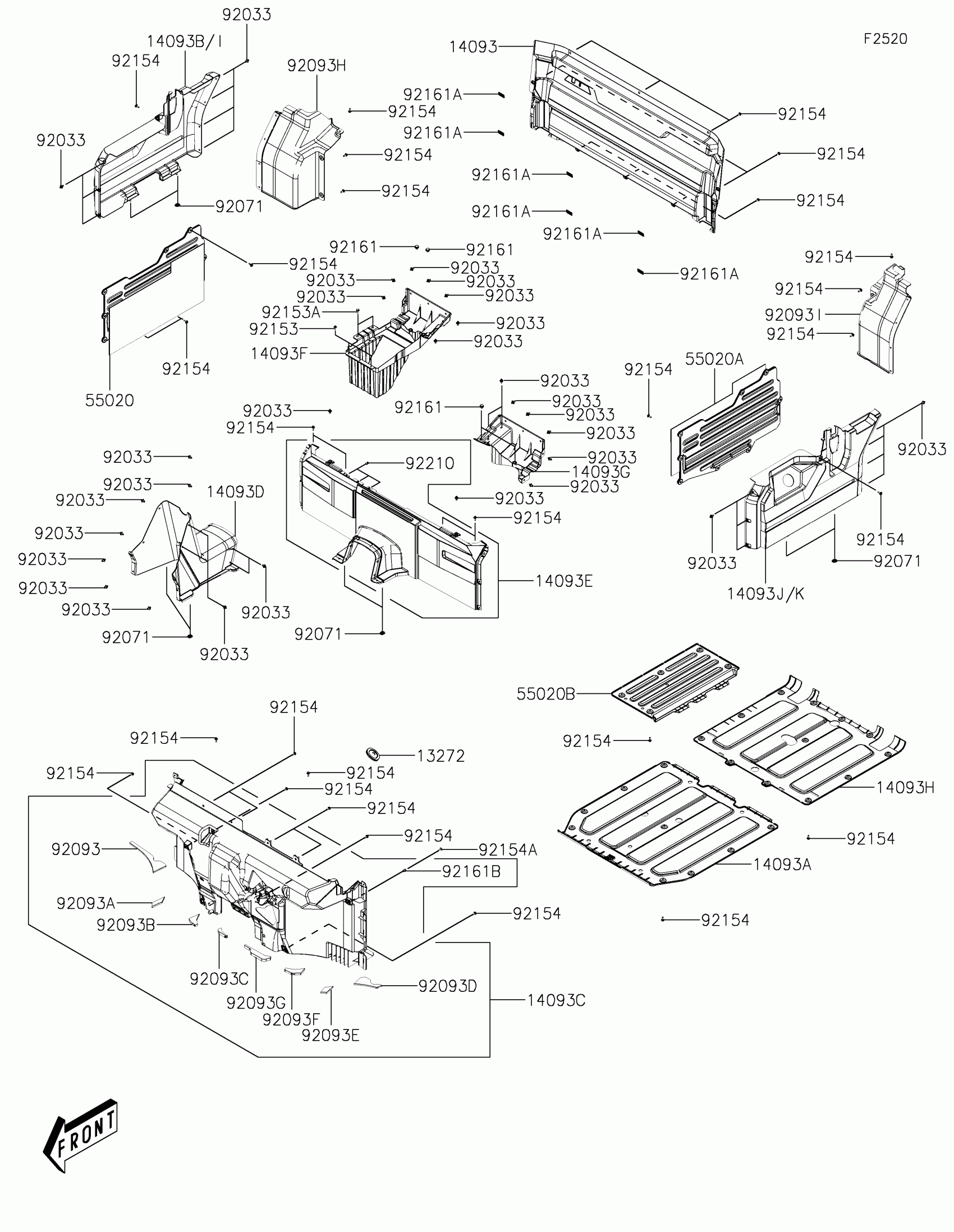

Kawasaki MULE PRO-MX™ EPS LE Carrier(s) Diagram

#

Description
Price

13272

PLATE,FRONT TIRE HOUSE

13272-Y032

$15.01

14093

COVER,BACK,S.BLACK

14093-Y010-933

$166.37

14093A

COVER,UNDER,FR,S.BLACK

14093-Y018-933

$129.33

14093B

COVER,SIDE,RH,S.BLACK

14093-Y022-933

$111.71

14093C

COVER,FR FLOOR,S.BLACK

14093-Y023-933

$372.09

14093D

COVER,TUNNEL,S.BLACK

14093-Y025-933

$74.27

14093E

COVER,CNT,S.BLACK

14093-Y026-933

$227.34

14093F

COVER,HEAT GUARD,RH

14093-Y027

$69.46

14093G

COVER,HEAT GUARD,LH

14093-Y029

$23.23

14093H

COVER,UNDER,RR,S.BLACK

14093-Y030-933

$133.68

14093I

COVER,SIDE,RH,S.BLACK

14093-Y038-933

Unavailable

14093J

COVER,SIDE,LH,S.BLACK

14093-Y052-933

$111.71

14093K

COVER,SIDE,LH,S.BLACK

14093-Y054-933

Unavailable

55020

GUARD,HEAT,RH

55020-Y013

$209.18

55020A

GUARD,HEAT,LH

55020-Y014

$209.18

55020B

GUARD,BOOT,S.BLACK

55020-Y017-933

$56.17

92033

RING-SNAP

92033-Y033

$2.37

92071

GROMMET

92071-Y006

$3.01

92093

SEAL

92093-Y035

$24.11

92093A

SEAL

92093-Y036

$27.23

92093B

SEAL

92093-Y037

$7.53

92093C

SEAL

92093-Y038

$5.94

92093D

SEAL

92093-Y039

$9.72

92093E

SEAL

92093-Y040

$43.57

92093F

SEAL

92093-Y041

$10.71

92093G

SEAL

92093-Y042

$14.88

92093H

SEAL

92093-Y043

$46.94

92093I

SEAL

92093-Y044

$46.94

92153

BOLT,5X16

92153-Y013

$0.76

92153A

BOLT,FLANGE,8X16

92153-Y032

$1.47

92154

BOLT,6X18

92154-Y177

$5.66

92154A

BOLT,5X22

92154-Y186

$2.37

92161

DAMPER

92161-Y014

$2.53

92161A

DAMPER

92161-Y045

$4.96

92161B

DAMPER

92161-Y054

$5.66

92210

NUT,5MM

92210-Y016

$1.40
