Brake Pedal/Throttle Lever

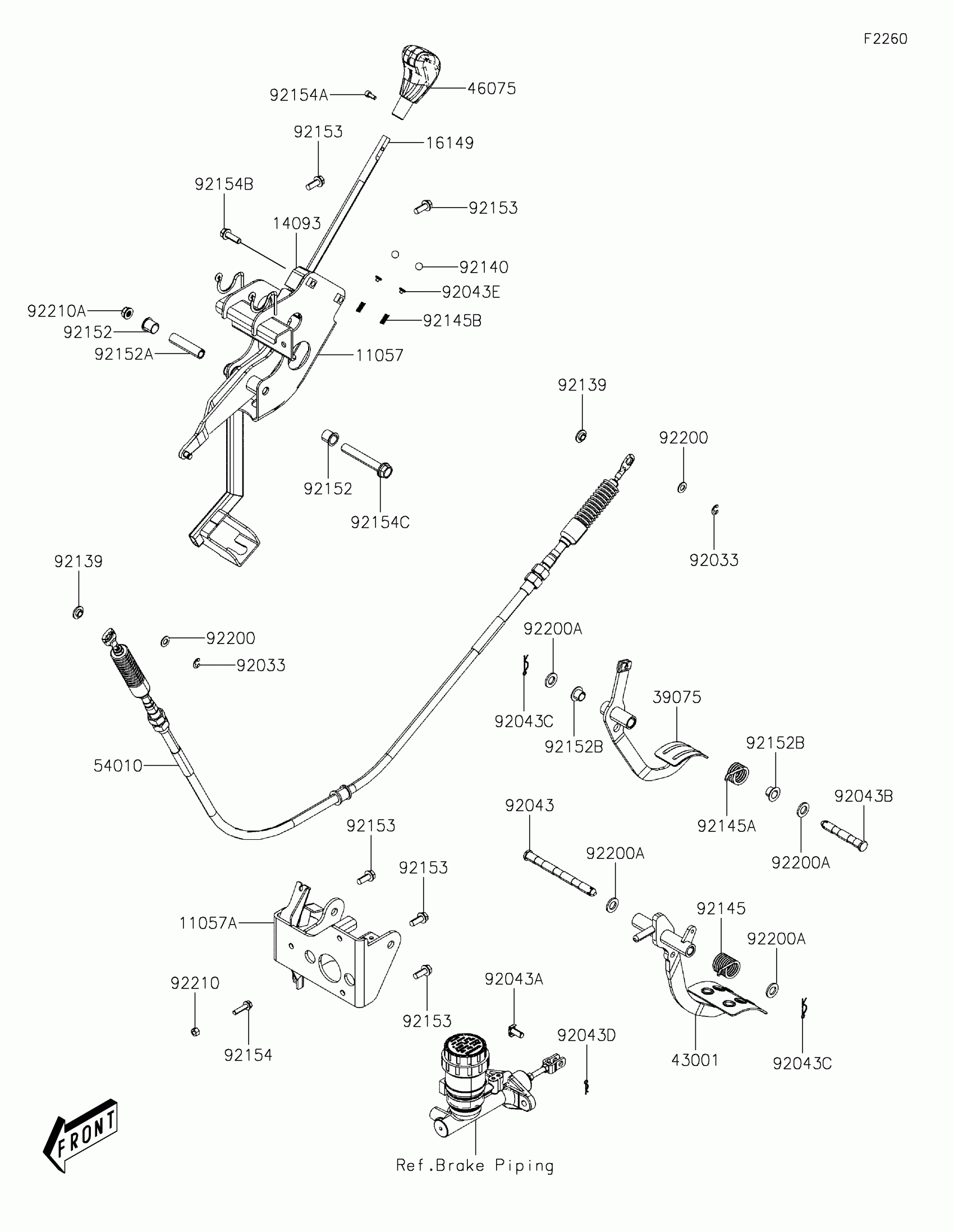

Kawasaki MULE PRO-MX™ EPS LE Brake Pedal/Throttle Lever Diagram
#
Description
Price
11057
BRACKET,SHIFT
11057-Y003
$96.78
11057A
BRACKET,BRAKE PEDAL
11057-Y008
$104.33
14093
COVER,SHIFT LEVER GUIDE
14093-Y007
$18.84
16149
BAR,SHIFT
16149-Y001
$185.39
39075
LEVER-THROTTLE
39075-Y001
$45.27
43001
LEVER-BRAKE,PEDAL
43001-Y002
$57.91
46075
GRIP
46075-0569
$22.85
54010
CABLE,SHIFT
54010-Y002
$247.30
92033
RING-SNAP
92033-Y041
$2.56
92043
PIN
92043-Y039
$25.21
92043A
PIN
92043-Y040
$9.14
92043B
PIN
92043-Y041
$22.09
92043C
PIN,LOCK,14MM
92043-Y044
$3.75
92043D
PIN,LOCK,8MM
92043-Y045
$3.75
92043E
PIN
92043-Y047
$5.66
92139
BUSHING,SHIFT
92139-Y013
$9.12
92140
BALL,STEEL 12
92140-Y001
$1.48
92145
SPRING,BRAKE PEDAL RETURN
92145-Y064
$11.10
92145A
SPRING,THROTTLE PEDAL RETURN
92145-Y065
$7.53
92145B
SPRING,SHIFT
92145-Y073
$4.03
92152
COLLAR,SHIFT PIVOT
92152-Y062
$1.57
92152A
COLLAR,SHIFT PIVOT
92152-Y063
$14.59
92152B
COLLAR
92152-Y065
$1.57
92153
BOLT,FLANGE,8X20
92153-Y033
$1.47
92154
BOLT,FLANGE,6X25
92154-Y130
$0.68
92154A
BOLT,SOCKET,5X12
92154-Y176
$3.75
92154B
BOLT,FLANGE,8X25
92154-Y195
$3.75
92154C
BOLT,FLANGE,12X80
92154-Y200
$10.28
92200
WASHER,8MM
92200-Y044
$0.96
92200A
WASHER,12MM
92200-Y091
$1.97
92210
NUT,HEX,6MM
92210-Y074
$2.60
92210A
NUT,FLANGE,12MM
92210-Y090
$8.81
