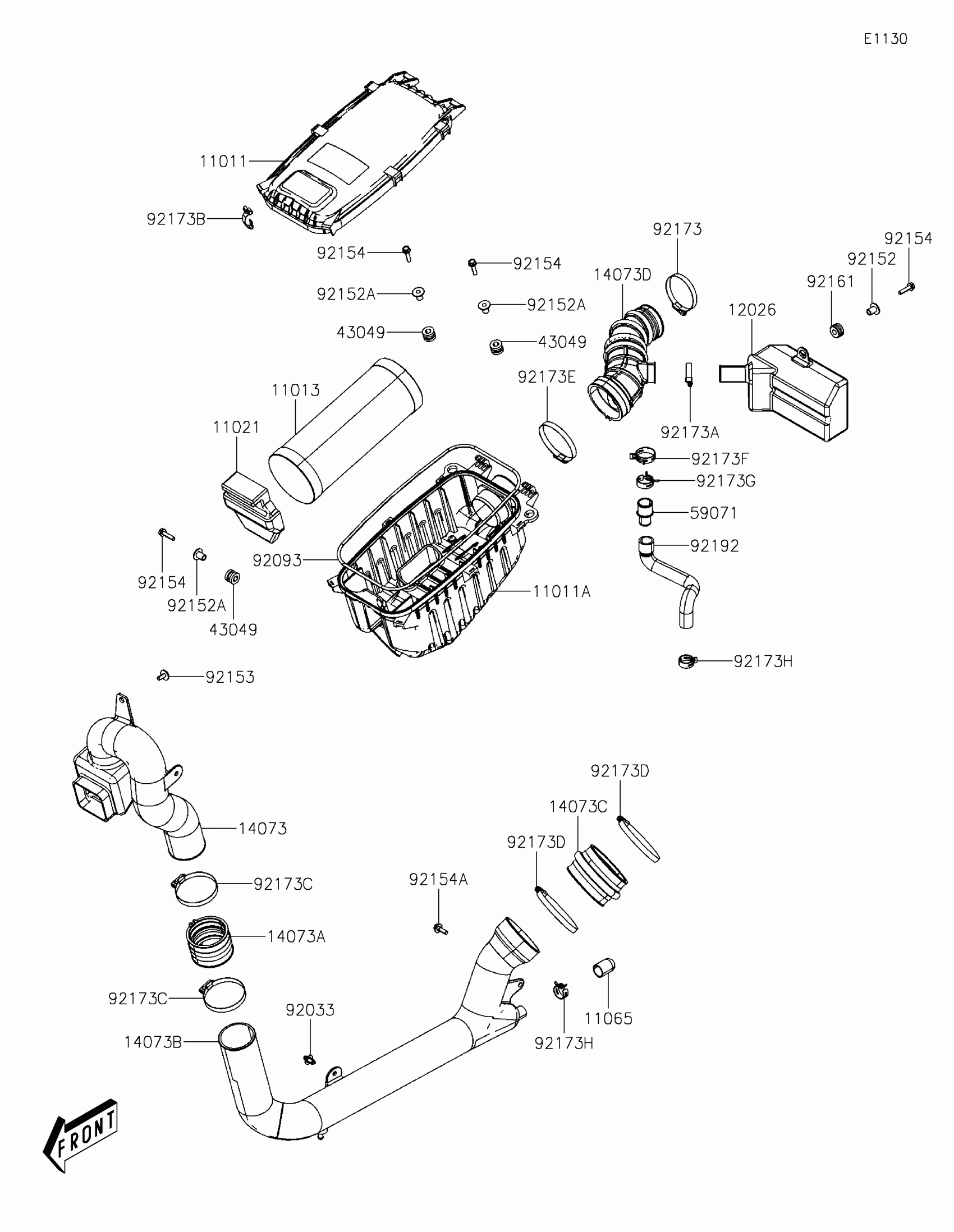

Kawasaki MULE PRO-MX™ EPS LE Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,UPP

11011-Y012

$51.04

11011A

CASE-AIR FILTER,LWR

11011-Y013

$132.21

11013

ELEMENT-AIR FILTER

11013-Y005

$98.85

11021

CASE-ASSY,AIR FILTER

11021-Y002

$14.63

11065

CAP,DRAIN

11065-Y036

$1.26

12026

CHAMBER,NOISE SILENCE

12026-Y002

$76.82

14073

DUCT,INTAKE

14073-Y018

$66.91

14073A

DUCT,JOINT

14073-Y019

$20.84

14073B

DUCT,INTAKE

14073-Y020

$69.46

14073C

DUCT,JOINT

14073-Y021

$28.48

14073D

DUCT,CHAMBER

14073-Y022

$86.17

43049

PACKING

43049-Y006

$16.19

59071

JOINT

59071-Y009

$7.04

92033

RING-SNAP

92033-Y033

$2.37

92093

SEAL,AIR FILTER

92093-Y031

$9.99

92152

COLLAR

92152-Y013

$1.09

92152A

COLLAR

92152-Y056

$19.58

92153

BOLT,6X16

92153-Y018

$1.30

92154

BOLT,FLANGE,6X25

92154-Y130

$0.68

92154A

BOLT,FLANGE,6MM

92154-Y180

$5.28

92161

DAMPER

92161-Y046

$3.01

92173

CLAMP

92173-Y030

$9.56

92173A

CLAMP

92173-Y031

$5.50

92173B

CLAMP

92173-Y063

$4.67

92173C

CLAMP

92173-Y065

$7.06

92173D

CLAMP

92173-Y066

$13.91

92173E

CLAMP

92173-Y074

$8.60

92173F

CLAMP

92173-Y079

$9.72

92173G

CLAMP

92173-Y080

$8.60

92173H

CLAMP

92173-Y082

$8.60

92192

TUBE,BREATHER

92192-Y068

$17.35
