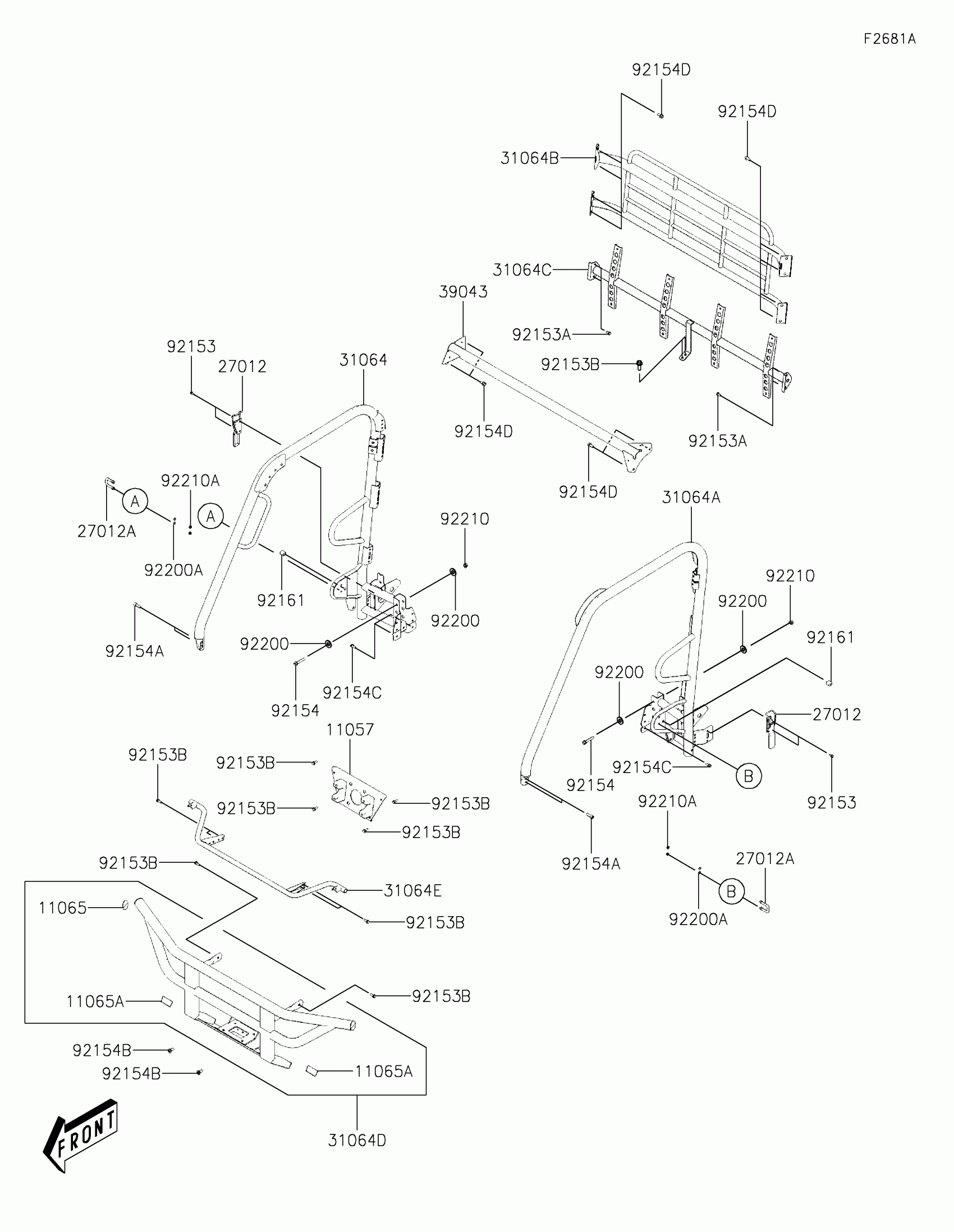

Kawasaki MULE PRO-MX™ EPS Guards/Cab Frame(BLF) Diagram

Description

Price

11057

BRACKET,STABILIZER

11057-Y015

$199.96

11065

CAP,FR BUMPER,END

11065-Y043

$6.00

11065A

CAP,FR BUMPER

11065-Y044

$4.42

27012

HOOK,SIDE

27012-Y005

$35.33

27012A

HOOK,DOOR

27012-Y007

$6.76

31064

PIPE-COMP,ROOF,RH

31064-Y013

$317.08

31064A

PIPE-COMP,ROOF,LH

31064-Y014

$317.08

31064B

PIPE-COMP,REAR,UPP

31064-Y015

$281.22

31064C

PIPE-COMP,REAR,LWR

31064-Y016

$331.06

31064D

PIPE-COMP,FR BUMPER

31064-Y017

$327.21

31064E

PIPE-COMP,FR COVER

31064-Y018

$142.99

39043

CROSSMEMBER-COMP,ROOF

39043-Y002

$110.03

92153

BOLT,FLANGE,6X16

92153-Y025

$0.76

92153A

BOLT,FLANGE,8X16

92153-Y032

$1.47

92153B

BOLT,FLANGE,8X20

92153-Y033

$1.47

92154

BOLT,FLANGE,10X60

92154-Y091

$3.56

92154A

BOLT,SOCKET,10X28

92154-Y098

$0.41

92154B

BOLT,10X23

92154-Y178

$9.02

92154C

BOLT,FLANGE,8X25

92154-Y195

$3.75

92154D

BOLT,FLANGE,10X20

92154-Y197

$3.56

92161

DAMPER,ROPS

92161-Y050

$3.49

92200

WASHER,10MM

92200-Y020

$0.76

92200A

WASHER,6MM

92200-Y106

$2.53

92210

NUT,10MM

92210-Y009

$3.12

92210A

NUT,6MM

92210-Y087

$3.75
