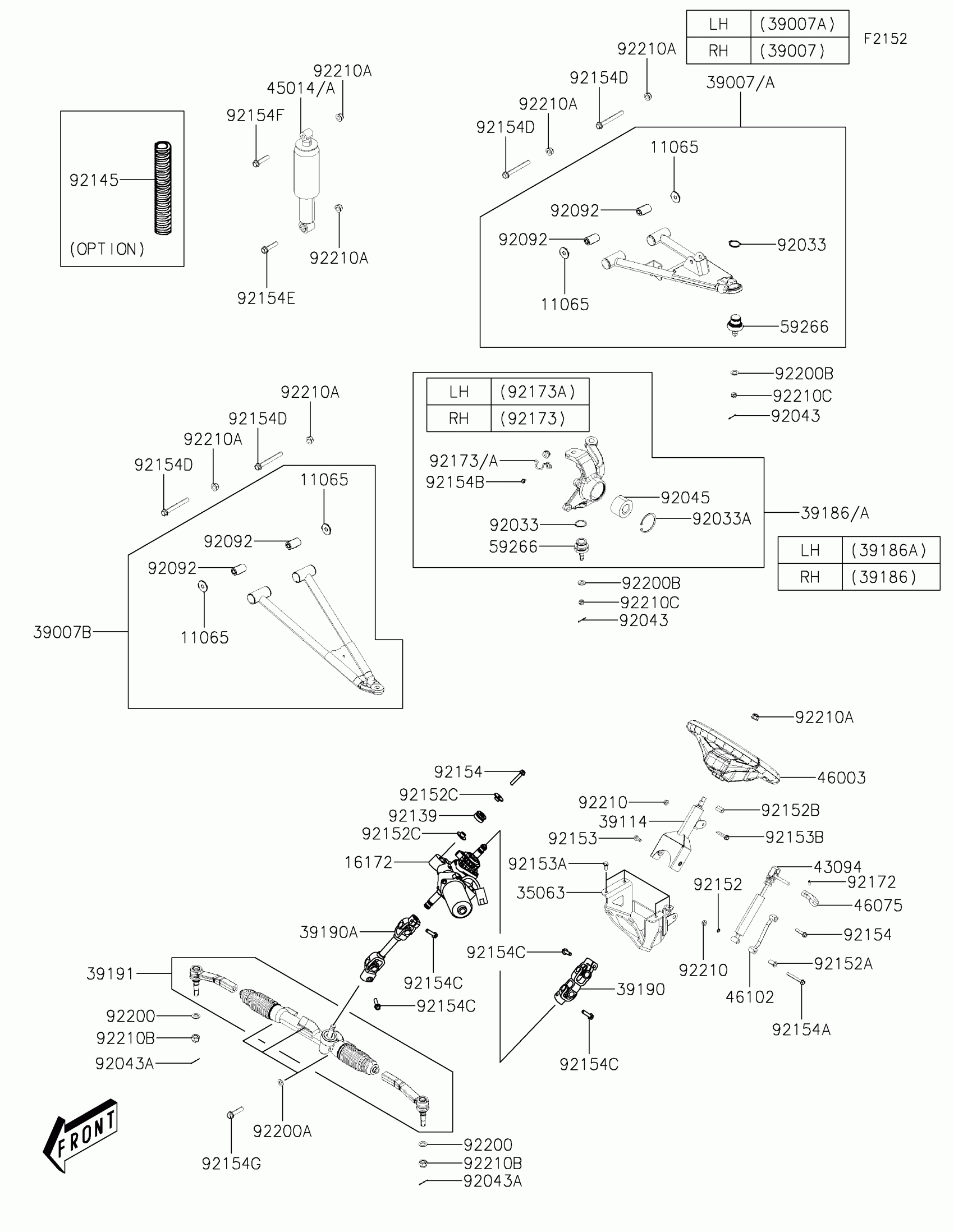

Kawasaki MULE PRO-MX™ EPS Front Suspension Diagram

#

Description
Price

11065

CAP,ARM

11065-Y039

$1.76

16172

ACTUATOR,EPS

16172-0557

$1,859.76

35063

STAY,EPS

35063-Y043

$163.91

39007

ARM-SUSP,FR,UPP,RH

39007-Y011

$209.40

39007A

ARM-SUSP,FR,UPP,LH

39007-Y012

$209.40

39007B

ARM-SUSP,FR,LWR

39007-Y013

$120.07

39114

SHAFT-COMP-STRG

39114-Y003

$135.62

39186

KNUCKLE,ASSY,FR,RH

39186-Y005

$405.05

39186A

KNUCKLE,ASSY,FR,LH

39186-Y007

$327.34

39190

SHAFT-ASSY-STEERING,EPS,UPP

39190-Y002

$165.17

39190A

SHAFT-ASSY-STEERING,EPS,LWR

39190-Y003

$141.00

39191

GEAR-ASSY-STEERING

39191-Y001

$435.89

43094

ADJUSTER,HANDLE

43094-Y001

$126.62

46003

HANDLE

46003-Y004

$163.56

46075

GRIP,ADJUSTER

46075-Y009

$14.15

46102

ROD,STEERING BRACKET

46102-Y002

$54.14

59266

JOINT-BALL

59266-Y005

$65.60

92033

RING-SNAP,32MM

92033-Y036

$4.97

92033A

RING-SNAP,60MM

92033-Y037

$9.41

92043

PIN,3X25

92043-Y009

$0.78

92043A

PIN,3X25

92043-Y011

$0.78

92045

BEARING-BALL,30X60X37

92045-0905

$56.43

92092

BUSHING-RUBBER

92092-Y005

$31.86

92139

BUSHING

92139-Y015

$2.49

92145

SPRING,SHOCK,FR

92145-Y071

$93.97

92152

COLLAR

92152-Y067

$2.73

92152A

COLLAR

92152-Y068

$12.83

92152B

COLLAR

92152-Y071

$8.39

92152C

COLLAR

92152-Y073

$8.39

92153

BOLT,FLANGE,8X16

92153-Y032

$1.32

92153A

BOLT,FLANGE,8X20

92153-Y033

$1.32

92153B

BOLT,FLANGE,8X40

92153-Y069

$2.07

92154

BOLT,FLANGE,8X35

92154-Y021

$1.92

92154A

BOLT,FLANGE,8X65

92154-Y120

$2.37

92154B

BOLT,FLANGE,6X6

92154-Y193

$2.37

92154C

BOLT,FLANGE,8X30

92154-Y198

Unavailable

92154D

BOLT,FLANGE,12X100

92154-Y202

$12.20

92154E

BOLT,FLANGE,12X60

92154-Y203

$9.41

92154F

BOLT,FLANGE,12X55

92154-Y204

$9.41

92154G

BOLT,FLANGE,12X50

92154-Y205

$9.03

92172

SCREW,4X10

92172-Y071

$1.93

92173

CLAMP,KNUCKLE,FR,RH

92173-Y069

$4.29

92173A

CLAMP,KNUCKLE,FR,LH

92173-Y071

$3.69

92200

WASHER,14X26X2.3

92200-Y045

$1.92

92200A

WASHER,12MM

92200-Y091

$1.68

92200B

WASHER,SPRING

92200-Y095

$4.30

92210

NUT,8MM

92210-Y076

$0.73

92210A

NUT,FLANGE,12MM

92210-Y090

$8.58

92210B

NUT,14MM

92210-Y096

$9.64

92210C

NUT,12MM

92210-Y097

$8.39
