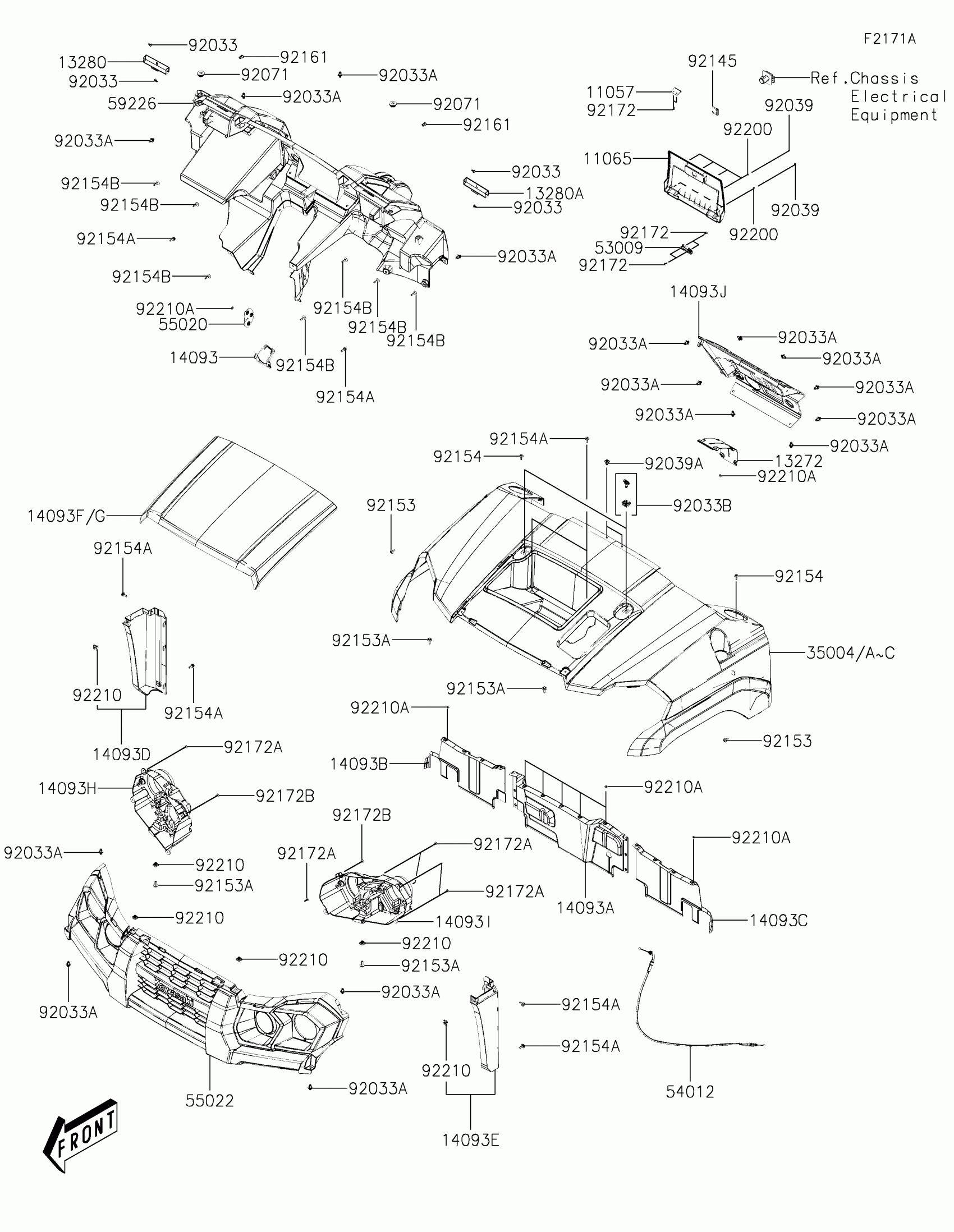

Kawasaki MULE PRO-MX™ EPS Front Fender(s)(BLF) Diagram

#

Description
Price

11057

BRACKET,COVER

11057-Y017

$3.61

11065

CAP,GLOVE BOX,S.BLACK

11065-Y040-933

$26.26

13272

PLATE,SHIFT LEVER

13272-Y031

$12.51

13280

HOLDER,CUP,RH,S.BLACK

13280-Y021-933

$3.09

13280A

HOLDER,CUP,LH,S.BLACK

13280-Y022-933

$3.09

14093

COVER,CONTROL PANEL,S.BLACK

14093-Y011-933

$3.60

14093A

COVER,SPLASH GUARD

14093-Y012

$41.33

14093B

COVER,SPLASH GUARD,RH

14093-Y013

$22.78

14093C

COVER,SPLASH GUARD,LH

14093-Y014

$20.98

14093D

COVER,SIDE PANEL,RH,S.BLACK

14093-Y015-933

$28.82

14093E

COVER,SIDE PANEL,LH,S.BLACK

14093-Y016-933

$28.82

14093F

COVER,HOOD,B.WHITE

14093-Y019-932

$155.13

14093G

COVER,HOOD,T.GREEN

14093-Y019-973

$155.13

14093H

COVER,HEAD LIGHT,RH,S.BLACK

14093-Y020-933

$36.30

14093I

COVER,HEAD LIGHT,LH,S.BLACK

14093-Y021-933

$36.30

14093J

COVER,CNT,S.BLACK

14093-Y053-933

$56.45

53009

HINGE,LID

53009-Y001

$14.22

54012

CABLE-THROTTLE

54012-Y008

$47.26

55020

GUARD,CONTROL PANEL

55020-Y012

$5.50

55022

COVER-HEAD LAMP,S.BLACK

55022-Y003-933

$140.76

59226

PANEL-CONTROL,S.BLACK

59226-Y001-933

$150.37

92033

RIVET

92033-Y032

$2.68

92033A

RING-SNAP

92033-Y033

$2.37

92033B

RING-SNAP

92033-Y034

$8.60

92039

RIVET,3.2X9.8

92039-Y001

$0.76

92039A

RIVET

92039-Y006

$3.67

92071

GROMMET

92071-Y005

$3.01

92145

SPRING,SET

92145-Y067

$6.00

92153

BOLT,5X16

92153-Y013

$0.76

92153A

BOLT,6X20

92153-Y019

$1.30

92154

BOLT,5X16

92154-Y030

$0.96

92154A

BOLT,6X18

92154-Y177

$5.66

92154B

BOLT,5X22

92154-Y186

$2.37

92161

DAMPER

92161-Y054

$5.66

92172

SCREW,4X12

92172-Y019

$1.02

92172A

SCREW,TAPPING,5X16

92172-Y020

$1.63

92172B

SCREW,TAPPING,5X12

92172-Y038

$1.74

92200

WASHER,3MM

92200-Y017

$0.76

92210

NUT,6MM

92210-Y011

$1.40

92210A

NUT

92210-Y080

$2.37
